2T6/2T7/2T8/2T9-2
2-2-5
(4) Clutches and others

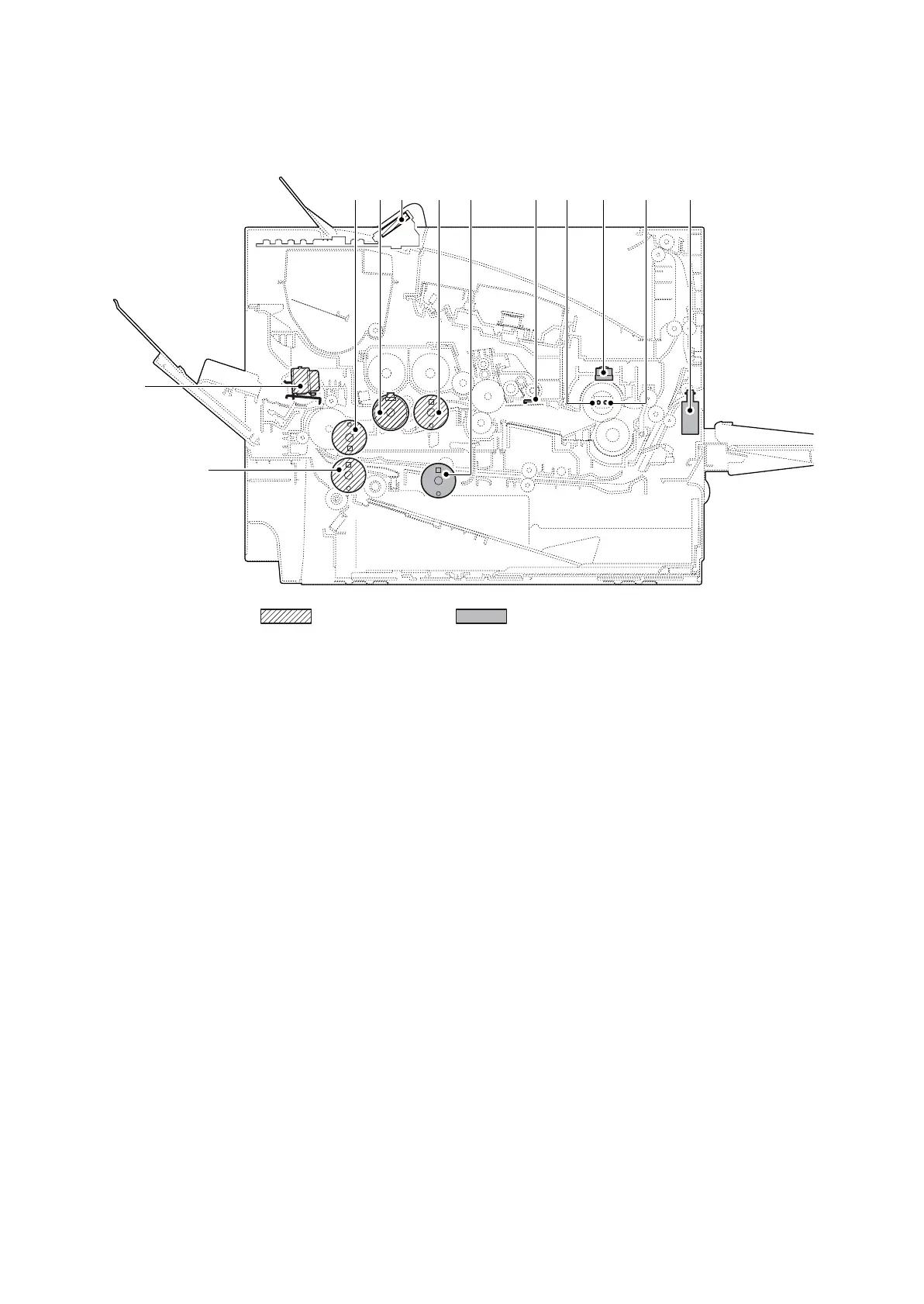

Figure 2-2-4 Clutches and others
1. Paper feed clutch (PFCL) ..................... Primary paper feed from cassette.
2. Registration clutch (RCL)...................... Controls the secondary paper feed.
3. Developer clutch (DEVSCL) ................. Controls the drive of the developer.
4. Conveying clutch (PCCL)...................... Controls the paper conveying.
5. Duplex clutch (DUCL) ........................... Controls the drive of the duplex feed roller.
6. MP solenoid (MPSOL) .......................... Controls the MP bottom plate.
7. Feedshift solenoid (FSSOL) *1 ............. Operates the feedshift guide.
8. LCD (LCD) ............................................ LCD display. Displays an operating state.
9. Cleaning lamp (CL) ............................... Eliminates the residual electrostatic charge on the drum.
10. Fuser heater 1 (FUH1).......................... Heats the heat roller.
11. Fuser heater 2 (FUH2).......................... Heats the heat roller.
12. Fuser thermostat 1 (FUTS1) ................. Prevents overheating of the heat roller.
13. Fuser thermostat 2 (FUTS2) ................. Prevents overheating of the heat roller.
*1: 60/55/50 ppm model only
1
6
3 12,13 752 84 11109
Machine right Machine inside
To Next Page
