2T6/2T7/2T8/2T9
2-1-10
2-1-7 Eject/Feedshift section
The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the
fuser section to the facedown tray, the faceup tray (60/50/45 ppm model only) or the duplex conveying sec-
tion.

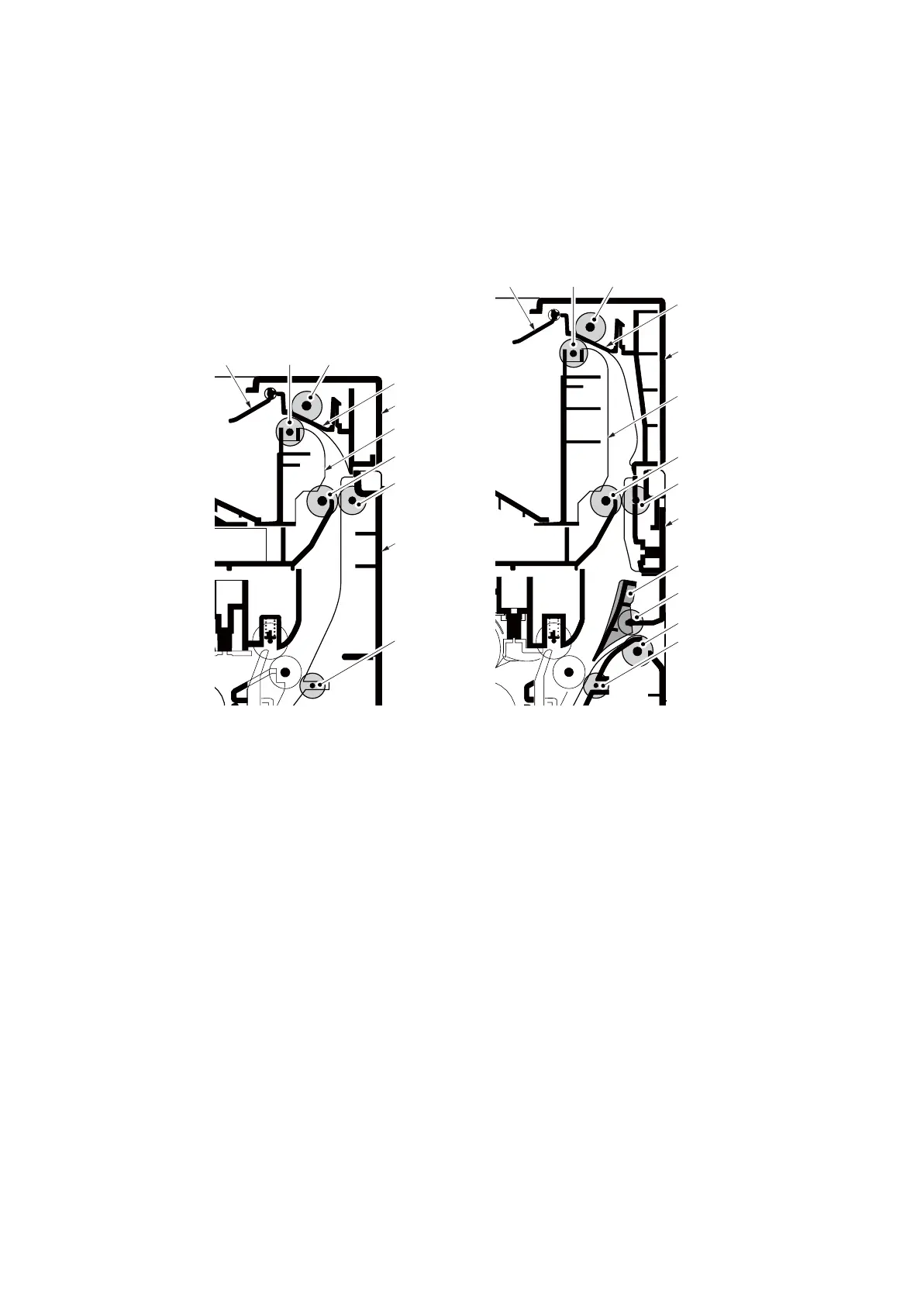

Figure 2-1-19 Eject/Feedshift section
*1: 60/55/50 ppm model only
6
7
4
5
10
8
3
2
12
11
13
1
3
21
9
6
7
4
5
10
8
9
(60/55/50 ppm model)(45 ppm model)
1. Upper eject roller
2. Upper eject pulley
3. Actuator
(Eject full sensor (EFS))
4. Lower eject roller
5. Lower eject pulley
6. Vertical guide
7. Paper exit guide
8. Top cover
9. DU feed pulley
10. Rear cover
11. Faceup roller *1
12. Faceup pulley *1
13. Feedshift guide *1
