3NY
1-4-2
1-4-2 Assembly and disassembly
(1) Removing the conveying roller, paper feed roller and pickup roller
Procedure
1. Remove the cassette from the paper
feeder.
2. While pressing the lock lever and then
slide the roller holder.
3. Remove the paper feed roller assembly.
4. Check or replace the paper feed roller
or the pickup roller and refit all the
removed parts.

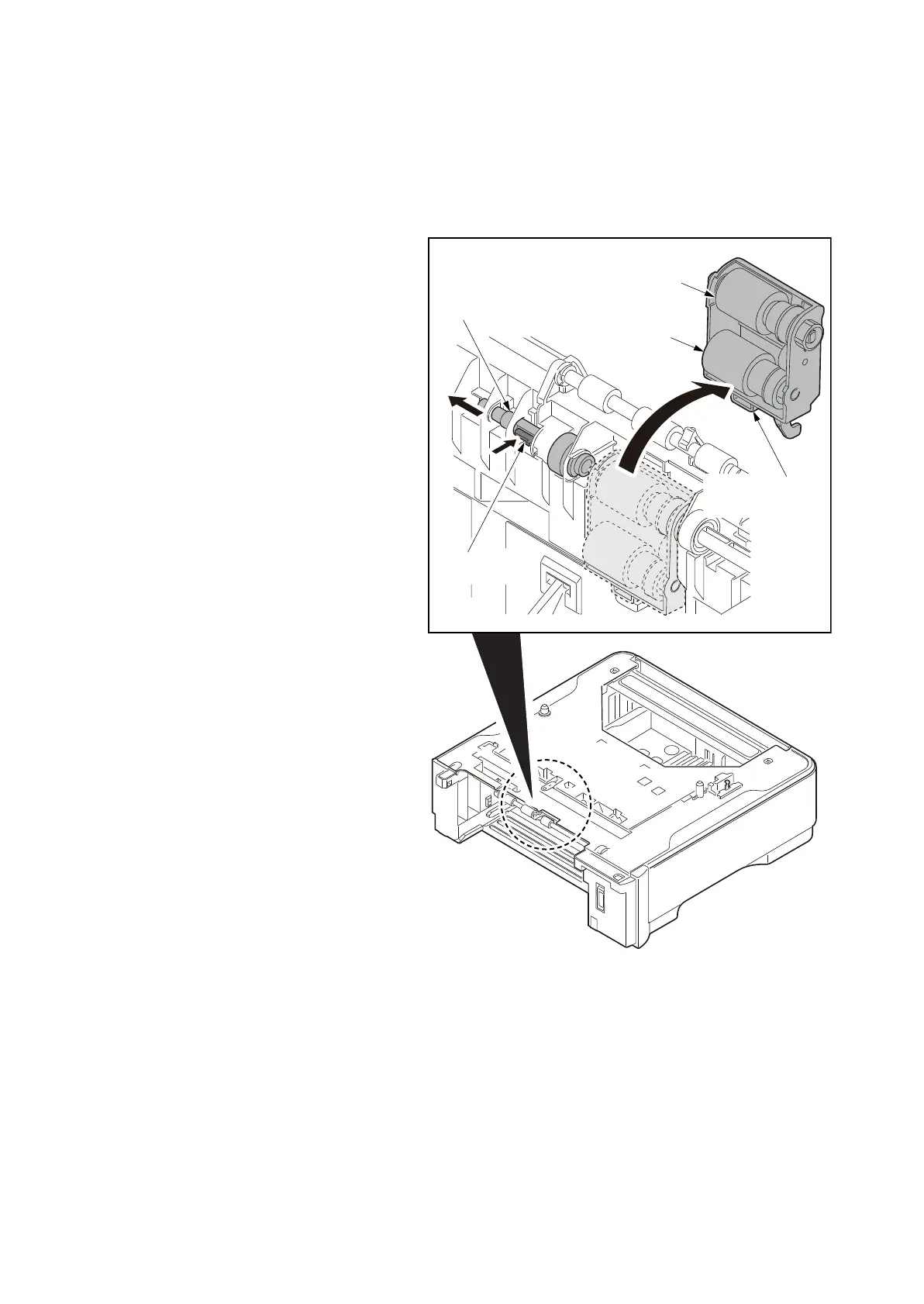

Figure 1-4-1
Lock lever
Pickup roller
Paper feed roller
Roller holder
Paper feed roller
assembly
To Next Page
