2T6/2T7/2T8/2T9
1-5-25
(4) Detaching and refitting the power source PWB
Procedure
1. Remove the top cover assembly.
(See page 1-5-3)
2. Remove the right upper cover.
(See page 1-5-4)
3. Remove the right lower cover.
(See page 1-5-4)
4. Remove the main PWB.
(See page 1-5-22)
5. Remove the wire guide.
(See page 1-5-22)
6. Remove three screws and then remove
the controller box cover.

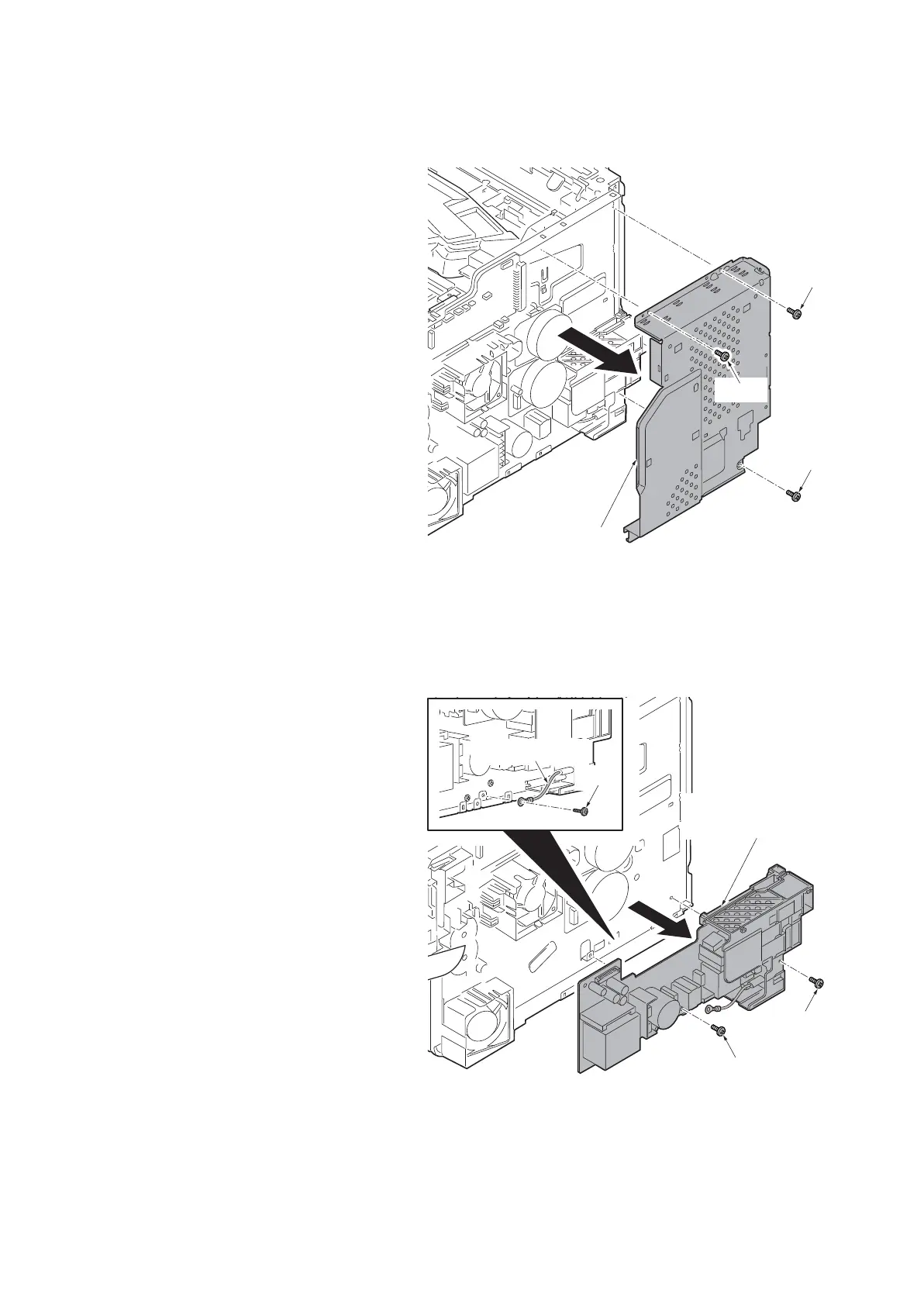

Figure 1-5-39
7. Remove the grounding wire by remov-
ing the screw.
8. Remove two screws and then remove
the power source PWB assembly.
9. Check or replace the power source
PWB and refit all the removed parts.
Figure 1-5-40
Controller
box cover
Screw
Screw
Screw
Power source PWB
assembly
Screw
Screw
Screw
Grounding wire
To Next Page
