2T6/2T7/2T8/2T9-2
2-2-4
(3) Motors

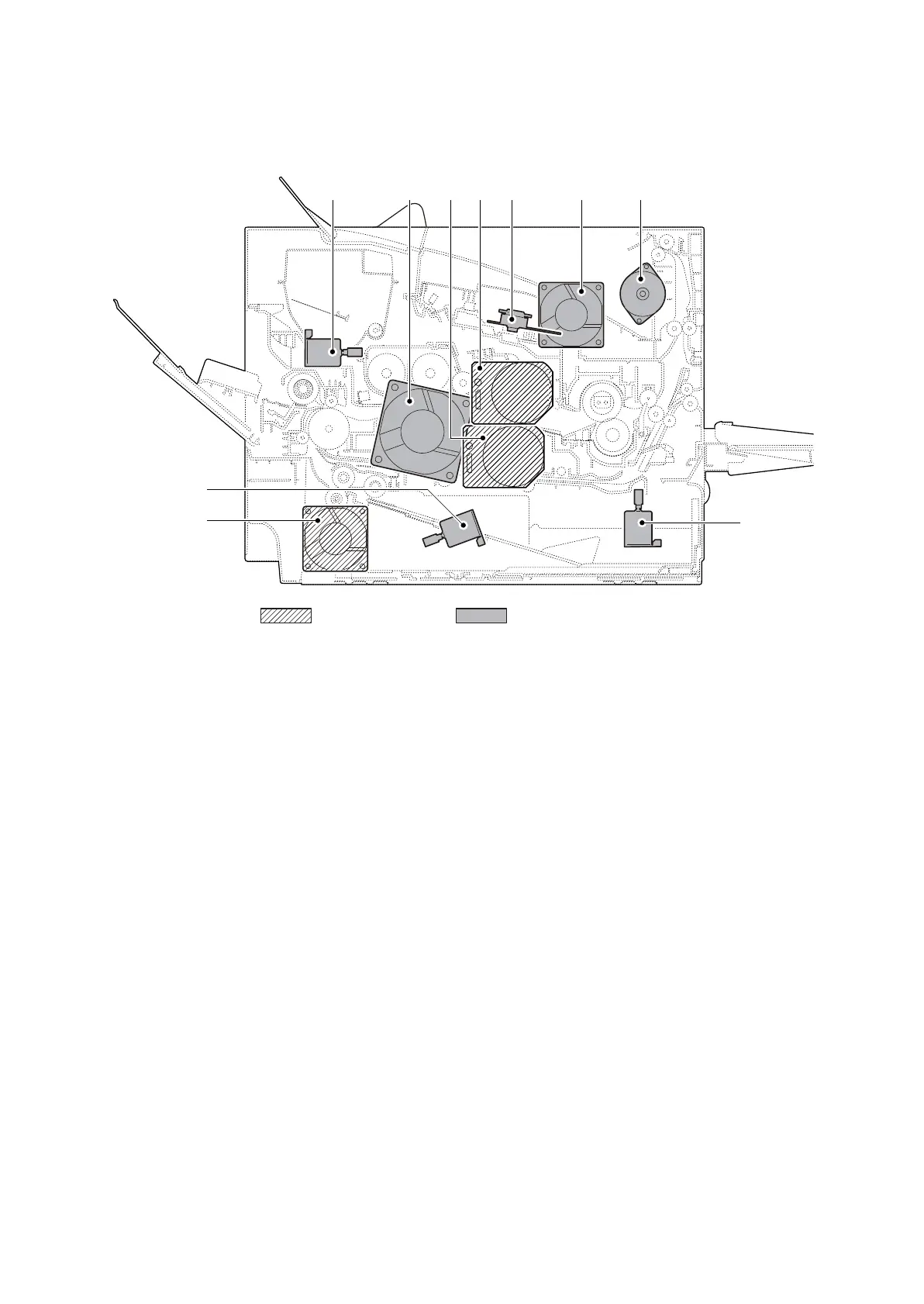

Figure 2-2-3 Motors
1. Main motor (MM)................................... Drives the paper feed section and conveying section.
2. Drum motor (DRM) *1 ........................... Drives the drum unit and transfer roller.
3. Eject motor (EM) ................................... Drives the eject section.
4. Polygon motor (PM) ............................. Drives the polygon mirror.
5. Fuser pressure release motor (FUPRM) *1Drives the change mechanism of fixing pressure in fuser unit.
6. Lift motor (LM) *1 .................................. Operates the bottom plate in the cassette.
7. Toner motor (TM) .................................. Replenishes toner to the developer unit.
8. LSU fan motor (LSUFM) ....................... Cools the LSU unit.
9. Power source fan motor (PSFM) .......... Cools the power source PWB.
10. Developer fan motor (DEVFM) ............. Cools the developer unit.
*1: 60/55/50 ppm model only
