2T6/2T7/2T8/2T9
1-5-13
1-5-4 Developer section
(1) Detaching and refitting the developer unit
Procedure

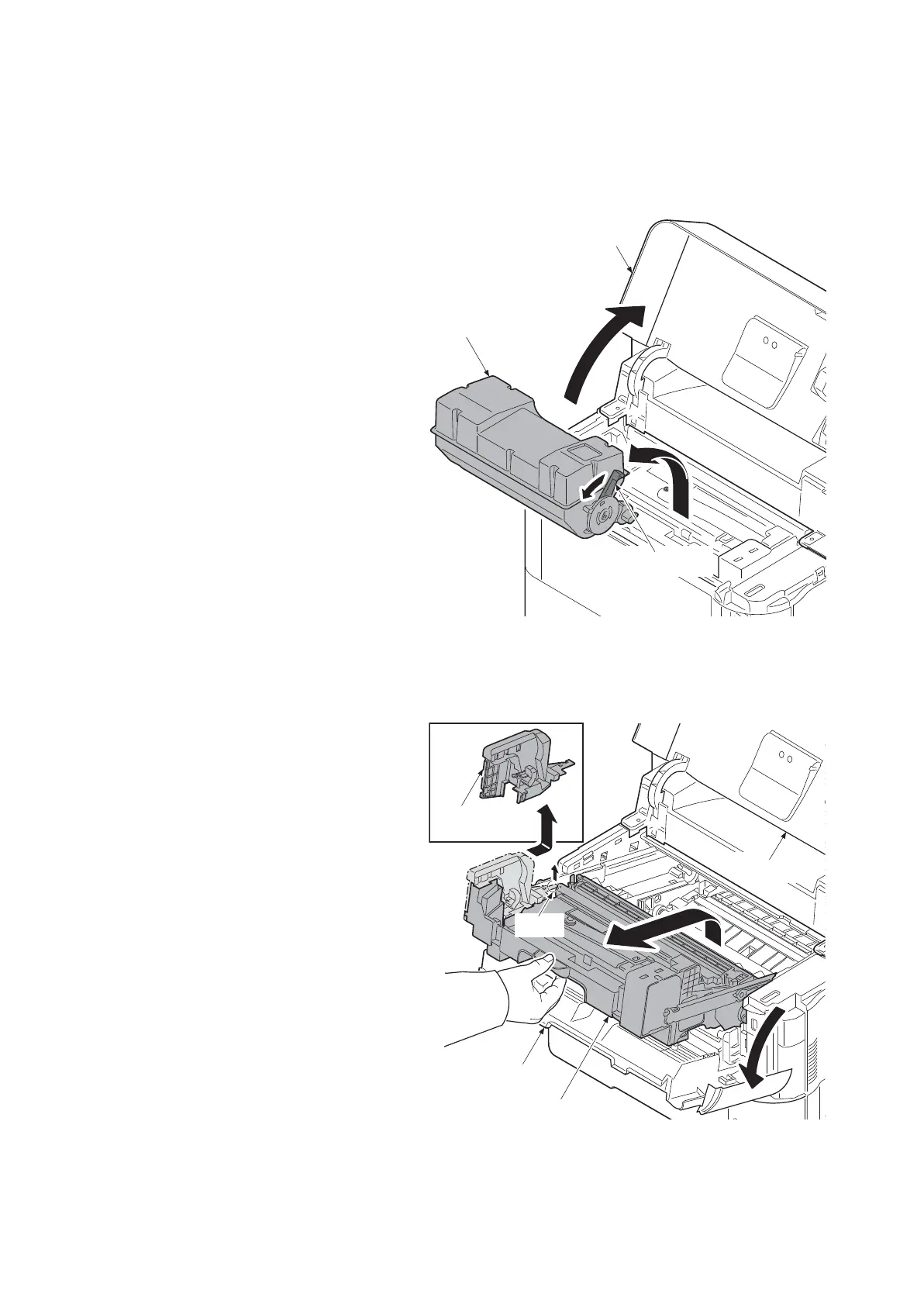

1. Open the top cover.
2. Release the lock lever by rotating and
then remove the toner container.
Figure 1-5-20
3. Open the front cover.
4. Pull the imaging unit forward.
5. Release the hook and then remove the
container guide by sliding backwards.
Figure 1-5-21
Top cover
Toner container
Lock lever
Hook
Imaging unit
Front cover
Top cover
Container
guide
To Next Page
