2T6/2T7/2T8/2T9
1-2-8

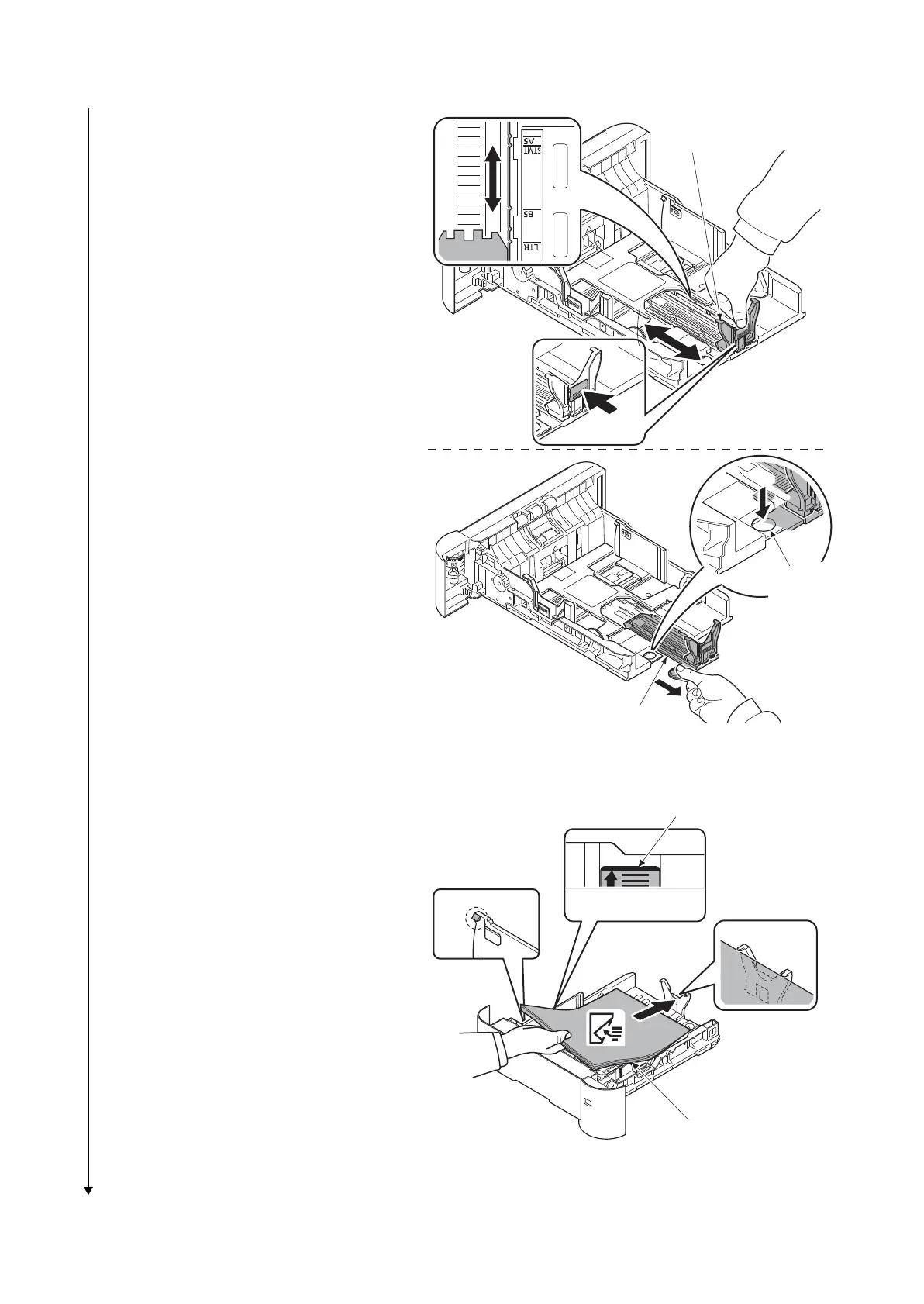

5. Push the lock lever and slide the paper
length guide to the desired paper size.
If you are going to set paper that is lon-
ger than A4, pull out the extension cas-
settes pushing the lock button one by
one and adjust them to the desired
paper size.
Figure 1-2-13
6. Fan the media (paper/transparencies),
then tap it on a level surface to avoid
media jams or skewed printing.
7. Slide the paper into the paper cassette.
8. Insert the cassette into the slot in the
printer. Push it straight in as far as it will
go.
Figure 1-2-14
(Legal/Folio)
Paper length guide
Extension cassette
Lock button
Paper
Paper maximum line
To Next Page
