[How to replace the parts]
Detach the tip of Line probe by turning it counter-clockwise. Insert the metal
tip you want to use into the hexagon hole, and turn the tip part of the probe
clockwise to tighten firmly.
Note: Molded standard metal parts should be used in CAT III or IV
environment. Rated categories are written with the model name of each
parts. Always use the metal tips rated for the measurement category.

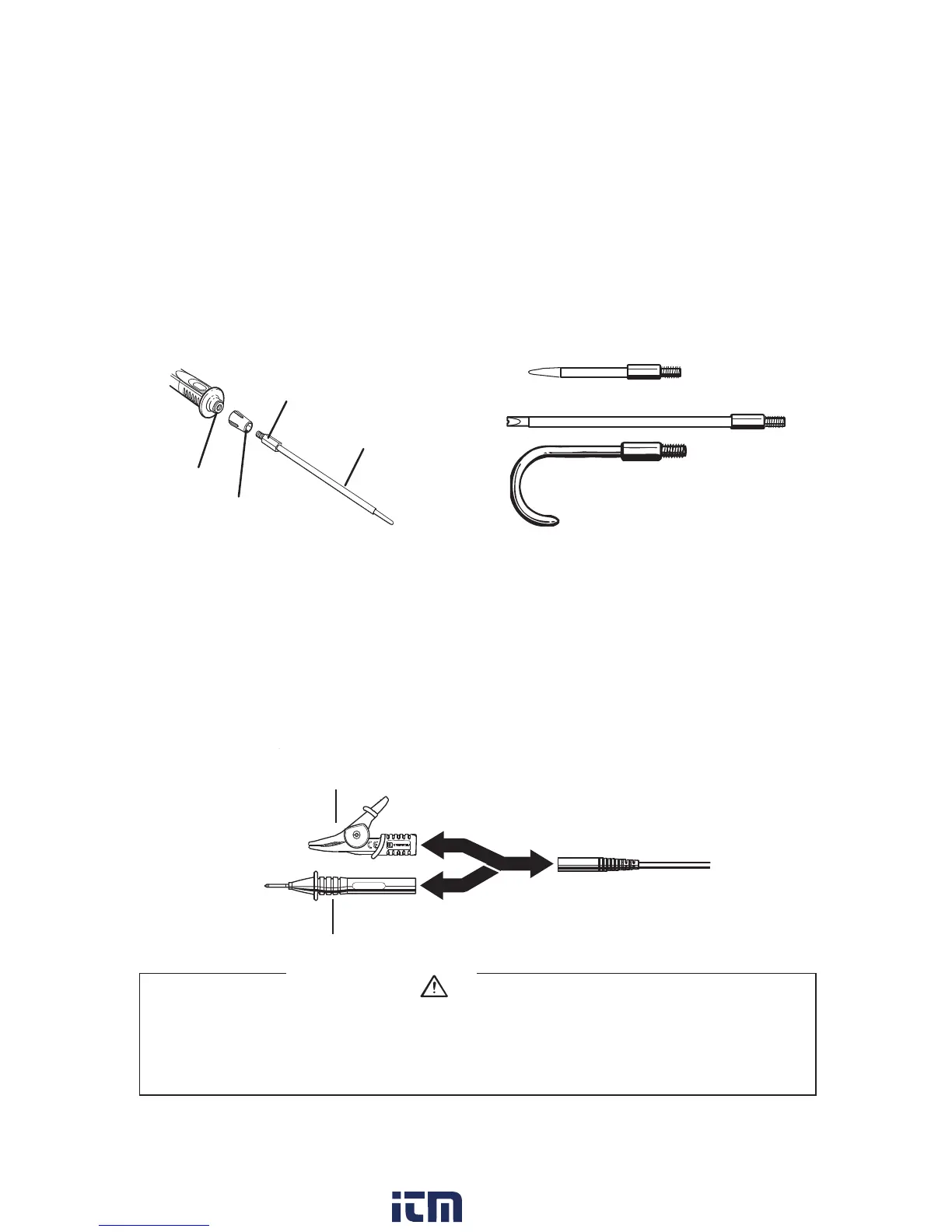

Fig. 6-1
(2) For MODEL7244A
Either of the following adapters can be attached to MODEL7244A.
1. Alligator clip
2. Flat test bar
[How to attach]
Firmly insert and connect the adapter to the end of the cord (with banana
plugs at both ends).
Fig. 6-2
DANGER
● To avoid getting electrical shocks, ensure that test leads are
disconnected from the instrument when replacing the metal tip or
adapter for test leads.
MODEL8017(CAT II)
Banana plugs, both ends
MODEL8072(CAT II)
MODEL8016 (CAT I)
Female
screw
Hexagon hole
Male screw
Metal tip
