9-2 Simplified measurement
Use this method when the auxiliary earth spike cannot be stuck. In this
method, an existing earth electrode with a low earth resistance, such as a
metal water pipe, a common earth of a commercial power supply and an
earth terminal of a building, can be used with two-pole method (E and P).

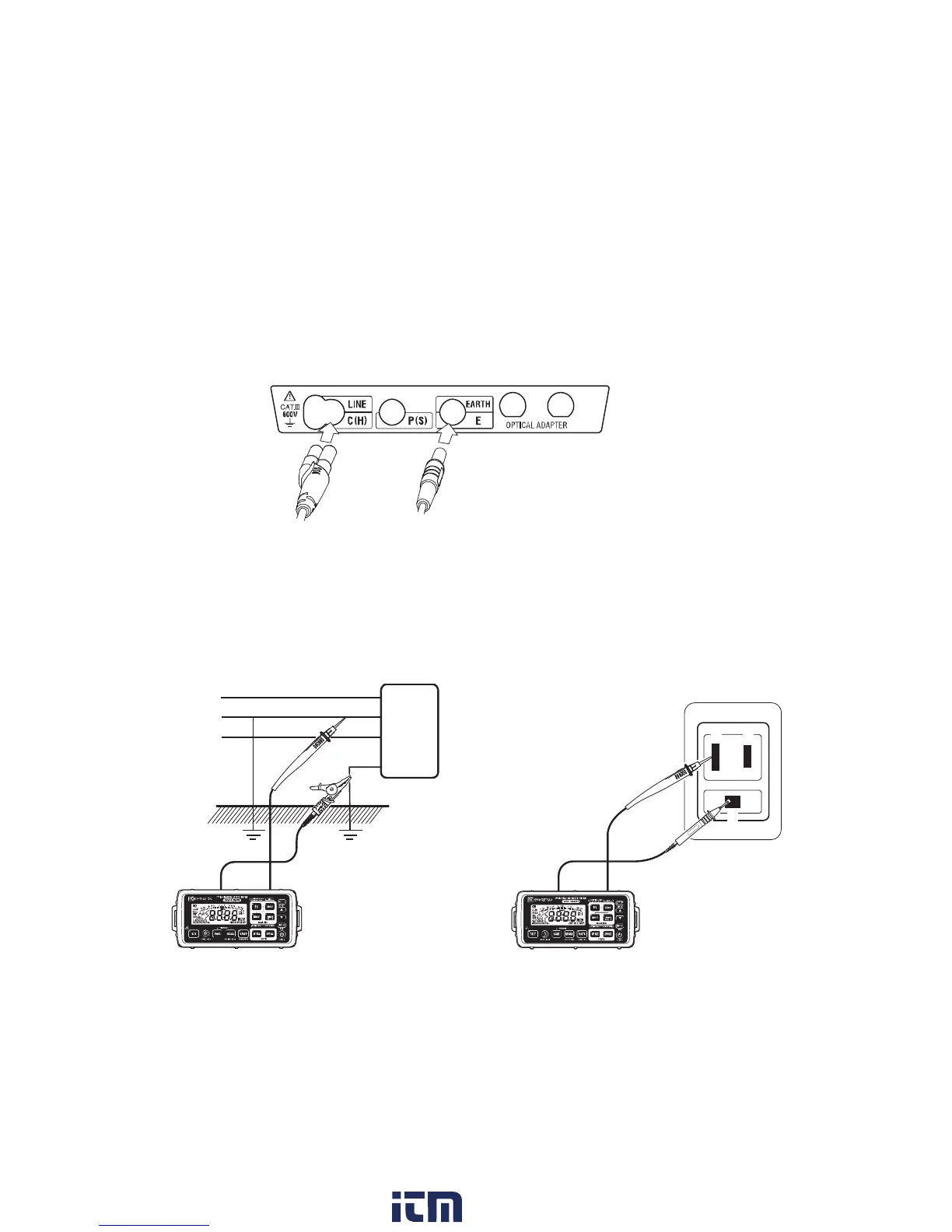

(1) Connect the test leads as Fig. 9-2 shows.
MODEL7196A to LINE (C) terminal, and MODEL7244A to EARTH (E)
terminal
Fig. 9-2
(2) Wiring
Make connection as shown in the following figure.
Connection using common earth Connection using socket outlet
of commercial power supply
Fig. 9-3 Fig. 9-4
Red
Black
E Black C Red
Power
Load
re Rx
PN
E
E Black C Red
