14. Data communication function
Data transfer to PC is possible by using our optical adapter MODEL8212
USB.
14-1 How to transfer data
(1) Install “KEW Report” first before trying to transfer data to PC.
(2) Connect the plug of MODEL8212 USB to the USB port on the PC.

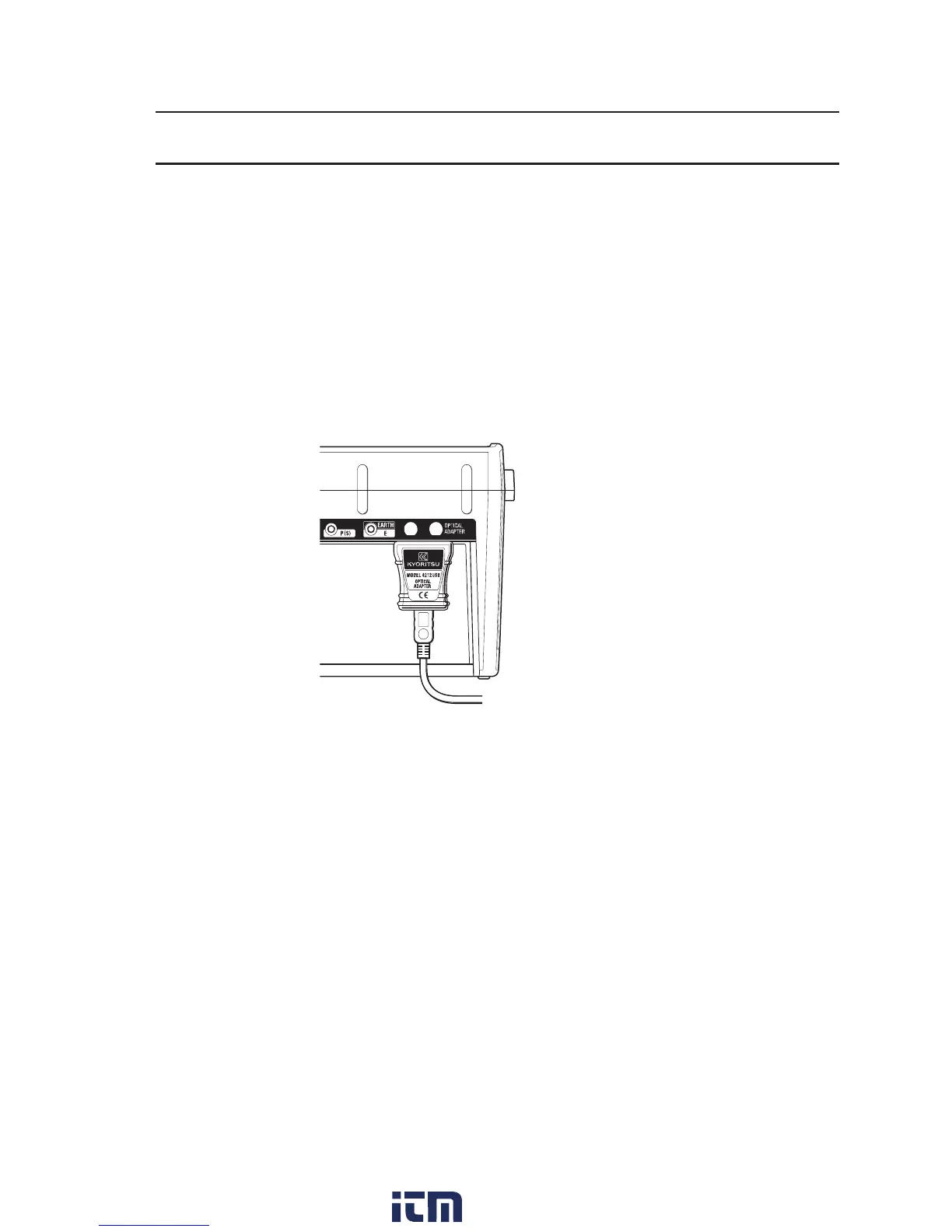

(3) Disconnect the test leads from the instrument, and then connect
MODEL8212 USB as follows.
(4) Power on the instrument. * Selecting any function is just all right.
(5) Run “KEW Report” and click Download command. Then the data will be
transferred from the instrument to PC.
For further details, please refer to the instruction manual for 8212USB
and HELP for KEW Report.
