L-Acoustics LA4X User Manual

Installation
Speaker panel

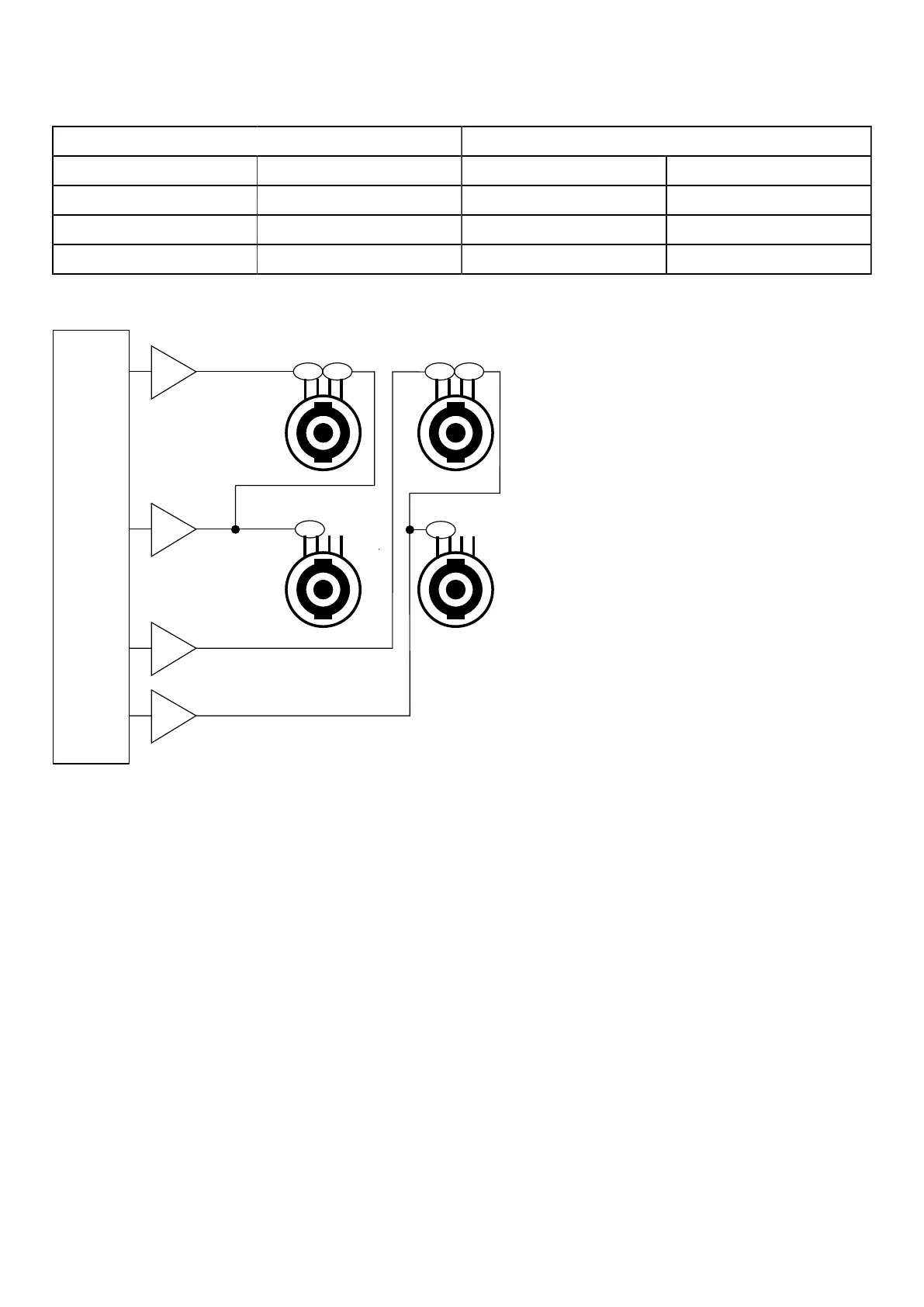

The four 4-point speakON connectors on the rear panel are for loudspeaker connection. They are wired as follows:
left speakON connector right speakON connector
Pin 1+ Out 1+ Pin 1+ Out 3+
Pin 1 - Out 1 - Pin 1 - Out 3 -
Pin 2+ Out 2+ Pin 2+ Out 4+
Pin 2 - Out 2 - Pin 2 - Out 4 -
output audio paths
1+ 1- 2+ 2-
1+ 1- 2+ 2-
top left
bottom left
DSP
1+ 1- 2+ 2-
top right
1+ 1- 2+ 2-
bottom right
OUT 1
OUT 2
OUT 3
OUT 4
22 LA4X owner's manual (EN) version 14.1
