Be careful not to kink the water supply tube when the washer is placed into its
final location. If kinking occurs because of limited space between the back of the
washer and the wall behind the counter, it may be necessary to use an elbow
fitting at the washer’s valve connection.
Pure Water Connection
A pure water supply may be connected to the Glassware Washer if pure water rinse(s)
are required.
To prevent valve clogging, thoroughly flush the pure water lines from the supply
source prior to washer connection. The pure water inlet valve is located on the
back of the washer base. The back panel of freestanding models must be
removed to access the valve.
The washer pure water inlet valve is equipped with a male ¾-11 ½ GHT fitting.
Connect the pure water supply coming from the customer-supplied shut off
valve using an appliance style hose with ¾-11 ½ GHT fitting and ¼” minimum
inside diameter. See Fig. 4-3.
On undercounter installations, an extra 3’ of service loop is recommended for the
supply hose to allow the washer to be slid in or out of its operating position. Be
careful not to kink the water supply tube when the washer is placed into its final
location. If kinking occurs because of limited space between the back of the
washer and the wall behind the counter, it may be necessary to use an elbow
fitting at the washer’s valve connection.
PURE WATER PLUMBING
PROVIDED BY CUSTOMER
HOT WATER PLUMBING
PROVIDED BY CUSTOMER
3/4-11 1/2 GHT
CONNECTOR
3/4-11 1/2 GHT
CONNECTOR

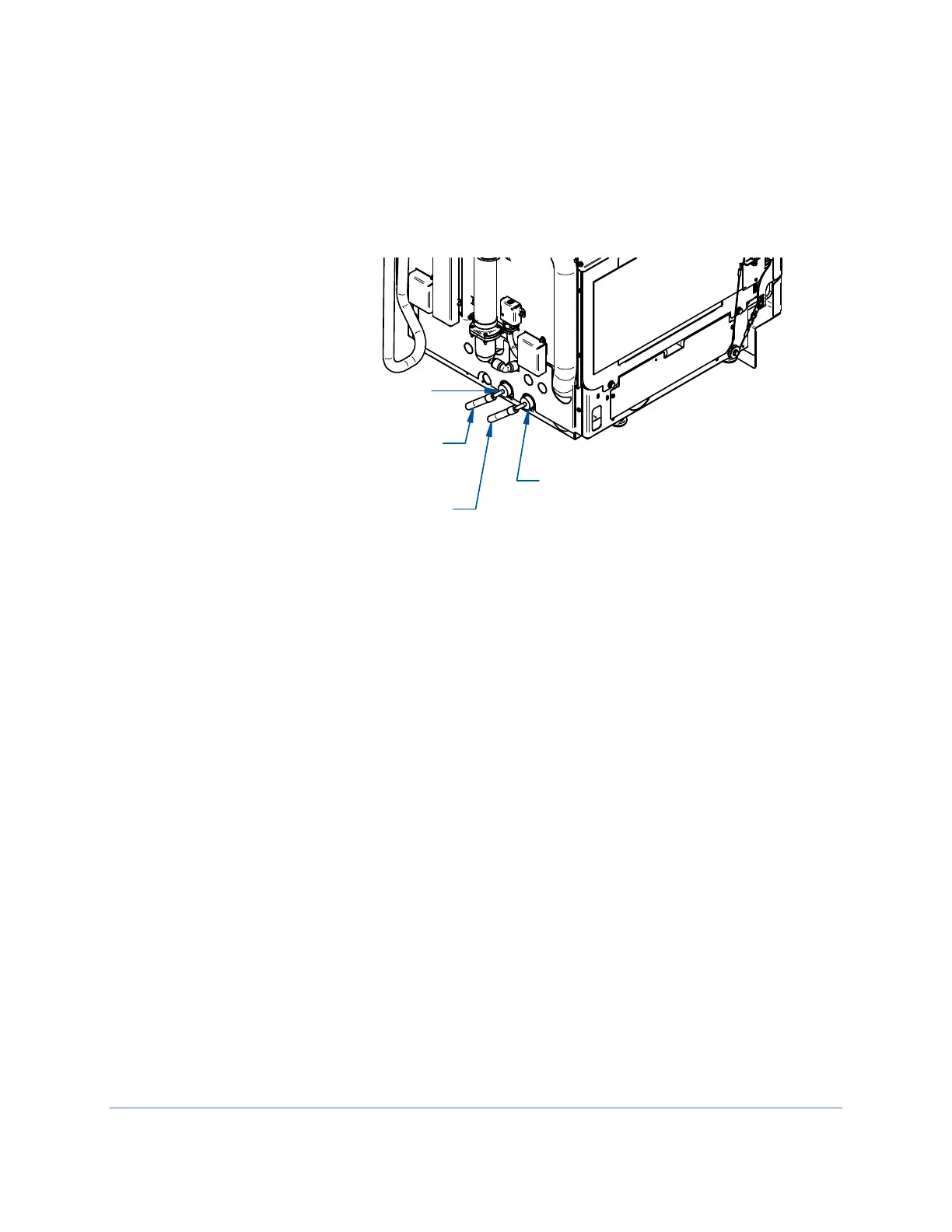

Figure 4-3
