71
Backup and Restore
Allows for the import/export of custom programs and/or data logs via USB thumbdrive.
Either export user-created programs and/or data log files, or import user-created
programs from another washer. Reference Fig. 6-32.
Insert thumbdrive in the USB port below display.
Once system recognizes the USB thumbdrive, touch [OK].
From the Help Screen, touch Backup/Restore.
Select an action: Export or Import.
o If Export selected, choose to export either Log Files or User Programs, or
both can be selected.
Touch [OK].
If exporting, a progress pop-up will display, and notification provided when
export is complete.
If importing, a progress pop-up will display, and notification provided when
import is complete.
o If the thumbdrive in the USB port does not contain a proper User
Program backup file, an error message will be displayed.

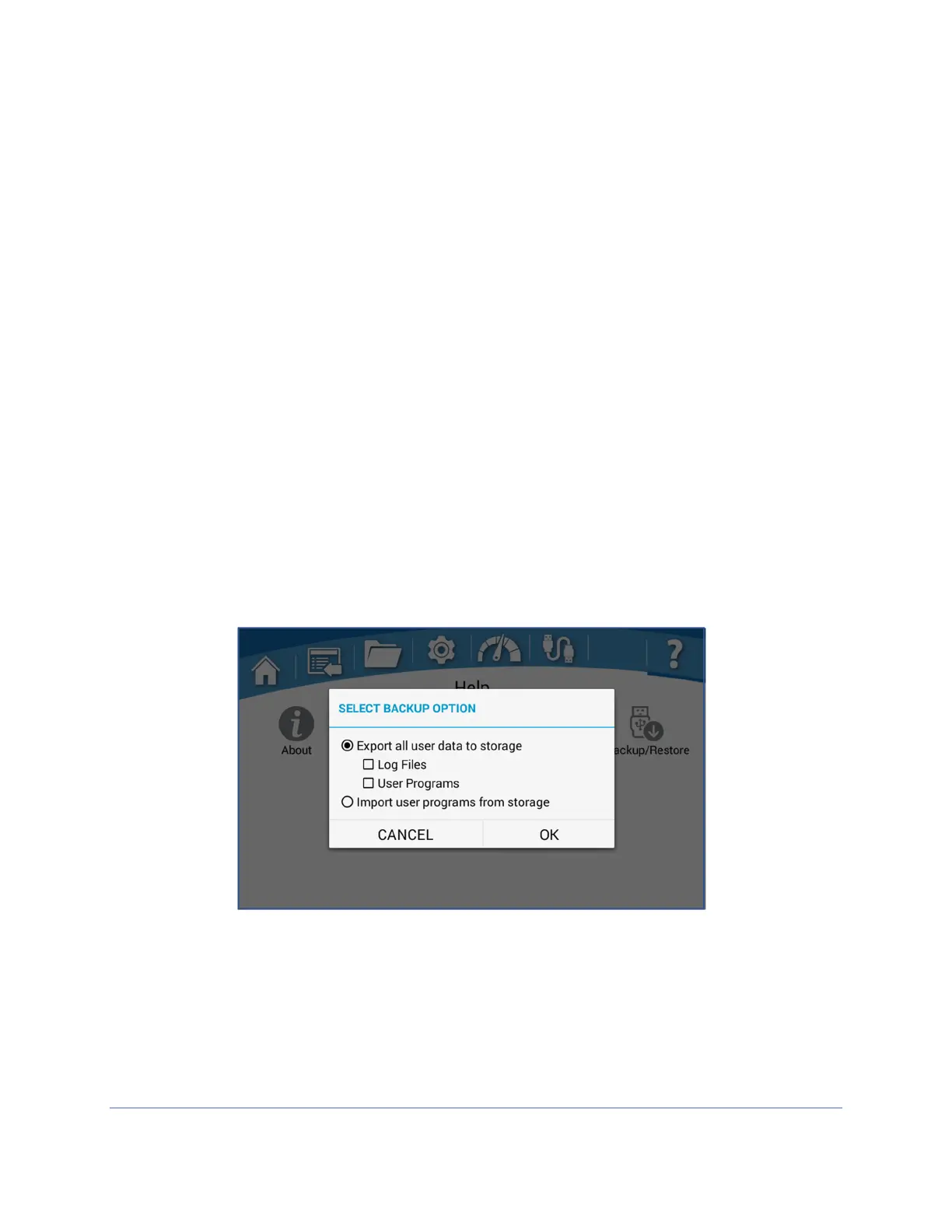

Figure 6-32
