Work Surfaces
A required work surface is available to attach to support the Protector Filtered Hood.
The black epoxy work surfaces are contoured to fit the dimensions of the filtered hood
to contain spills. May be ordered with a pre-cut 6" x 3" oval cupsink cutout. See
Figure 3-1 for installation.

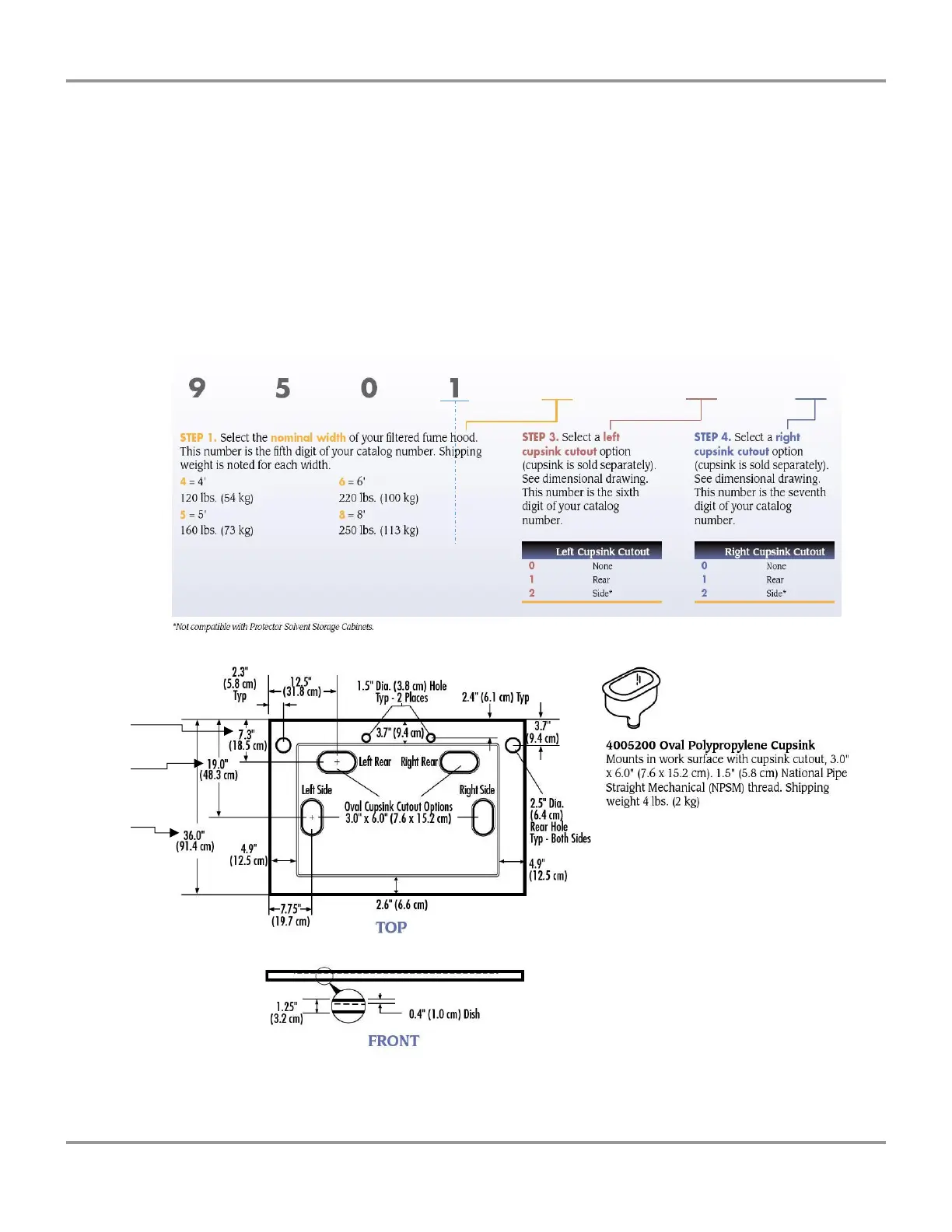

Use this key to configure the seven digit catalog number to order your SpillStopper
Dished Solid Epoxy Work Surface. For example, a 9501610 is a 6' wide x 36" deep
SpillStopper Work Surface, with a left rear cupsink cutout.
4.6" on
3' x 31.7" deep
only
18.8" on
3' x 31.7" deep
only
30.0" on
3' x 31.7" deep
only
3 = 3'
90 lbs. (41 kg)
1 = 36", used on all 37.7"
deep Echo
0 = 30", used on 3' x 31.7"
deep Echo only
