Lagoon 620 - Fuel - Engine Cooling

FUEL - ENGINE COOLING
PROPULSION
LAGOON 62O
98

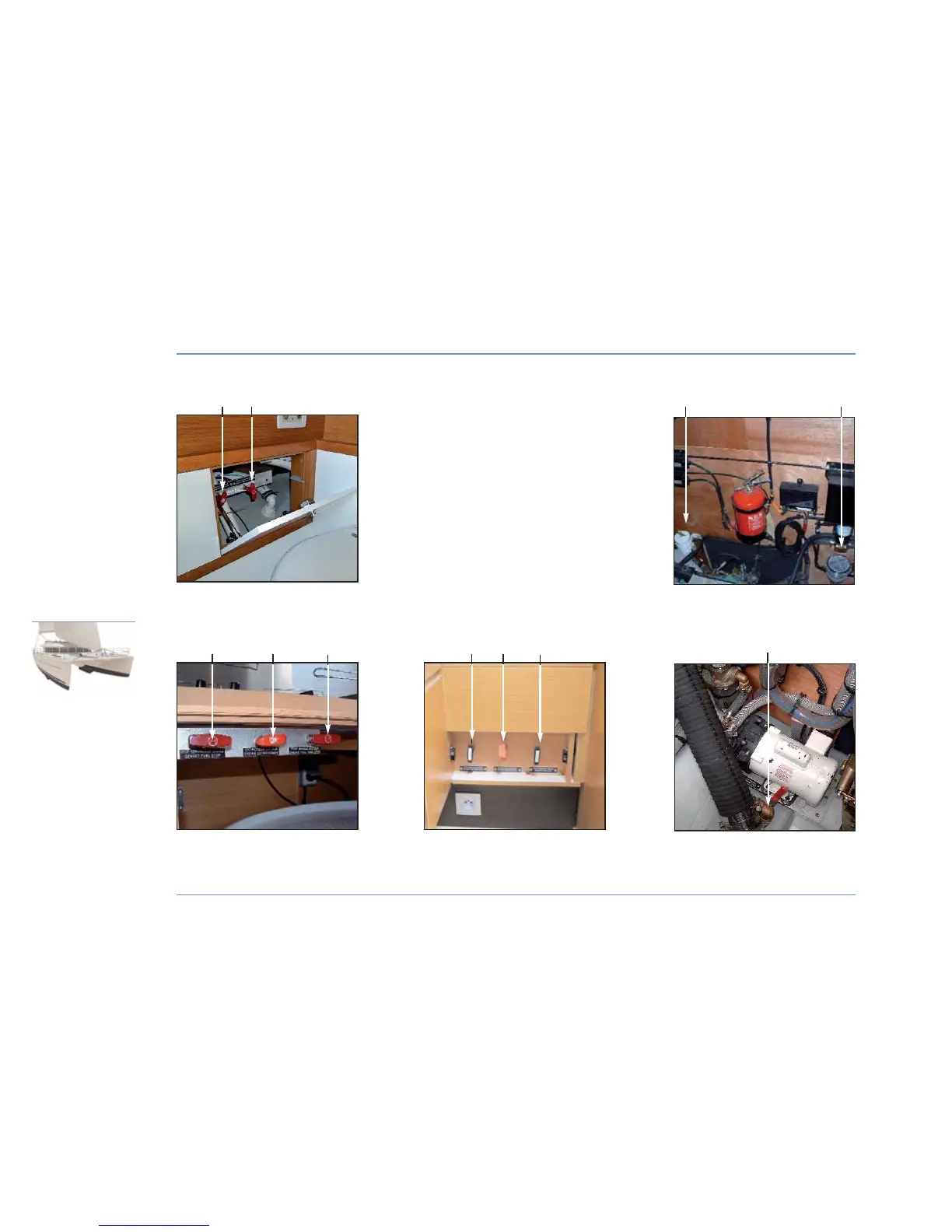

1 - Release mechanism of the starboard engine
bilge extinguisher.
2 - Cut off device of the starboard tank supply.
3 - Cut off device of the generator tank supply (portside).
4 - Release mechanism of the port engine bilge
extinguisher.
5 - Cut off device of the port tank supply.
6 - Fuel filter.
7 - Sea water filter.
8 - Engine water suction valve.
6
8
7
3
4
5
5
4
3
Galley / hull version Galley / saloon version
1 2
