Lagoon 620 - Fresh Water System

74

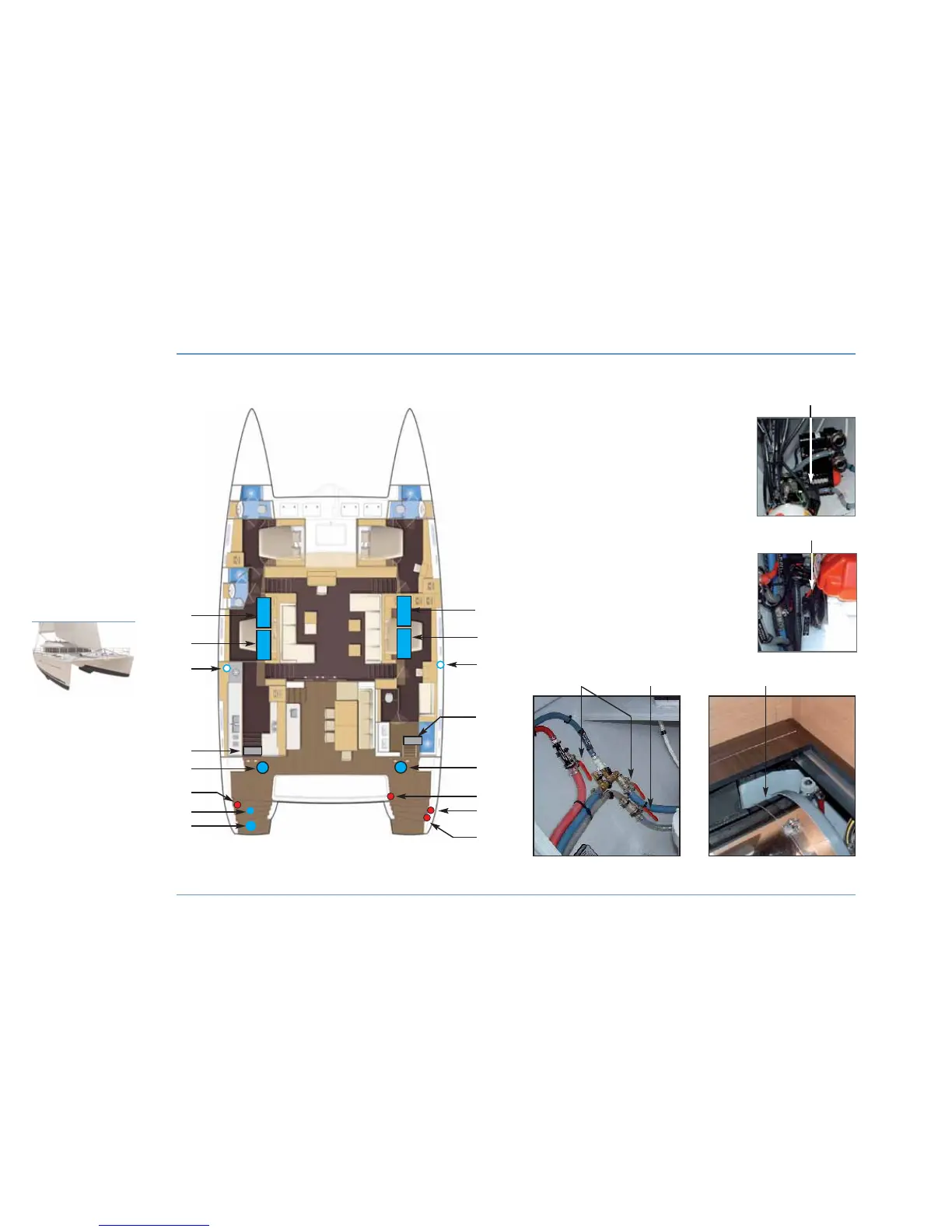

FRESH WATER SYSTEM
PLUMBING
LAGOON 62O
12
6
1 - Port forward tank.
2 - Port aft tank.
3 - Deck filler.
4 - Water heater.
5 - Pressure water pump.
6 - Water unit stop valve.
7 - Valve for shore fresh water supply.
8 - Shore fresh water supply.
9 - Starboard forward tank.
10 - Starboard aft tank.
11 - Transfer valve.
12 - Deck shower valves.
4
5
11
1
2
3
4
5
7
6
8
10
9
5
11
6
3
4
12
Nota: the same layout can be observed
in the other versions.
