SPECIFIC ACCOMMODATION

ACCOMMODATION

LAGOON 62O

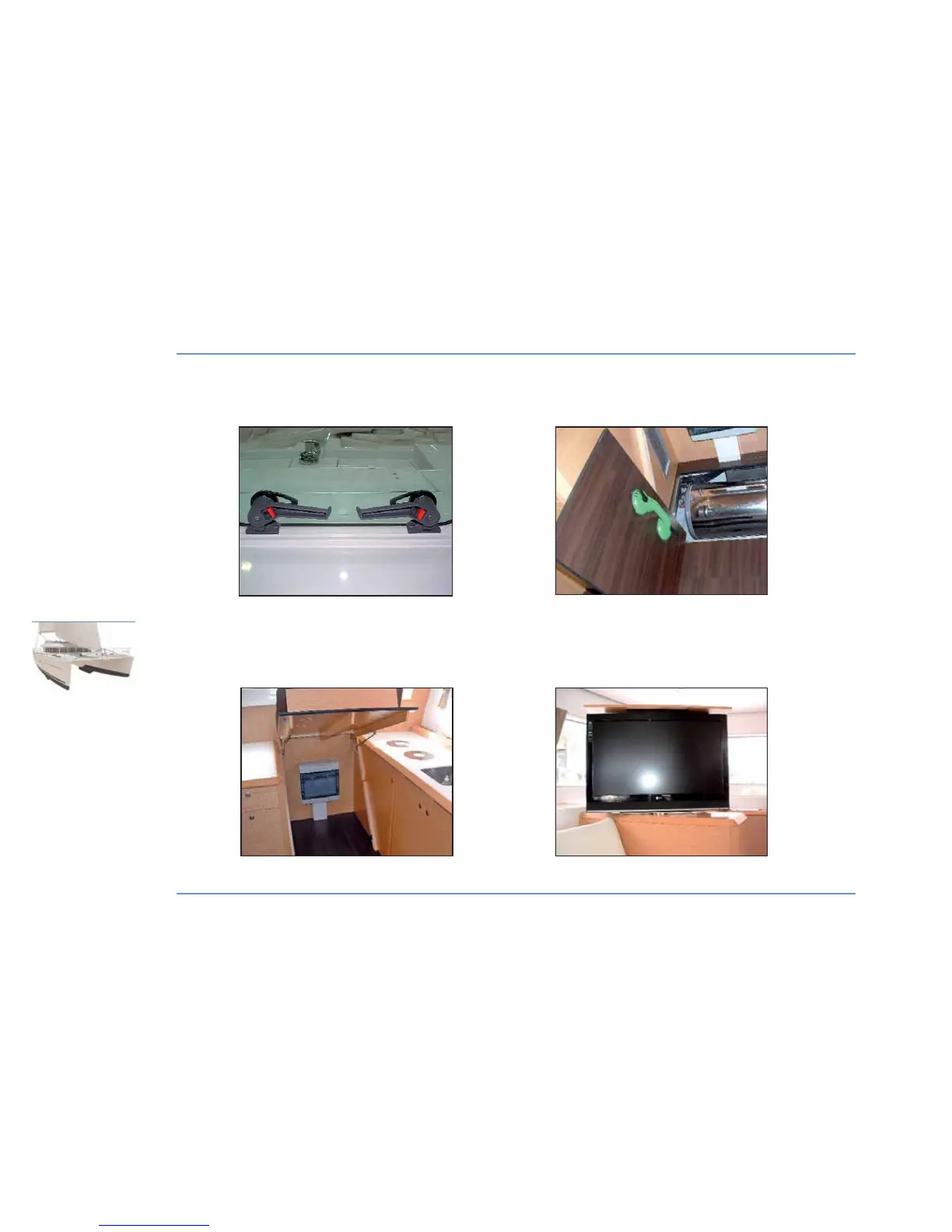

DECK HATCH LOCKING

(Knob of left handle in open position.)

(Knob of right handle in closed position.)

SUCTION PADS FOR

THE FLOORBOARDS

ACCESS TO THE BINS SLOT-IN TV SET
