Lagoon 620 - Sea-Cock Open; Sea-Cock Closed

72

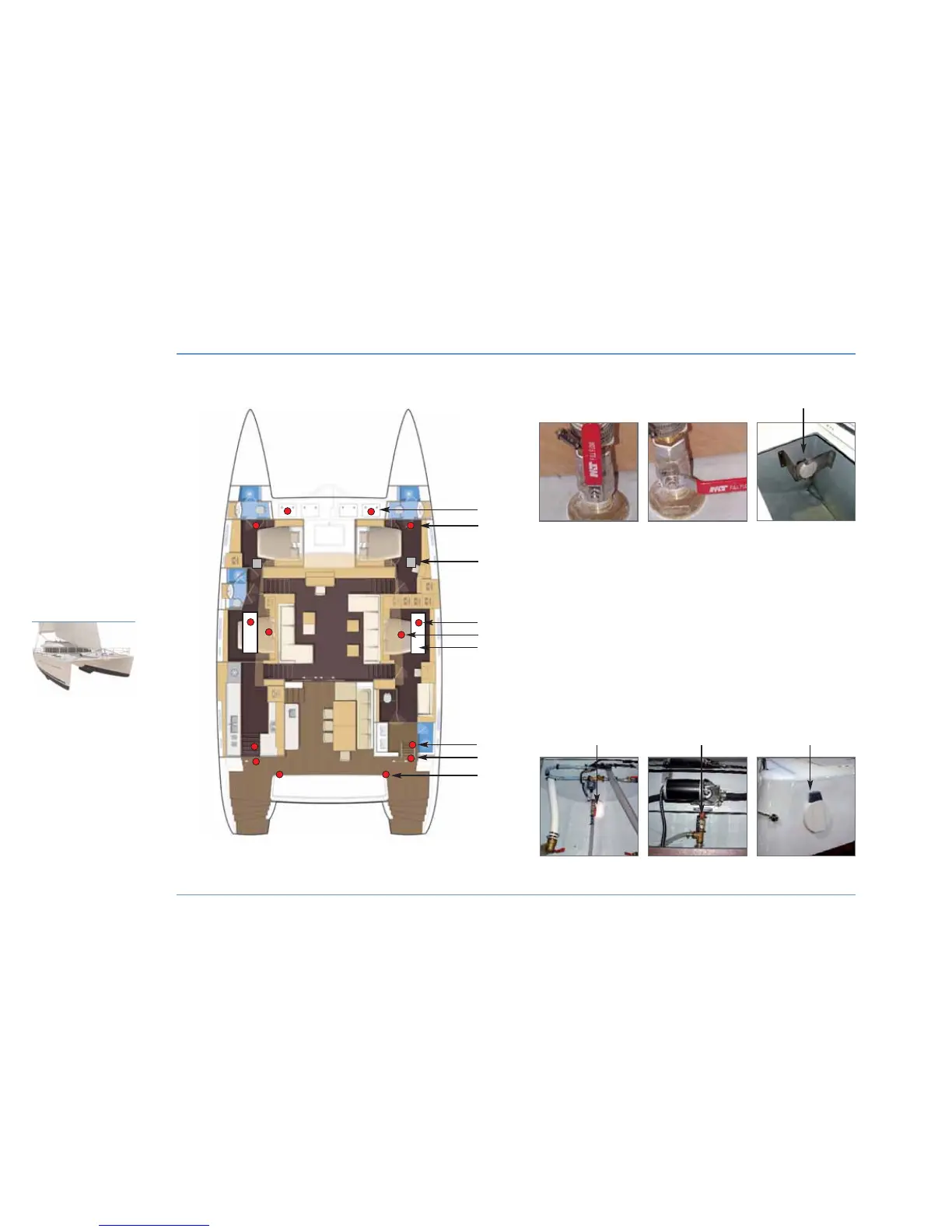

BILGE PUMP SYSTEM
PLUMBING
LAGOON 62O
1 - Forward compartment manual bilge pump.
2 - Outlet valve of forward compartment towards the sump.
3 - Grey water tank.
4 - Automatic start mechanisms of the electric bilge pump.
5 - Electric bilge pump / sump.
6 - Hull sump.
7 - Drain valve of engine bilge towards the sump.
8 - Electric bilge pump / engine bilge.
9 - Rear manual bilge pump.
Each hull has the same components.
Nota : each valve in the boat is identified.
2
SEA-COCK
OPEN
SEA-COCK
CLOSED
7 9
1
3
2
1
4
5
7
8
9
6
Nota: the same layout can be observed
in the other versions.
