ELECTRICITY
12 V CUTOUT - SERVICE ROOM - 24 V CONNECTING STRIP

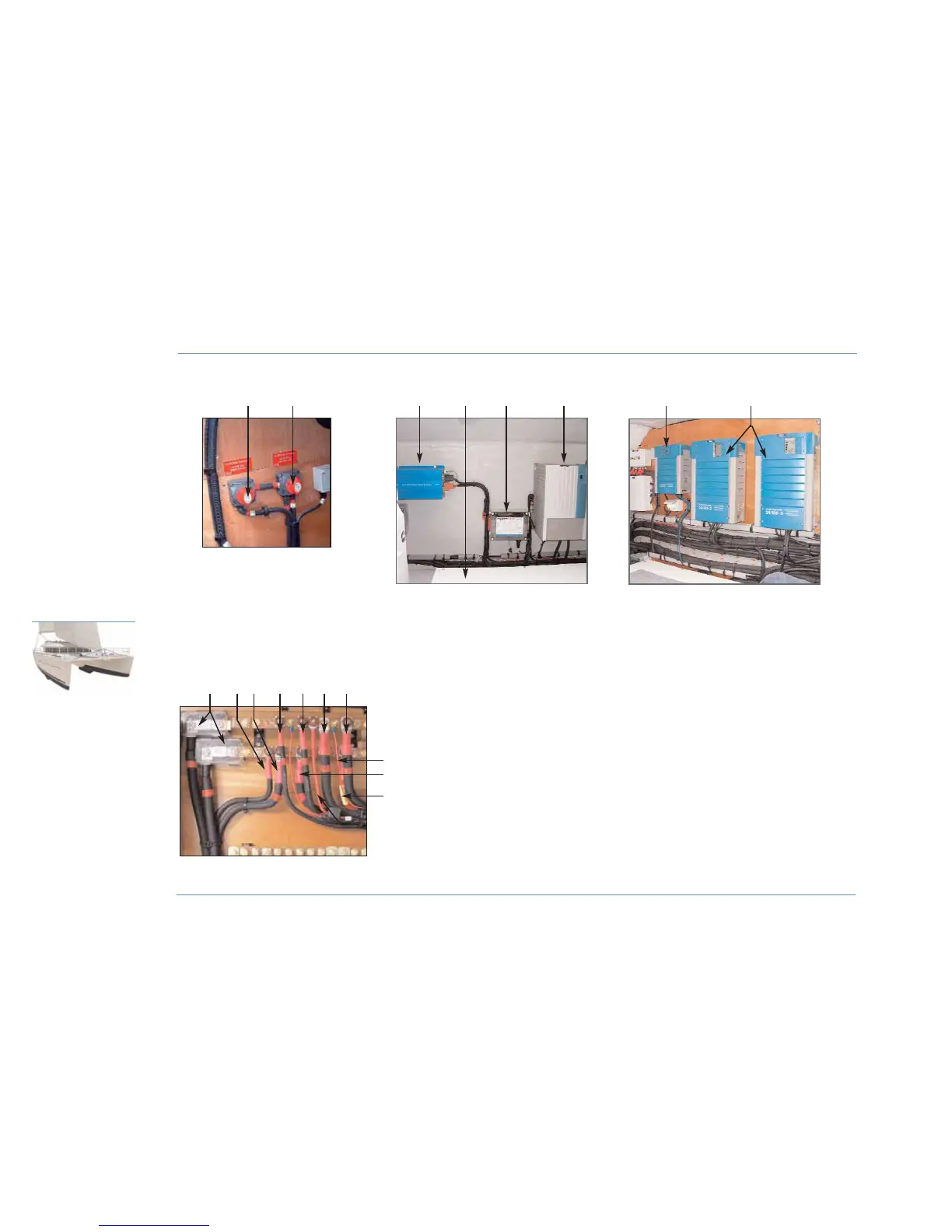

1 - Cut out - battery coupling (12 V).
2 - Cut out - portside engine (12 V).
3 - 24 V / 220 V - 1500 Va inverter as standard.
4 - Battery bank.
5 - Electronic box for furler control.
6 - 24 V / 220 V - 5000 Va inverter (optional extra).
7 - 220 V / 12 V - 35 Ah charger.
8 - 220 V / 12 V - 100 Ah chargers.
9 - Bow thruster.
10 - 24 V / 220 V - 5000 Va inverter (optional extra).
11 - 24 V / 220 V - 1500 Va inverter as standard.
12 - Multiplexage.
13 - DC panel supply.
14 - Supply for battery switch of the battery bank.
15 - 24 V power box.
16 - Bow thruster relay.
17 - Electric system
(gangway, davits, tenderlift).
18 - Generator dividing box.
19 - Automatic pilot.
20 - Gas electrovalve (US 110 V version).
1
3 654 7 8
2
10 11 12 13 14 15
16
17
18
9
