Lagoon 620 - Black Water Tank System

76
BACK WATER TANKS
PLUMBING
LAGOON 62O
1
2
3
5 64

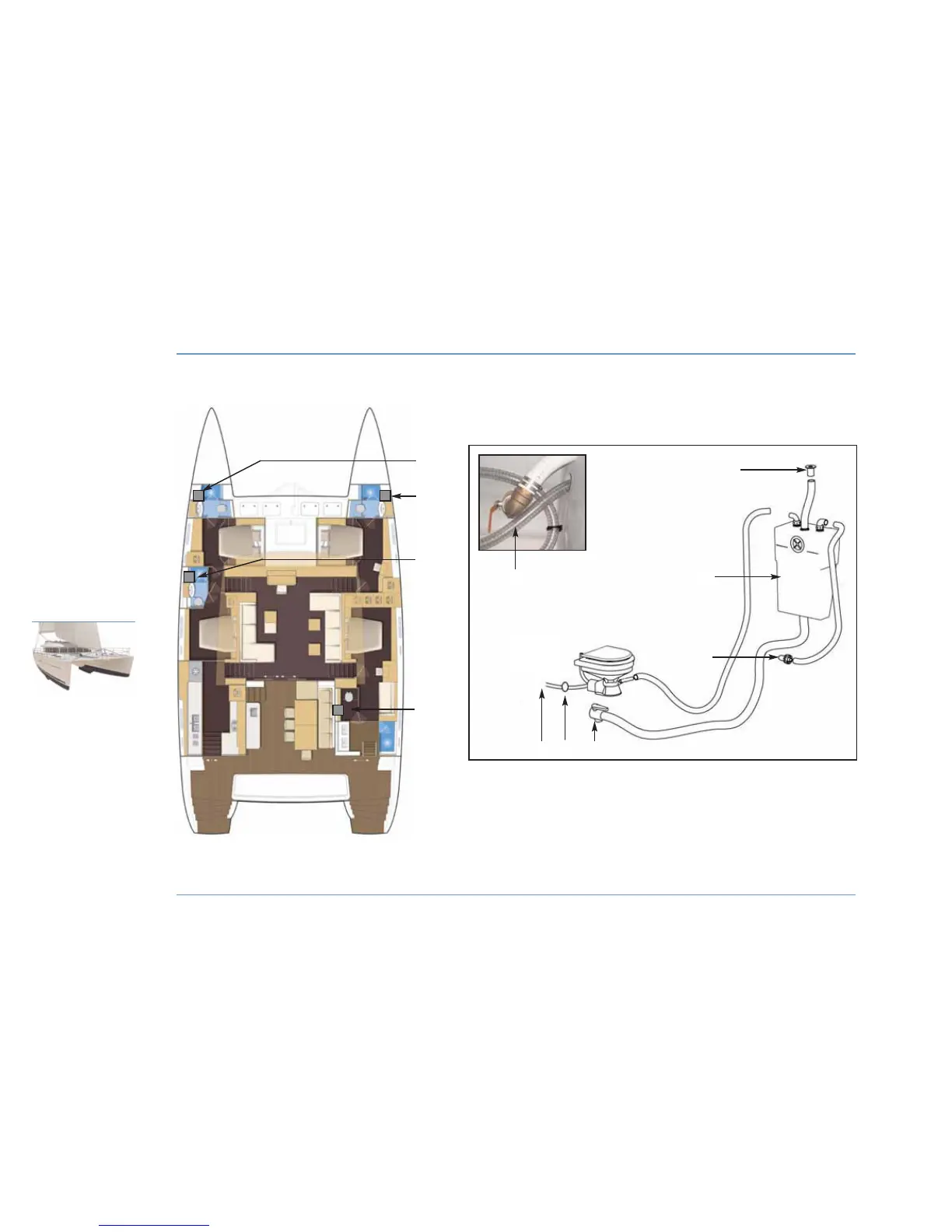

1 - Black water tank.
2 - Drain bung hole on deck.
3 - Vent.
4 - Fresh water tank inlet.
5 - Electrovalve / fresh water inlet.
6 - Drain valve on hull.
BLACK WATER TANK SYSTEM
6
1
1
1
1
Nota: the same layout can be observed
in the other versions.
