Lagoon 620 - Pull Handles of Fuel Valves - Engine Bilge Extinguisher

14

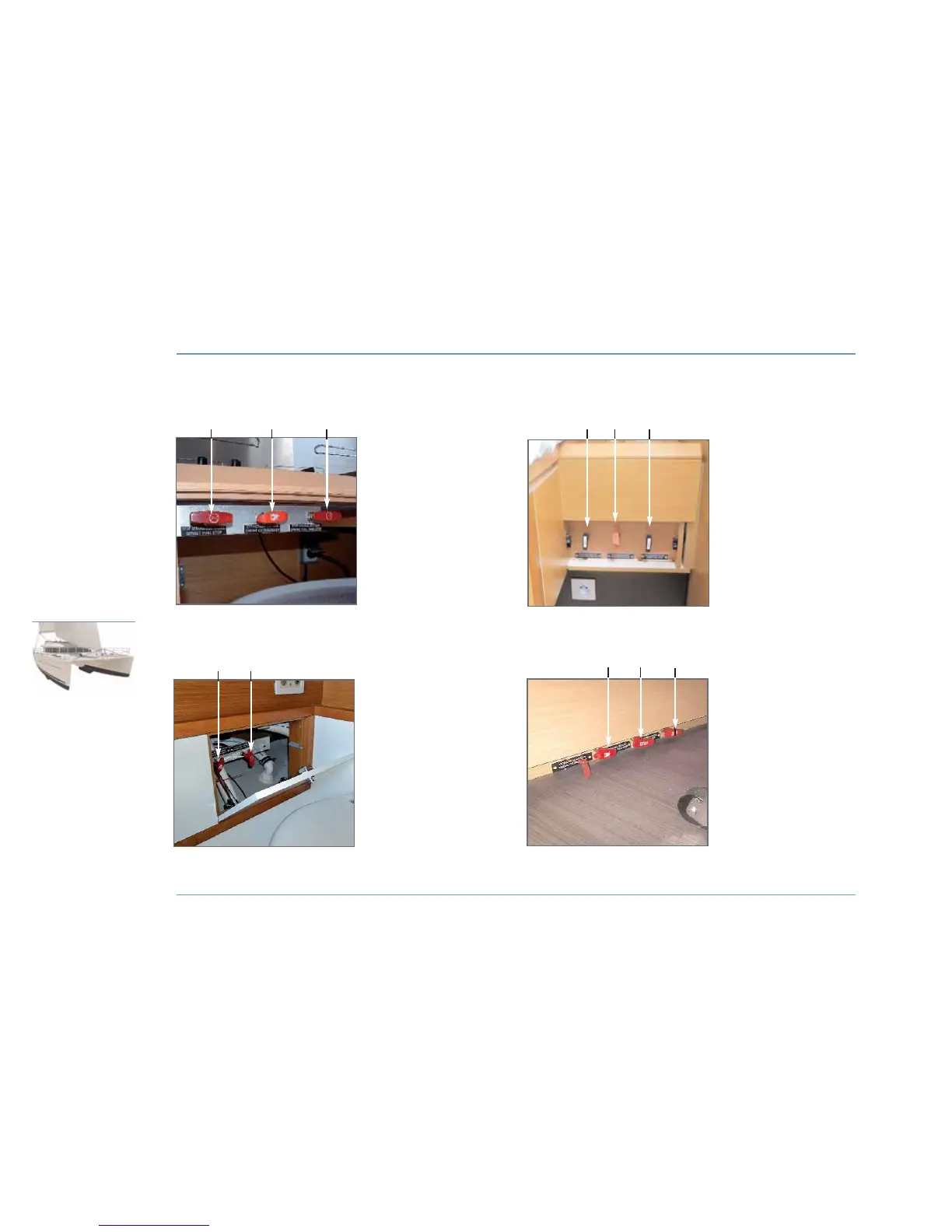

PULL HANDLES OF FUEL VALVES - ENGINE BILGE EXTINGUISHER
SAFETY
LAGOON 62O
1 2
3
1 - Cut off device of generator
tank fuel supply (portside).
2 - Release mechanism of
portside engine bilge
extinguisher.
3 - Cut off device of portside
tank fuel supply.
Access by the pull handles
under the hob in the galley in
the portside hull aft.
1 2
3
1 - Cut off device of portside
tank fuel supply.
2 - Release mechanism of
portside engine bilge
extinguisher.
3 - Cut off device of generator
tank fuel supply (portside).
Access by the pull handles
behind the hatch under the
bedside storage at the aft end
of the port hull.
4 - Release mechanism of
starboard engine bilge
extinguisher.
5 - Cut off device of starboard
tank fuel supply.
Access through the hole
behind the WC in the starboard
hull aft.
Galley / saloon version
Galley / hull version
4 5
1 - Release mechanism of
engine bilge extinguisher.
2 - Cut off device of tank
fuel supply.
3 - Cut off device of generator
tank fuel supply.
Access in the port and
starboard rear cabins under
the berths.
6 cabins version
1 2
3
