SmartShop|Maker Owner’s Manual
14

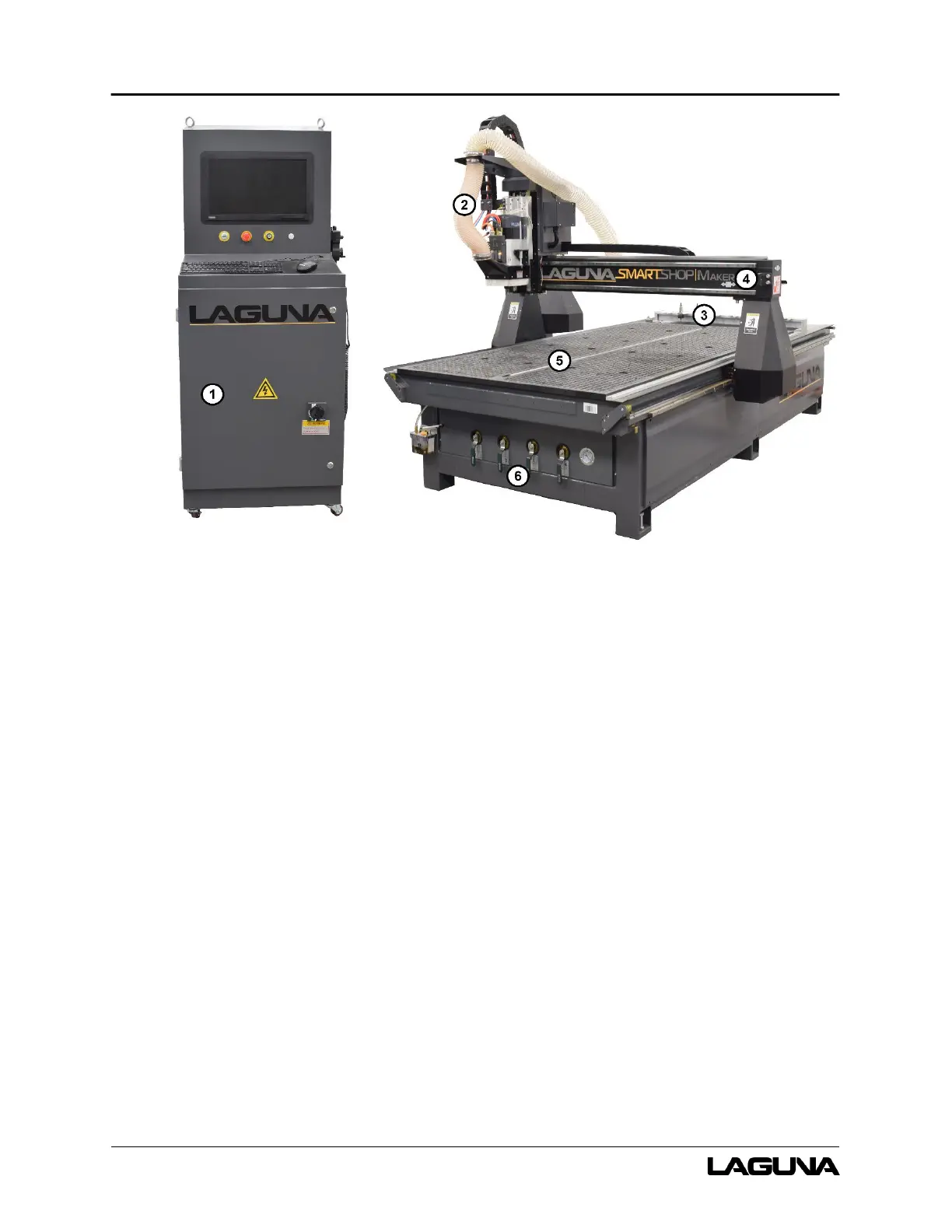

3.2 Components
1. Electrical Cabinet – The electrical cabinet will be located on the side of the machine.
2. Dust Collection Port – A 6-inch diameter dust collection port. Attach a stand-alone dust
collection system to reduce airborne particles, dust, and chips during operation.
3. Automatic Tool Changer (ATC) Rack – The tool changer features eight (8) tool positions to
accommodate a large range of tools. Each of the positions includes an ISO-30 tool clip. Tool
positions are controlled by the CNC controller.
4. Gantry – The gantry straddles the table. It is moved along the length of the table by a helical
rack and pinion.
5. Vacuum Table – The bed of the machine consists of a sturdy steel frame with a composite
worktable that enables holding projects securely with vacuum.
6. Vacuum Control Valves – The machine has six (6) vacuum control valves that can be used
to restrict vacuum to the desired vacuum table zones.
