3.4 Manual Pulse Generator

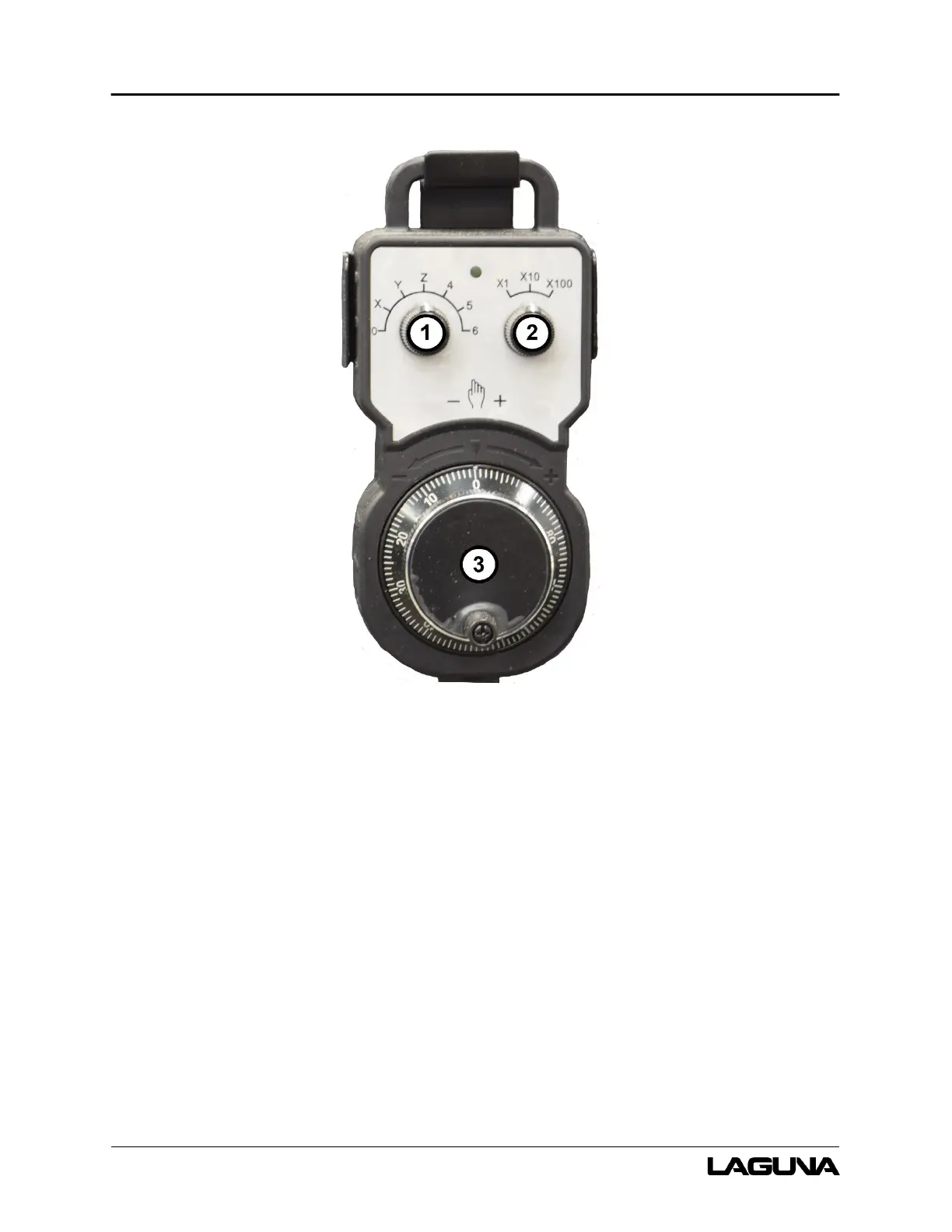

1. Axis Select – Turning this knob clockwise and counterclockwise selects the axis to be
moved.
2. Speed Select – Turning this knob clockwise and counterclockwise selects the movement
speed of the tool gantry and spindle.
3. Handwheel – Moving this knob clockwise and counterclockwise manually moves the tool
gantry and spindle at the selected speed and along the selected axis.
