SmartShop|Maker Owner’s Manual
21
Airline poly connection (refer to Figure 5-3) may be removed
to install quick disconnect airline fittings.
5.4 Connecting the Vacuum Pump
The machine is provided with a 2-inch pipe for the
hose connection to the vacuum pump. Connect the
other end to a vacuum pump(s). Vacuum pumps are
typically placed at the rear of the machine.
Figure 5-4 illustrates typical 208 to 240 vac pump
wiring.

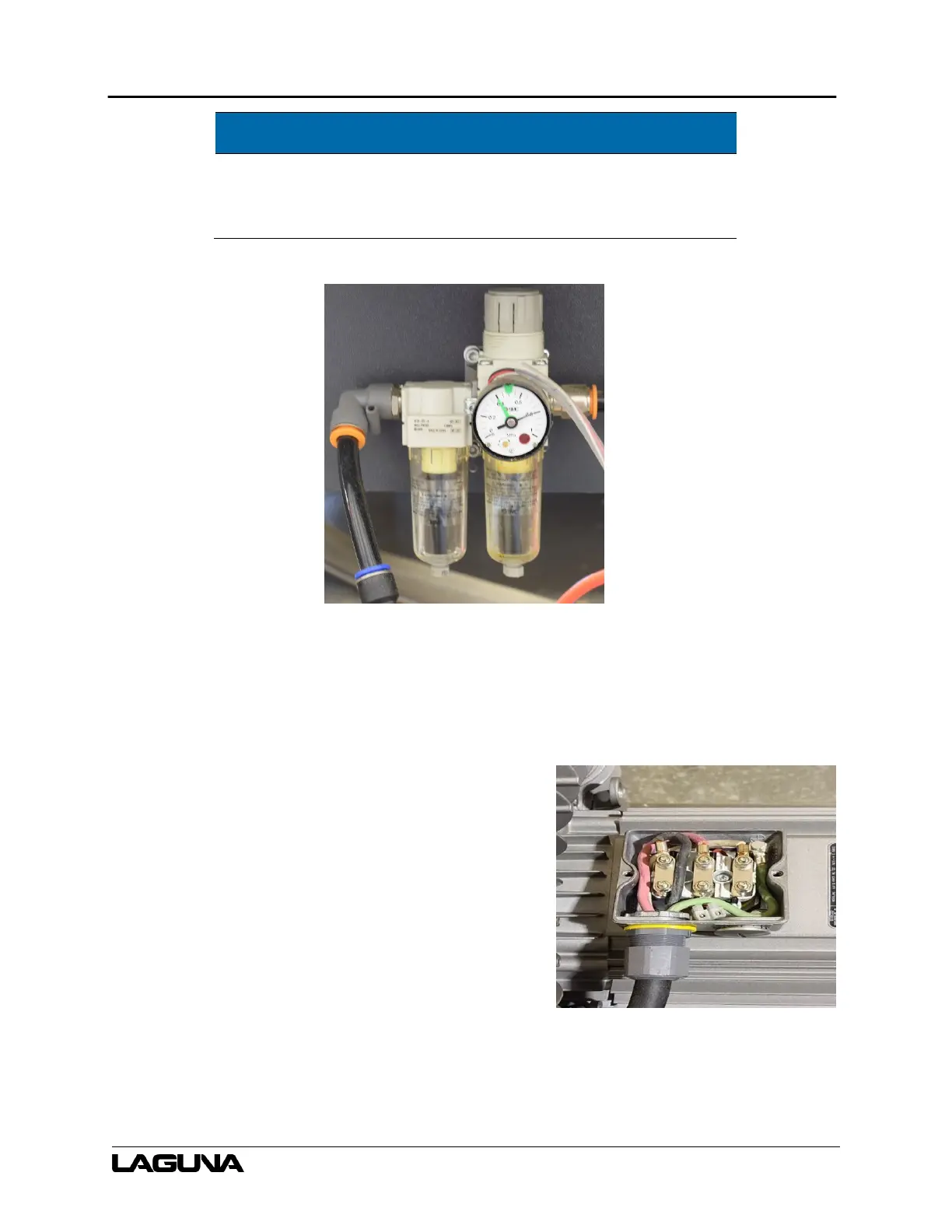

Figure 5-3: Poly Connection and
Bowls
Figure 5-4: Pump Wiring Example
