SmartShop|Maker Owner’s Manual
23
The face of the collet and the face of the spindle
nut will be close to flush.
3. Thread the collet and nut assembly on the tool
cone and thread by hand.
4. Press the bit into the collet. The flute of the router
bit should be a minimum of 1/16 inch outside the
collet. The bit should not bottom out in the tool cone.
5. Tighten the collet nut with the supplied wrench
until snug. Do not overtighten.
NOTE
Keep the collets clean and blow all dust out of the slots. Fine
dust accumulates and will affect the clamping ability and cut
quality.
5.7 Vacuum Table and Spoil Boards

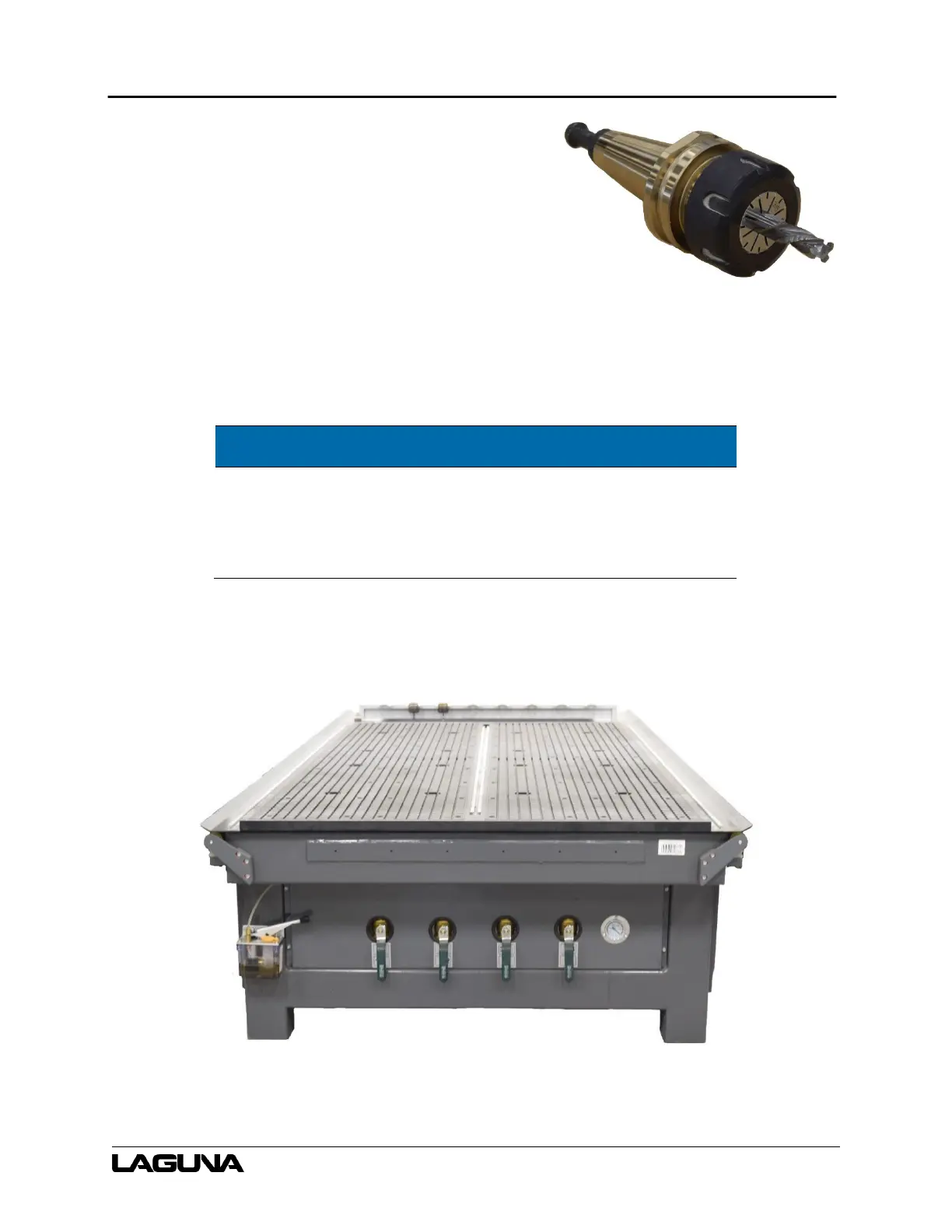

Figure 5-3: Vacuum Table
Figure 5-5: Assembled Tool Cone
