SmartShop|Maker Owner’s Manual
20
CAUTION
Laguna Tools does not supply electrical cables. Ensure wires
are properly sized according to local codes for the main power
and vacuum pump.
5.3 Compressed Air Connection
The machine is supplied with an air regulator. The
input air regulator will need to be adjusted to 6 bar (85
psi) once the machine has been connected to the air
supply (an air pipe is not supplied). This will ensure
the machine always has the minimum required air
pressure. To adjust the air pressure, pull the cap down
and rotate until the gauge reads the correct pressure.
Once the pressure is adjusted, push the cap up.
It is important that the air supplied to the machine is
CLEAN DRY AIR. The machine will not perform
consistently if the air is damp or dirty; dirt and moisture
will block the valves. Damp or dirty air will damage the
machine and dramatically shorten the service life of the machine.
The bowls (refer to Figure 5-3) on the air inlets provide backup protection against contamination
in the pneumatic system and spindle. If there is water or oil present in the bowl then
contamination may have occurred. Water or oil contamination can void the warranty on your
machine. The bowl must be emptied if more than 1/3 full or stagnant.
The best way to prevent water is refrigerant air dryer and a two-stage filter.
CAUTION
If conducting repair on the pneumatic system, close the air
valve.

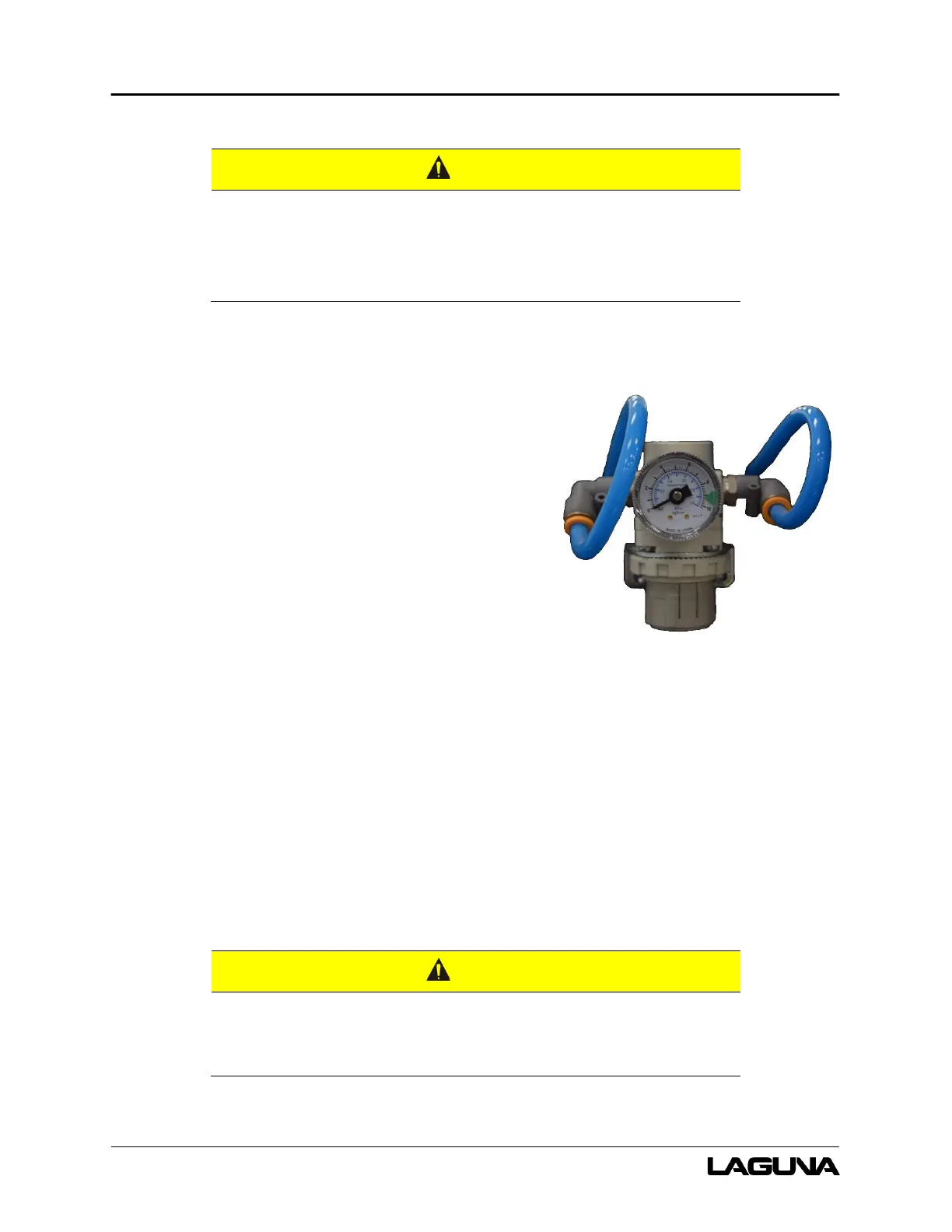

Figure 5-2: Air Regulator
