Lantronix UDS2100 User Manual

5: Configuration Using Web Manager
UDS2100 Device Server User Guide 25
Network Configuration
The unit’s network values display when you select Network from the main menu.
The following sections describe the configurable parameters on the Network
Settings page.

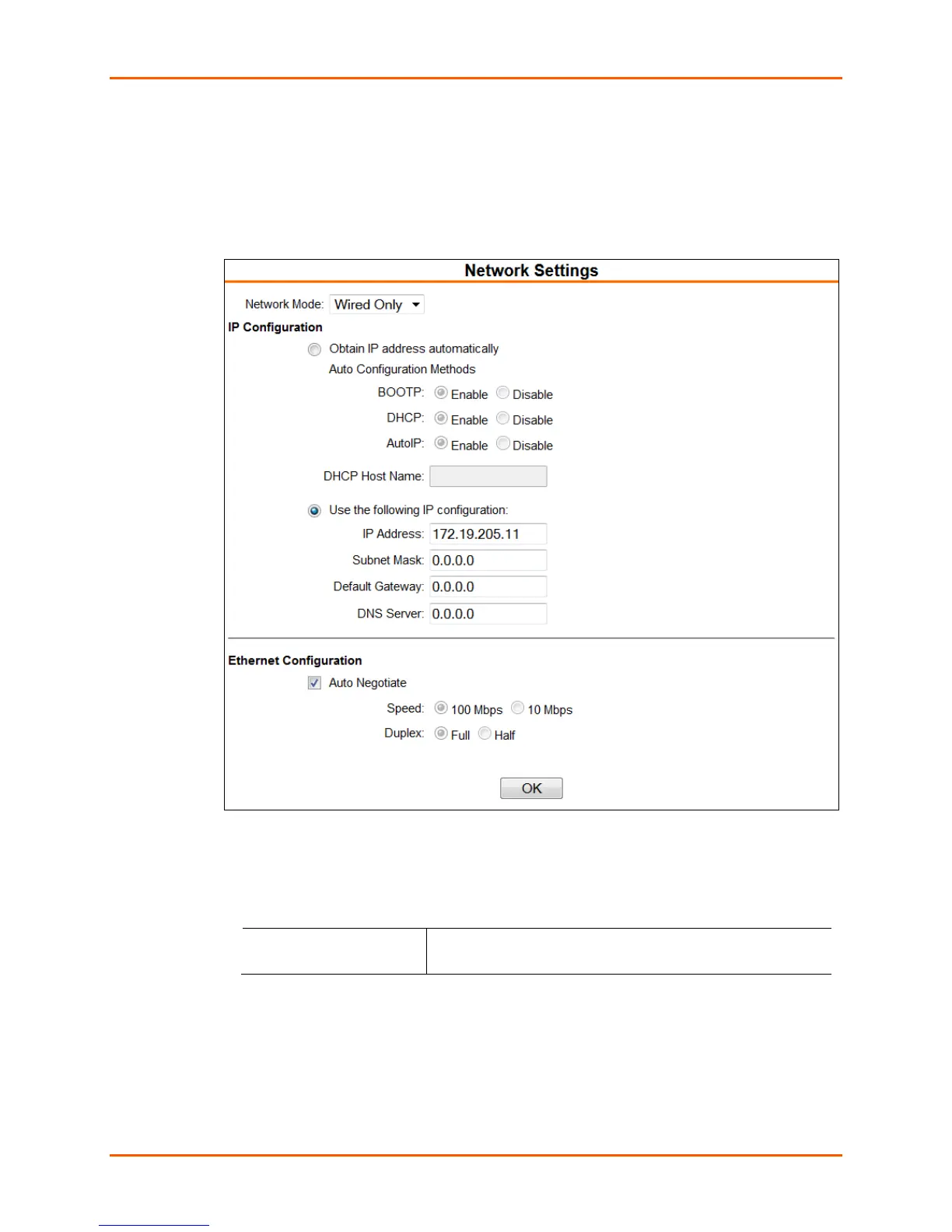

Figure 5-3. Network Settings
Network Mode
1. Click Network from the main menu.
2. Note the following:
Network Mode
For the UDS2100, Wired Only is the only choice. It enables
the Ethernet network connectivity.
Automatic IP Address Configuration
An IP address can be assigned automatically. You then enter related network
settings.

Lantronix UDS2100 Specifications

General

Isolation	1.5 kV
Certification	FCC, C/UL, CSA, VCCI, CE, TUV, CTick
Serial interface type	RS-232/422/485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, RFC2217
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN, Y
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	9 - 30 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
