Ethernet Connector Pinouts
The UDS2100 supports 10/100 Mbps half or full duplex Ethernet through an
RJ45 connector.

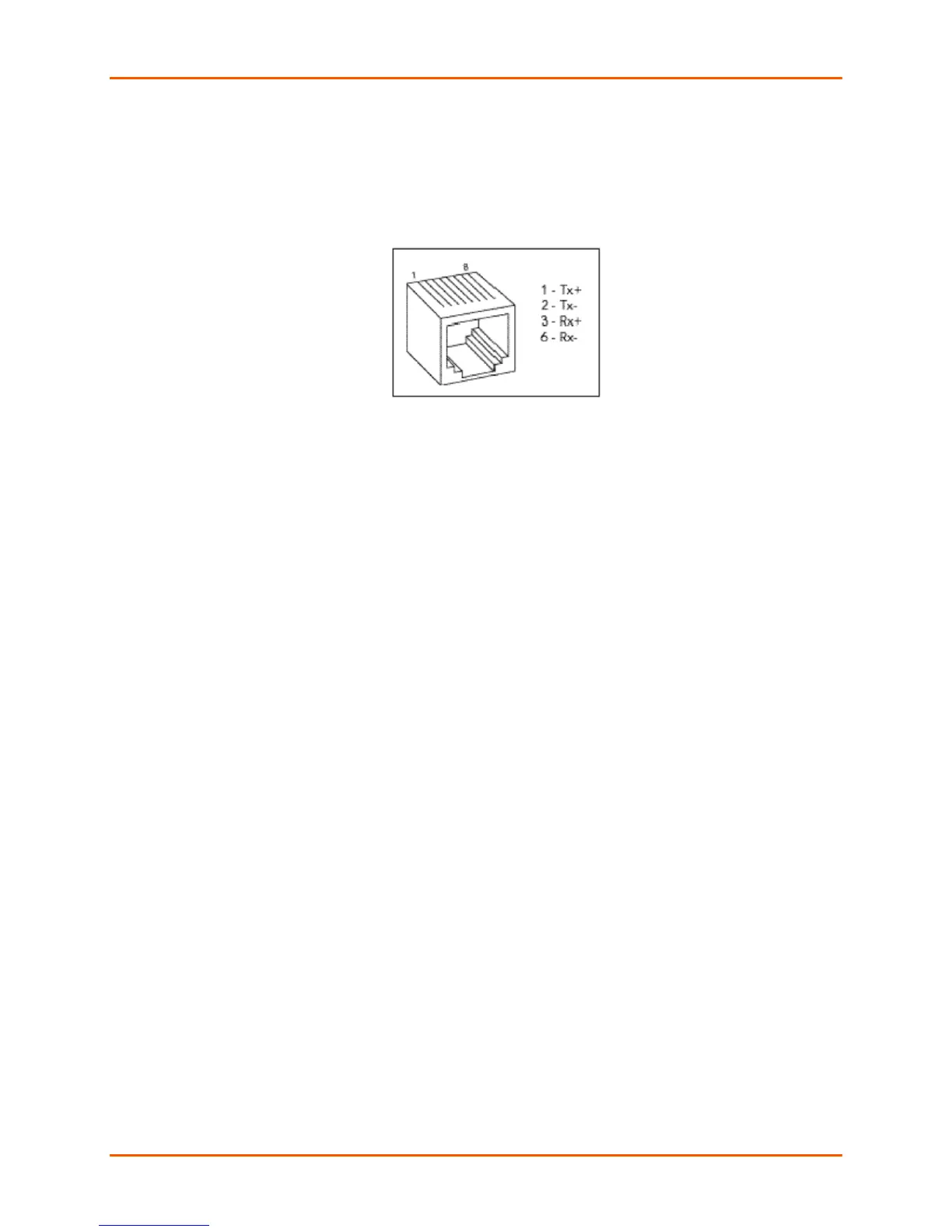

Figure B-5. RJ45 Ethernet Connector
Power Plug
Power input on the power plug is 9 -30 VDC (center +) (1.8W
maximum power). See Figure B-4. Network Interface, Reset Button
and Power Plug.
