Lantronix UDS2100 User Manual

5: Configuration Using Web Manager
UDS2100 Device Server User Guide 31

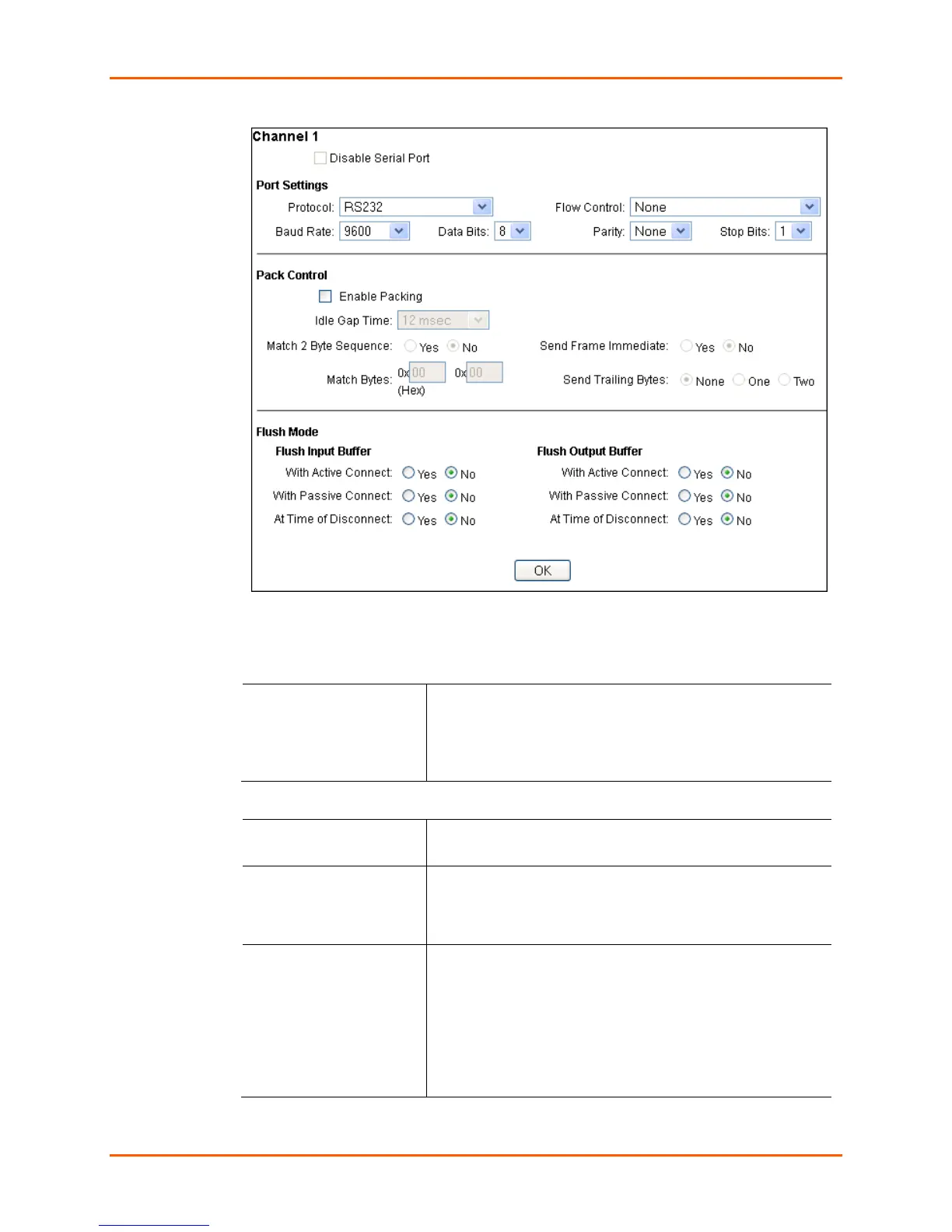

Figure 5-6. Channel Serial Settings
2. In the available fields, enter the following information:
Channel 1 (or Channel 2)
Disable Serial Port
When selected, disables communication through the serial
port. The serial port is enabled by default.
Note: This feature is not available on single port device
servers, since it can only be applied to channel 2.
Port Settings
Protocol
From the drop-down menu, select the protocol type for the
selected channel. The default setting is RS232.
Flow Control
Flow control manages data flow between devices in a network
to ensure it is processed efficiently. Too much data arriving
before a device is prepared to manage it causes lost or
retransmitted data. None is the default.
Baud Rate
The unit and attached serial device, such as a modem, must
agree on a speed or baud rate to use for the serial connection.
Valid baud rates are 300, 600, 1200, 2400, 4800, 9600
(default), 19200, 38400, 57600, 115200, 230400, 460800, and
921600 baud. The default setting is 9600.
Note: Baud rates 460800 and 921600 are available for
selection only when CPU performance mode is set to High."

Lantronix UDS2100 Specifications

General

Isolation	1.5 kV
Certification	FCC, C/UL, CSA, VCCI, CE, TUV, CTick
Serial interface type	RS-232/422/485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, RFC2217
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN, Y
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	9 - 30 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
