Lantronix XPort User Guide

4: Configuration Using Web Manager
XPort® Device Server User Guide 21

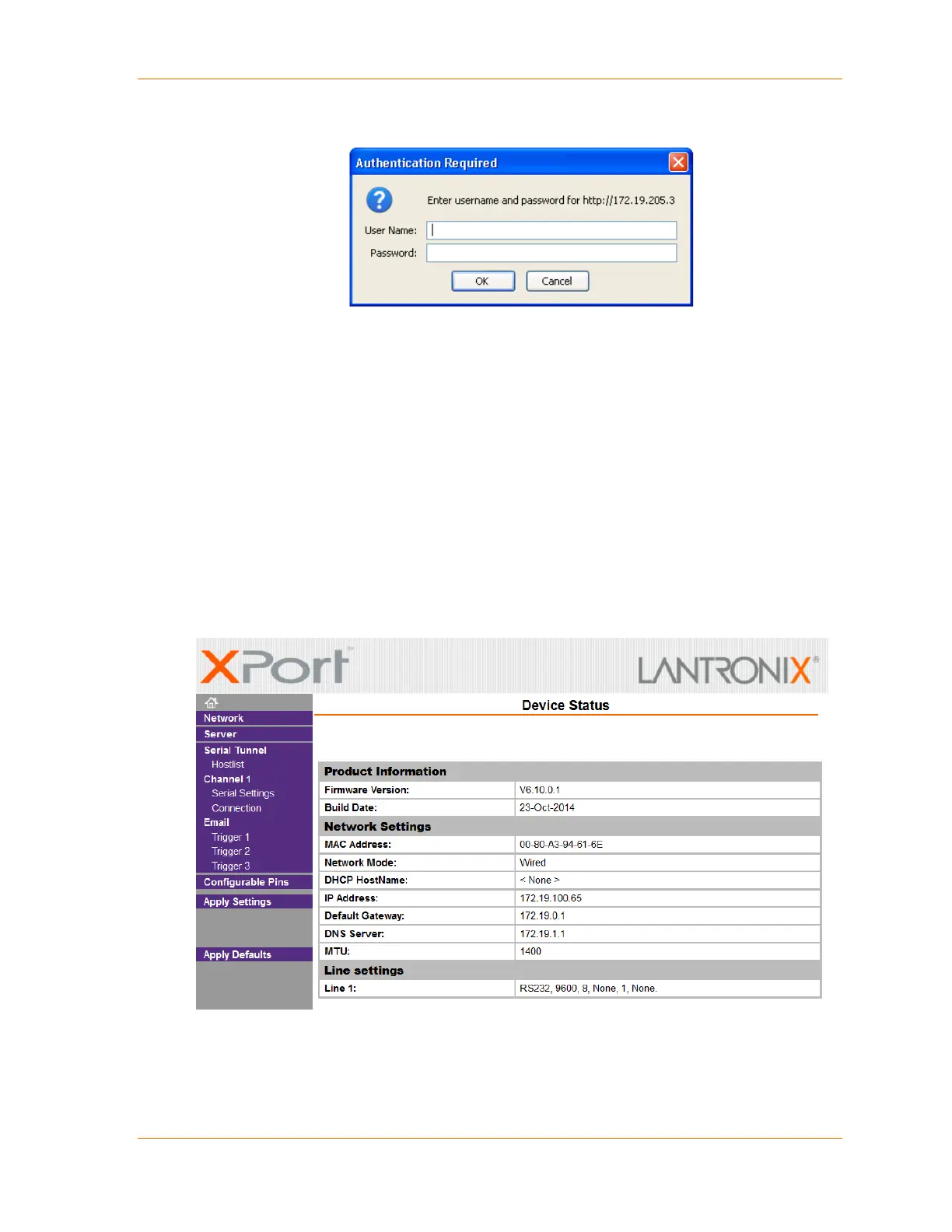

Figure 4-1. Web Manager Login Window
7. Perform one of the following:
 If no Telnet password has been defined, leave both fields blank and click OK.
 If a Telnet password has been defined, leave the username blank, type in the
password, and then click OK.
The Web Manager displays.
Note: We recommend that you always use the enhanced password setting and
create a strong 16 character password. See Security Settings (Option 6) on page
69.
Figure 4-2. Lantronix Web Manager
The main menu is in the left pane of the Web Manager window.

Lantronix XPort Specifications

General

Data Link Protocol	Ethernet, Fast Ethernet
Connectivity Technology	Wired
Form Factor	Embedded
Category	Embedded Systems
Interface	Serial
Serial Ports	1
Operating Temperature	0°C to 70°C
