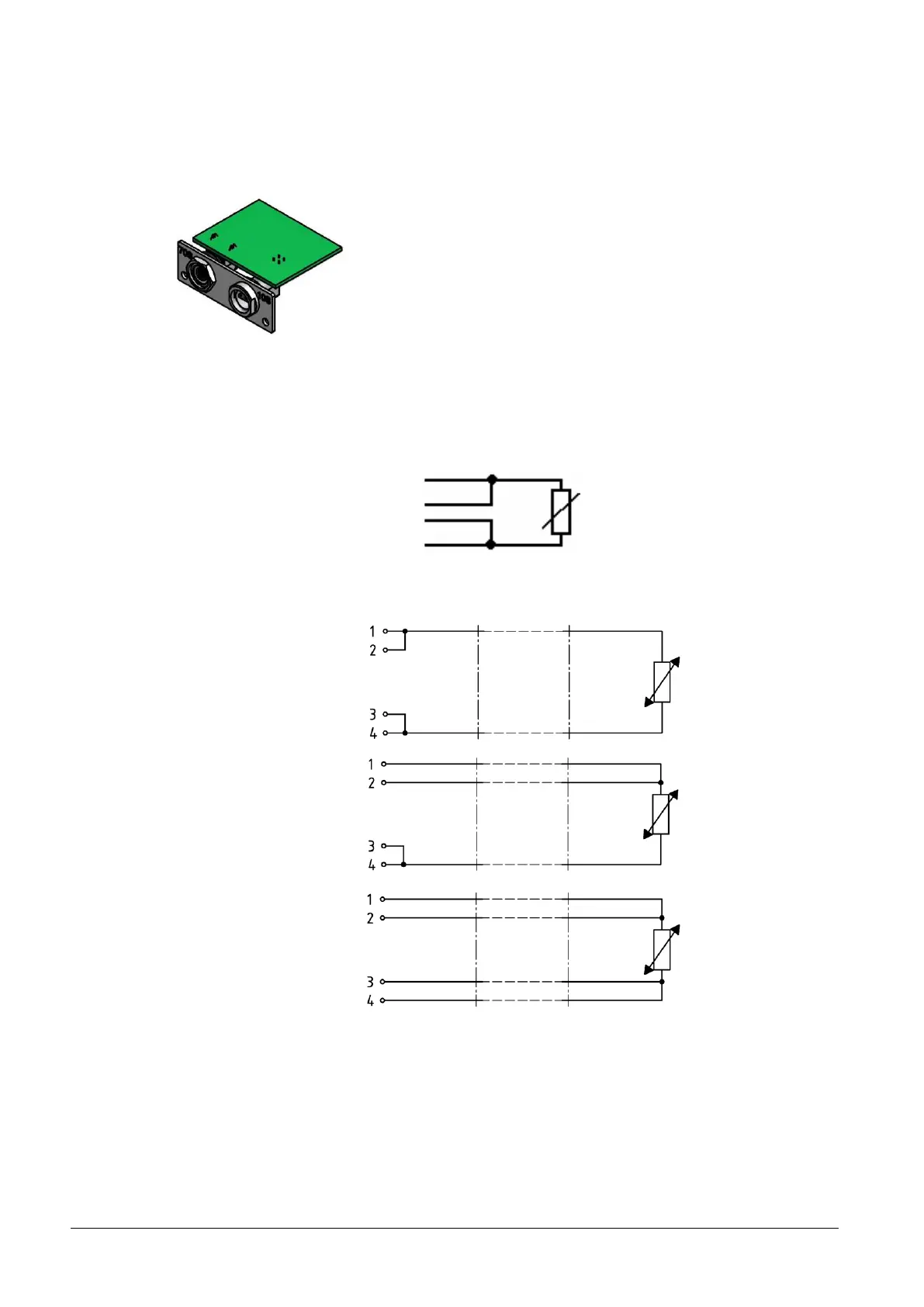

19.5 Pt100/LiBus module
The Pt100/LiBus module (catalogue no. LRZ 918) has two connection
sockets.
A Lemo socket (10S) to connect an external Pt100 temperature probe
und a socket (70S) for connection of components via the LAUDA device
bus LiBus (Command remote control, shut down/reverse flow protection,
cooling water valve).
Plug: 4-pin Namur standard (Lemo) for Pt100 connection, catalogue
number EQS 022.
External Pt100 (10S)
Lemo socket 10S
contact
1
2
3
4
+
+
-
-
I
U
U
I
Current path
Voltage path
Voltage path
Current path
Pt100
DIN EN 60751
Contact assignment
Socket 10S
Cable
Pt100
2 wire Pt100
3 wire Pt100
4 wire Pt100
Please note:
 Use protected connection lines. Connect the protective screen with the connector shell.
