Screw for adjustment (3x)
Starting up of the calibration thermostat
Firstly, assemble the connecting tube LZM 045 as per diagram.
Attention! Do not bend the tube! Hold up with open-end wrench SW 14 mm.
Please move the connecting screws for adjustment of the cylindrical chamber
always gradually (about 2 rotations). Adjust the working chamber as per diagram,
and fix it that way it rises 3 mm above the bath opening. Refill the bath liquid
only up to 15 mm underneath the bath opening and only at working tempera-
ture and switched-off pump.

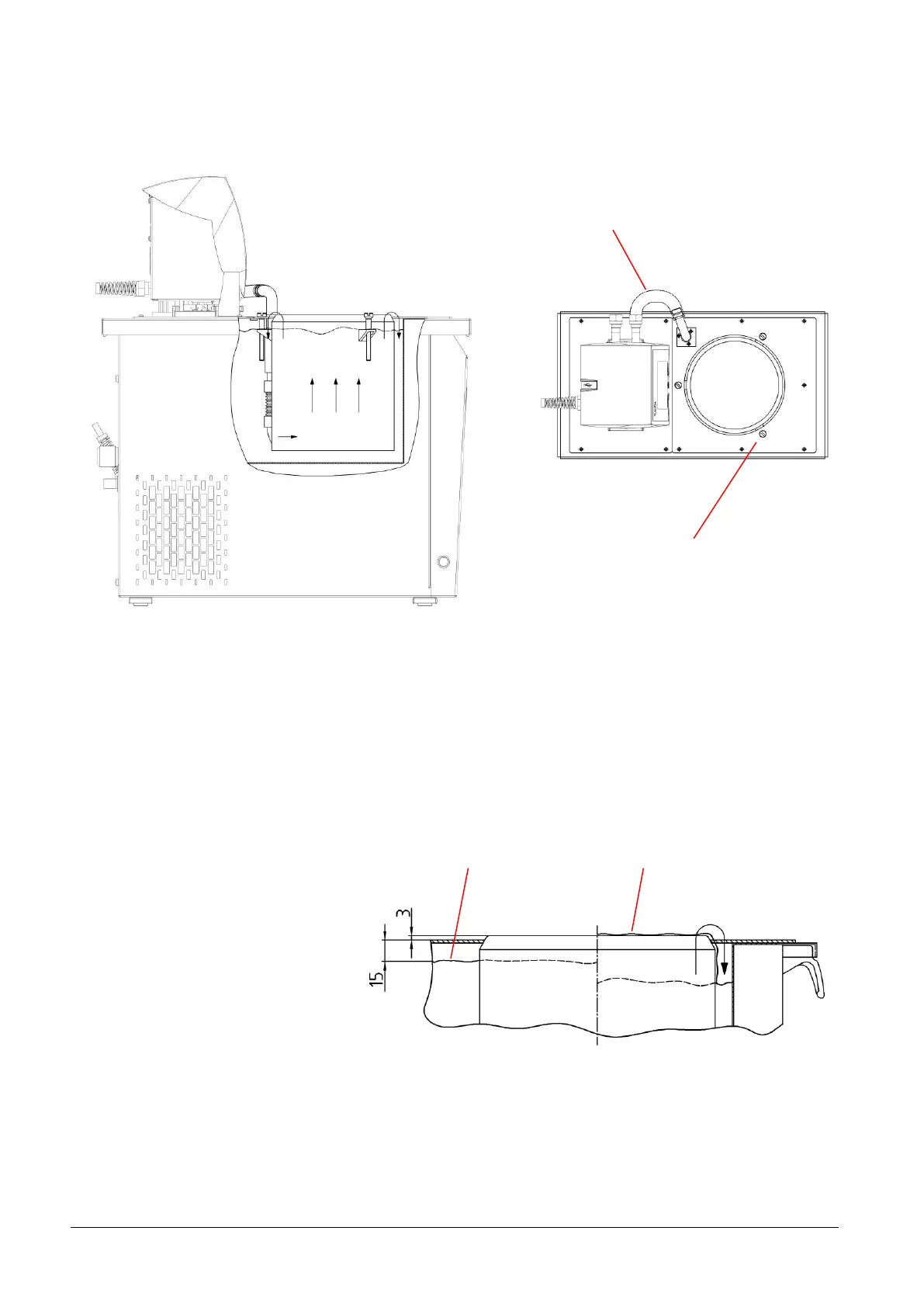

Recommendation for the adjustment of
the cylindrical working chamber
