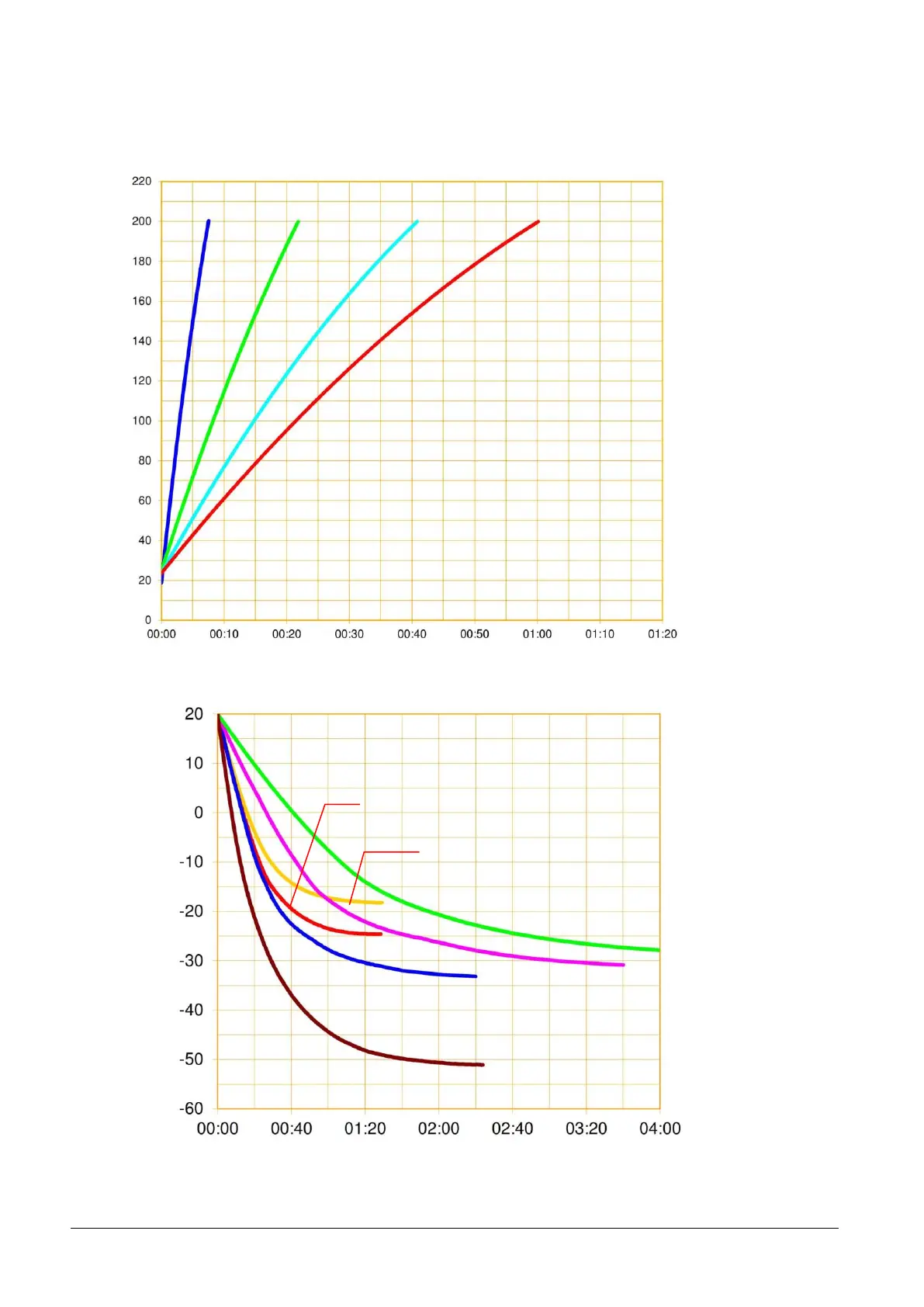

Heating curve for ECO GOLD heating thermostats with stainless steel bath

Cooling curves for ECO cooling thermostats

E 4 G E 10 G E 20 G E 25 G

RE 1050

RE 630

RE 1225

RE 2025

Heat transfer liquid:

Ethanol,

bath closed

Cooling time in h:min

Bath temperature in °C

Heat transfer liquid:

Therm 240,

bath closed

Bath temperature in °C

Heating time in h:min

RE 415 (W)

RE 420
