Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 29

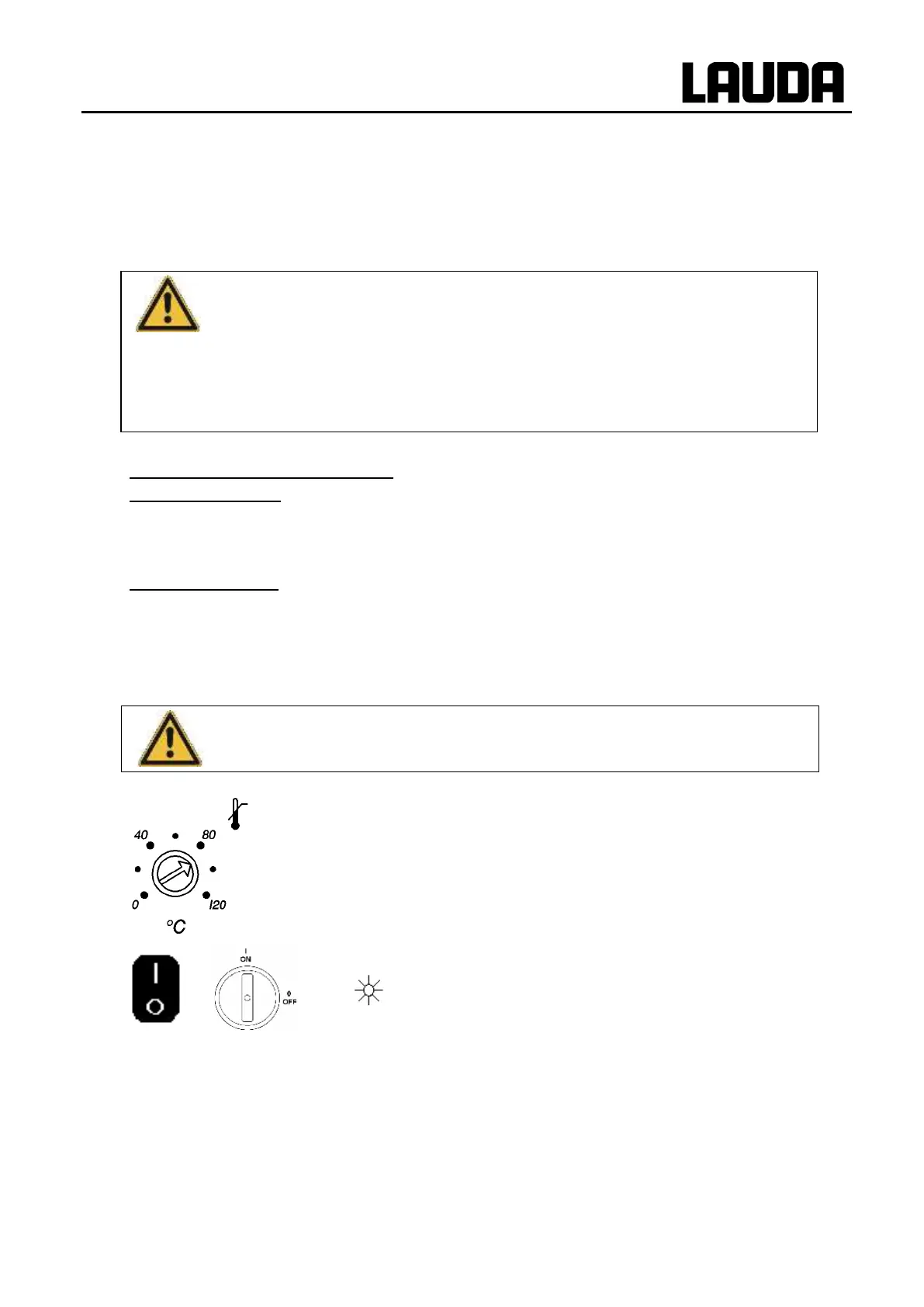

7 Starting up
7.1 Connection to the supply
Compare the information on the equipment label with the supply details.
Connect the equipment only to a socket with a protective earth (PE) connection.
No warranty when the equipment is connected to the wrong supply!
Ensure that the external circuit is properly connected to the pressure connections.
Ensure that the equipment is filled in accordance with Section 6.2!
How to disconnect in emergency cases:
Turn main switch to OFF and pull the main plug.
Note for electric installation on site:
Single-phase devices:
Single-phase devices must be protected with a 16 ampere circuit breaker fitted during installation.
Exception: Devices with 13 ampere UK plugs.
Three-phase devices:
For three-phase devices the rating of the circuit breaker must match the power consumption of the
device. The value will be found on the type plate. In each case, select the next higher value. Using
an excessively high rated circuit breaker is not permissible.
7.2 Switching on
For consumers with a maximum permissible operating pressure below the maximum
pressure of the pump, use a safety valve for protection. This safety valve must be
installed in the outlet of the device.
Using a screwdriver, set the overtemperature switch-
off point to a value clearly above ambient
temperature.
Switch on at the mains switch. The green LED for
“Supply ON” lights up.
A beep sounds for approx. 0.25 sec.
The equipment self-test starts up. All display
segments and symbols light up for approx. 1 sec.
Then the software version (VERx.x) is indicated for
approx. 1 sec.
