Accuracy of the inputs and outputs after calibration is
better than ± 0,1 % full scale
Resolution of the outputs
Temperature < 0,01 % of the range however
not < 0.01 °C
controller output Y 0.1 %
Pressure 0.1 bar
Current inputs input impedance < 100 Ohm
Voltage inputs input impedance > 50 kOhm
Current outputs max. burden 400 Ohm
Voltage outputs min. load 10 kOhm.

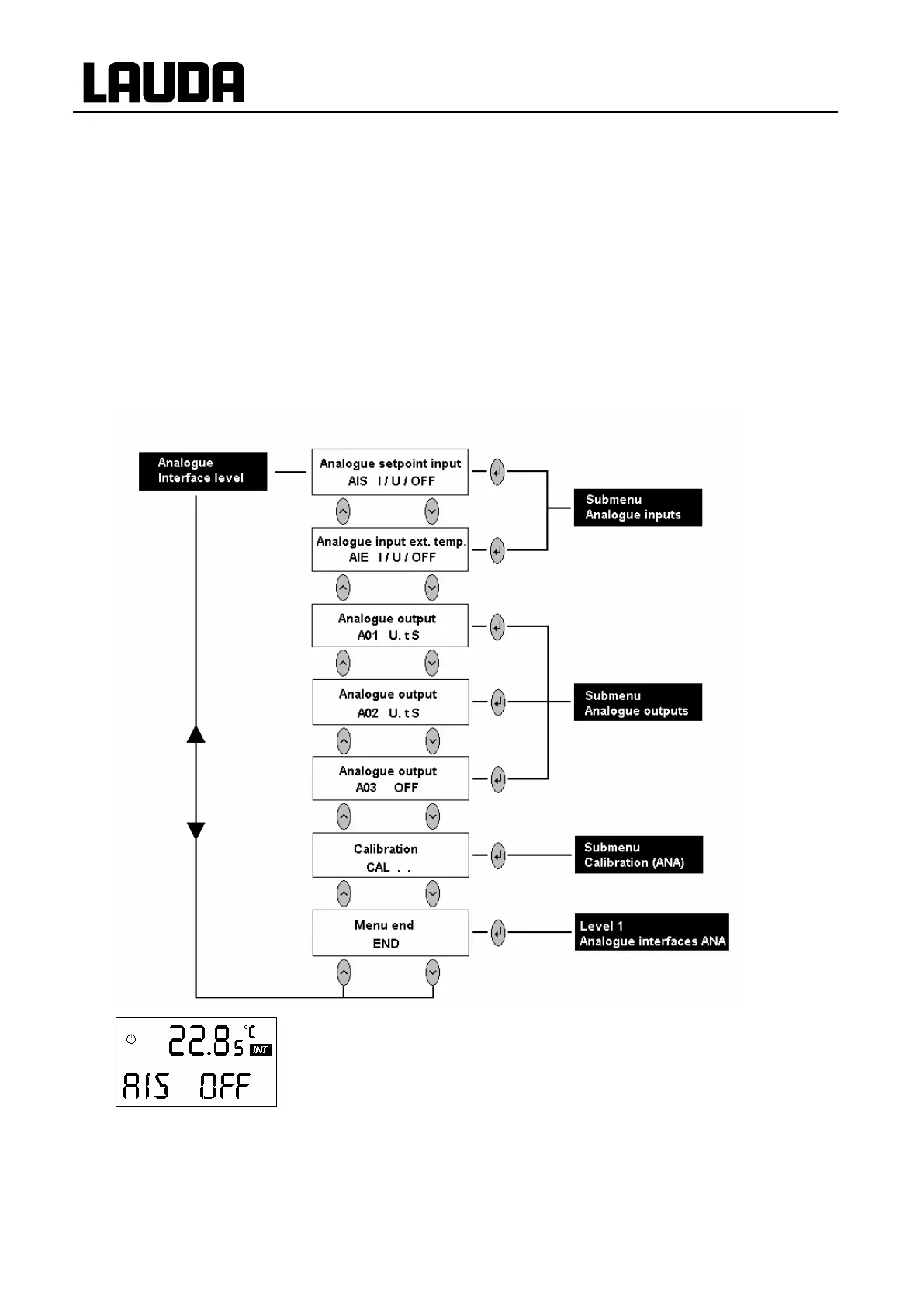

AIS = analogue Input Setpoint
OFF = setpoint input is switched off, i.e. manual value
setting or value set via serial interface is active.
