Making connections
Your Network HDD Recorder has a full set of Input and Output ports for
maximum connection versatility.
Input connection

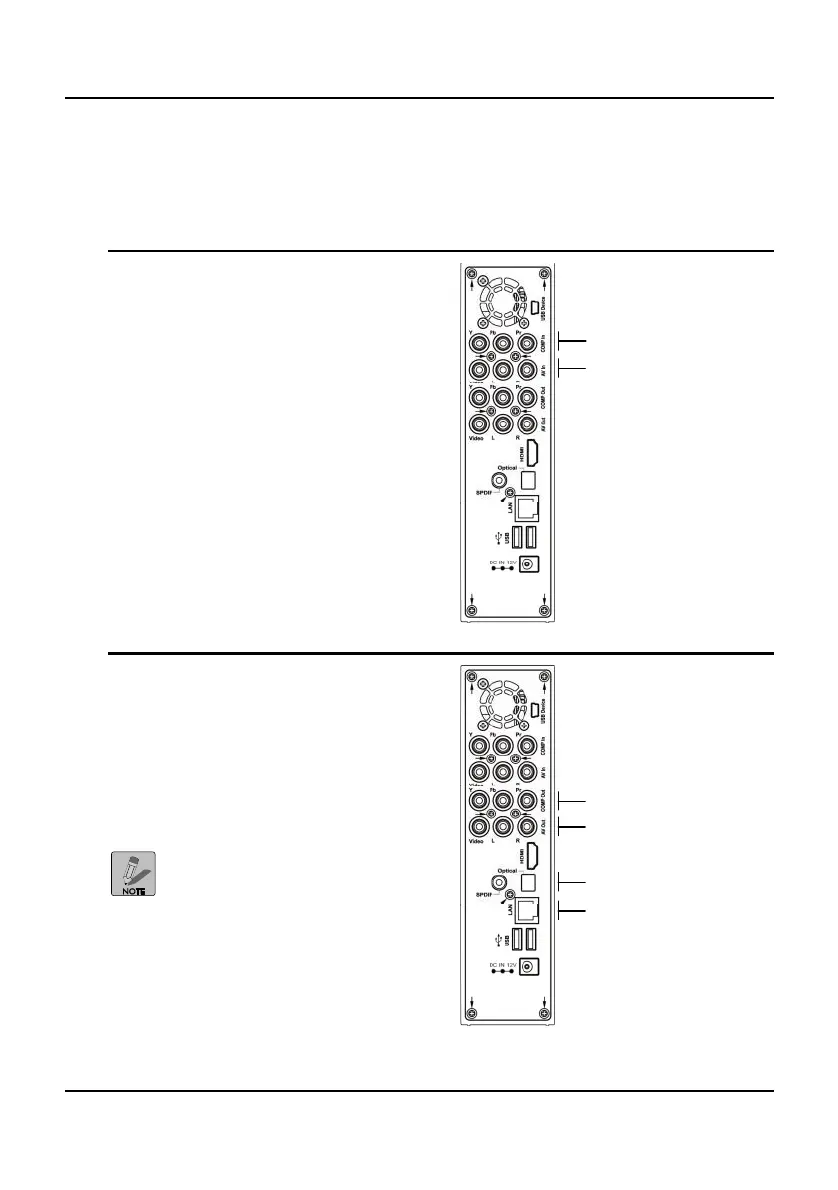

The following diagram demonstrates the
ports used for input connections. Input
devices include DVD players, TV
Box/Set-Top-Box and VHS recorders
(SDTV only).
Output connection
The following diagram demonstrates the
ports used for output connec tions.
Output devices include displays,
projectors and stereos.
The SPDIF jack and optical port
can be used to support high
quality digital sound output.
Sophisticated audio equipment
may only require a connection
through the optical port. Pleas e
refer to your audio devices' user
manual for more details.
Component to DVD
AV to VCR
Component to TV
AV to projector
SPDIF and Optical
LAN to network
