Tel: (86)755-26434369 2 Website: www.leadshine.com
Applications
Suitable for large and medium automation machines and equipments, such as inkjet
printers, engraving machines, electronics manufacturing equipments, special NC
machines, pick and place devices, packing devices, and so on. Particularly adapt to the
applications require high speed, high precision, and low motor noise.
2. Specifications and Operating Environment
Electrical Specifications (T
j
= 25℃/77℉)
ACS606
Parameters
Min. Typical Max. Unit
Peak output current
0 - 15 A
Continue output current
0 - 6 A
Supply voltage
+18 - +60 VDC
Logic signal current
7 10 16 mA
Pulse input frequency
0 - 200 kHz
Isolation resistance
500 MΩ
Current provided to encoder
- - 100 mA
Performance Specifications (with BLM Series Motors)
l Position following error : +/-1 count
l Velocity accuracy: +/-2rpm
l Maximum acceleration speed (No Load) : 80 rpm/ms
2
l Maximum speed : 3000 rpm
l Allowable low speed reaches1 rpm
l Positioning accuracy :+/-1 count
l Suitable for 18 - 60 VDC AC/DC servo motors
A
A
C
C
S
S
6
6
0
0
6
6
D
D
i
i
g
g
i
i
t
t
a
a
l
l
A
A
C
C
S
S
e
e
r
r
v
v
o
o
d
d
r
r
i
i
v
v
e
e
M
M
a
a
n
n
u
u
a
a
l
l
R
R
e
e
v
v
1
1
.
.
0
0
Tel: (86)755-26434369 3 Website: www.leadshine.com

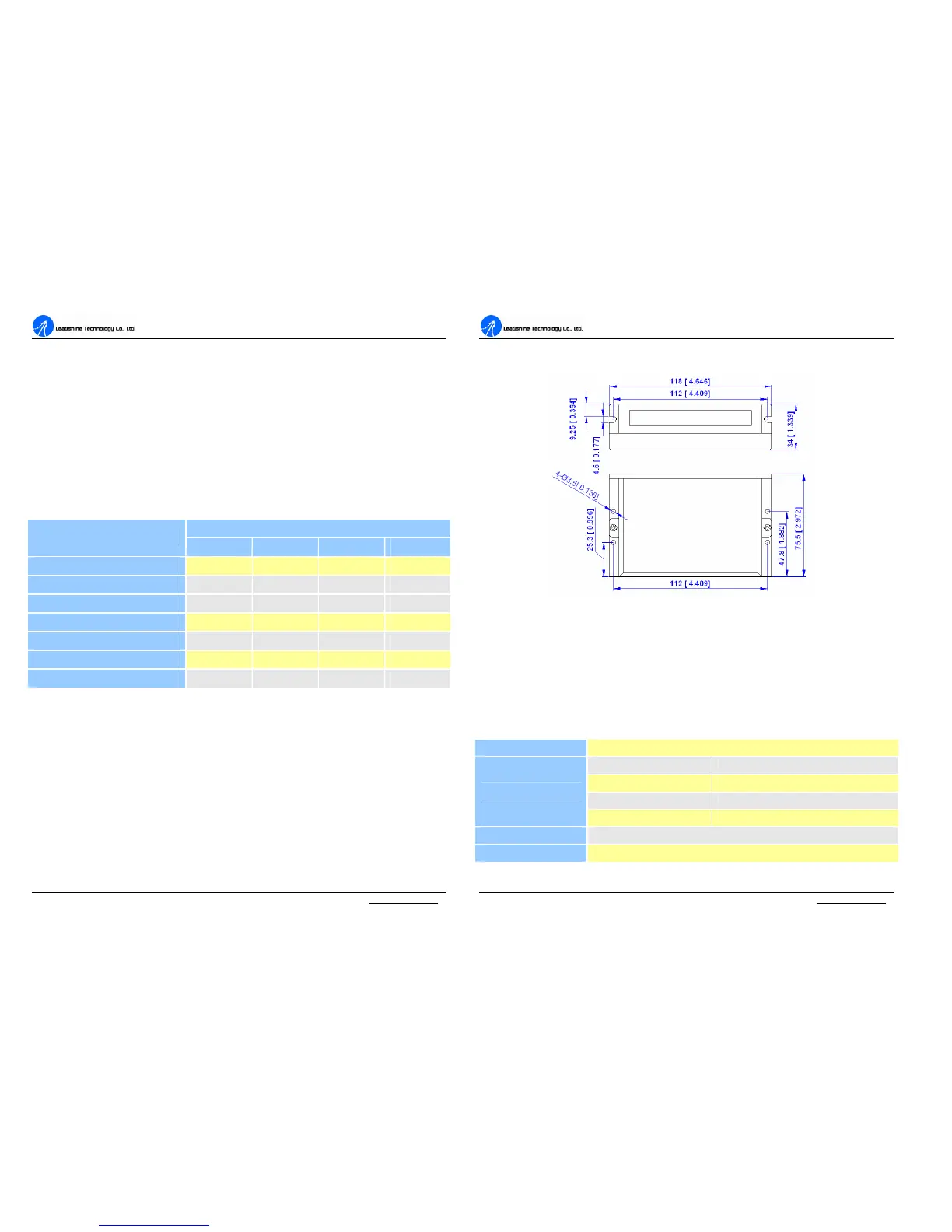

Mechanical Specifications (unit: mm[inch])
Figure 1: Mechanical specifications
Elimination of Heat
l Drive’s reliable working temperature should be <70℃[158℉], and motor
working temperature should be <80℃[176℉].
l It is recommended to mount the drive vertically to maximize heat sink area.
Operating Environment and Parameters
Cooling Natural cooling or Forced cooling
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0℃－50℃ (32℉－122℉)
Humidity
40%RH－90%RH
Operating Environment
