14–17

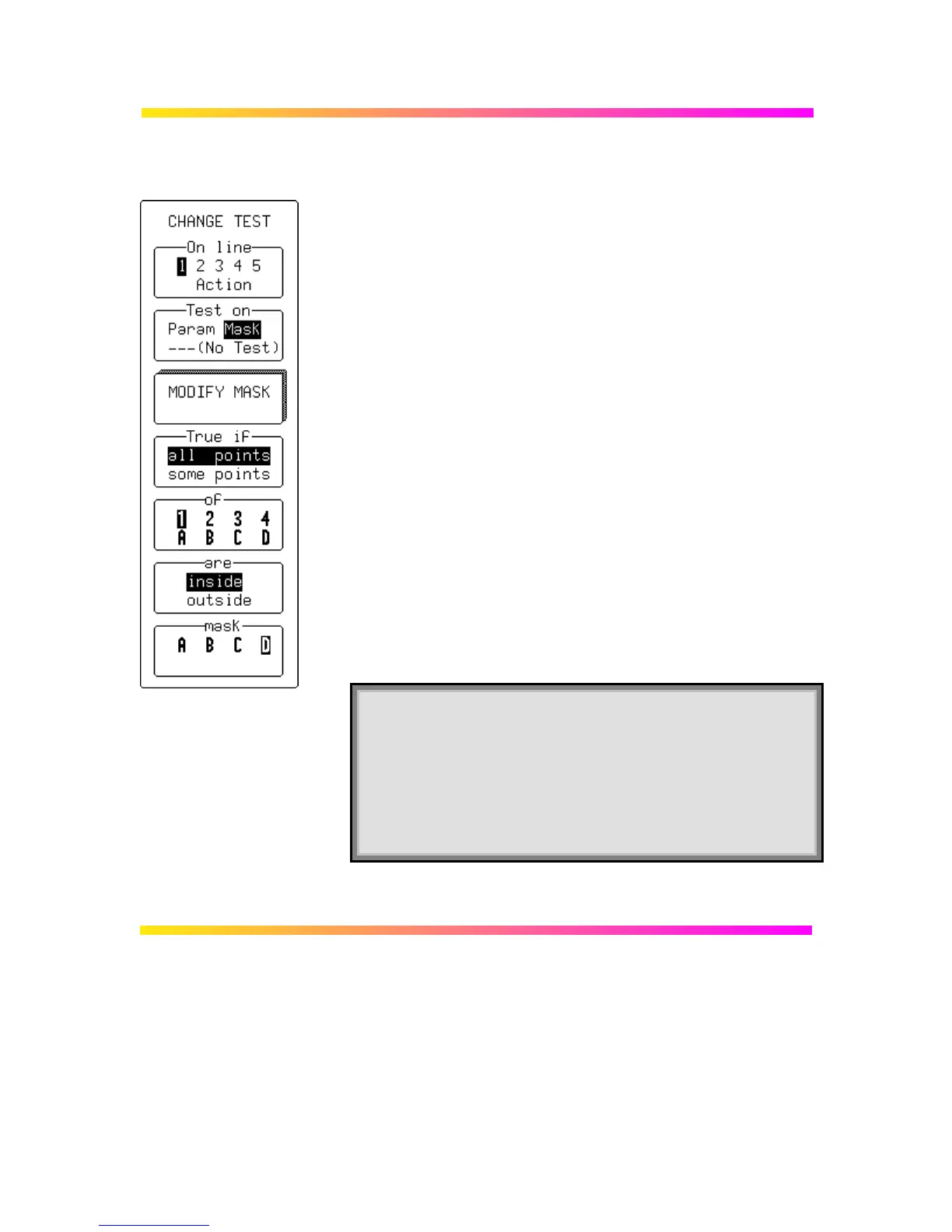

CHANGE TEST — Mask (Changing Pass/Fail Test on a Mask)
On line
To select for modification up to five different parameters, “1, 2, 3, 4
or 5” (“Action” selection, page 14–20).
Test on
For setting to “Mask” or “--- (No Test)” if no test required on the
selected line (“Param” 14–15).
MODIFY MASK
To access the secondary menu for modifying mask settings.
True if
For choosing this mask-test condition.
of
To select channel or trace for testing (four-channel menu shown).
are
For choosing this mask-test condition.
mask
To select mask trace “A”, “B”, “C” or “D”.
Note: Pass/Fail testing against a mask is affected by
horizontal and vertical zooming of the mask trace. The test
will be made inside the area bordered by the parameter
cursors. Timebases of the mask and the trace under test
should be identical. For visual mask testing, a single-grid
display should be used when performing a single-trace
mask test, while a dual- grid display should be used for a
dual-trace test.
