MPC2810 Motion Controller Hardware Manual
19
“FastMoveDemo”demonstrates how to apply T-curve, S-curve
and custom acceleration-deceleration to fast motion when
batching processing.
B. Develop directory: MPC2810 driver programs and functions
storehouse.
a) Sub-directory “Common”: MPC2810 driver program and
functions storehouse;
b) Sub-directory “VB”: Module file MPC2810.bas used for
developing VB execution program
c) Sub-directory “VC”: file used for dynamically loading dynamic
link library(“LoadMPC2810.cpp” and “LoadMPC2810.h”) and
file used for static and dynamic link library (“MPC2810.h”and

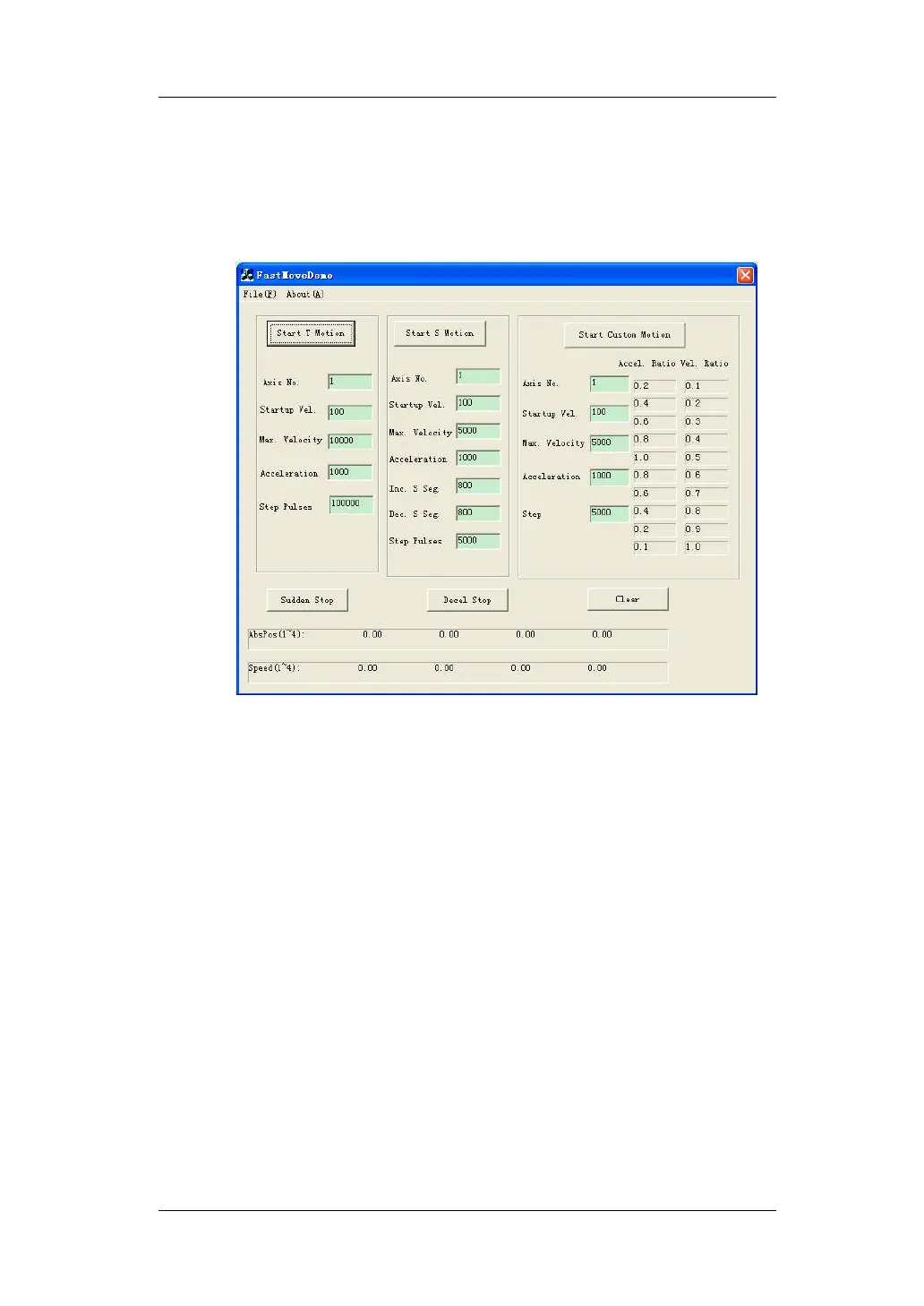

Fig. 2-20 FastMoveDemo window
