To connect to the Intuity Controller, the RS-232 port (J6) of the NX-584 connects to the supplied
HA7000 DB9 Adapter and then to the RS232 port on the HA7000. The pins are as follows:
J6 DB9 -> Cat5
Pin 5 -> Pin 5
Pin 3 -> Pin 3
Pin 2 -> Pin 6
NOTE: The supplied DB9 to RJ45 adapter will require a serial female to female gender
adapter for proper connectivity to the NX-584. Depending on the type of gender adapter
being used, the connection to the NX-584 may be loose. An alternate method of
connection to the NX-584 would be a custom RJ-45 to Female DB9 adapter created using
the pins listed above.
For the DSC Power Series Neo, the TL280 (R) Alarm Panel Communicator is required. The R
revision is important as it contains the correct serial interface that allows for
communication to the Intuity Home Automation System. It is recommended that v5.0 of
the communicator is installed. The TL280 (RE) is also compatible but requires additional
changes in the setup.

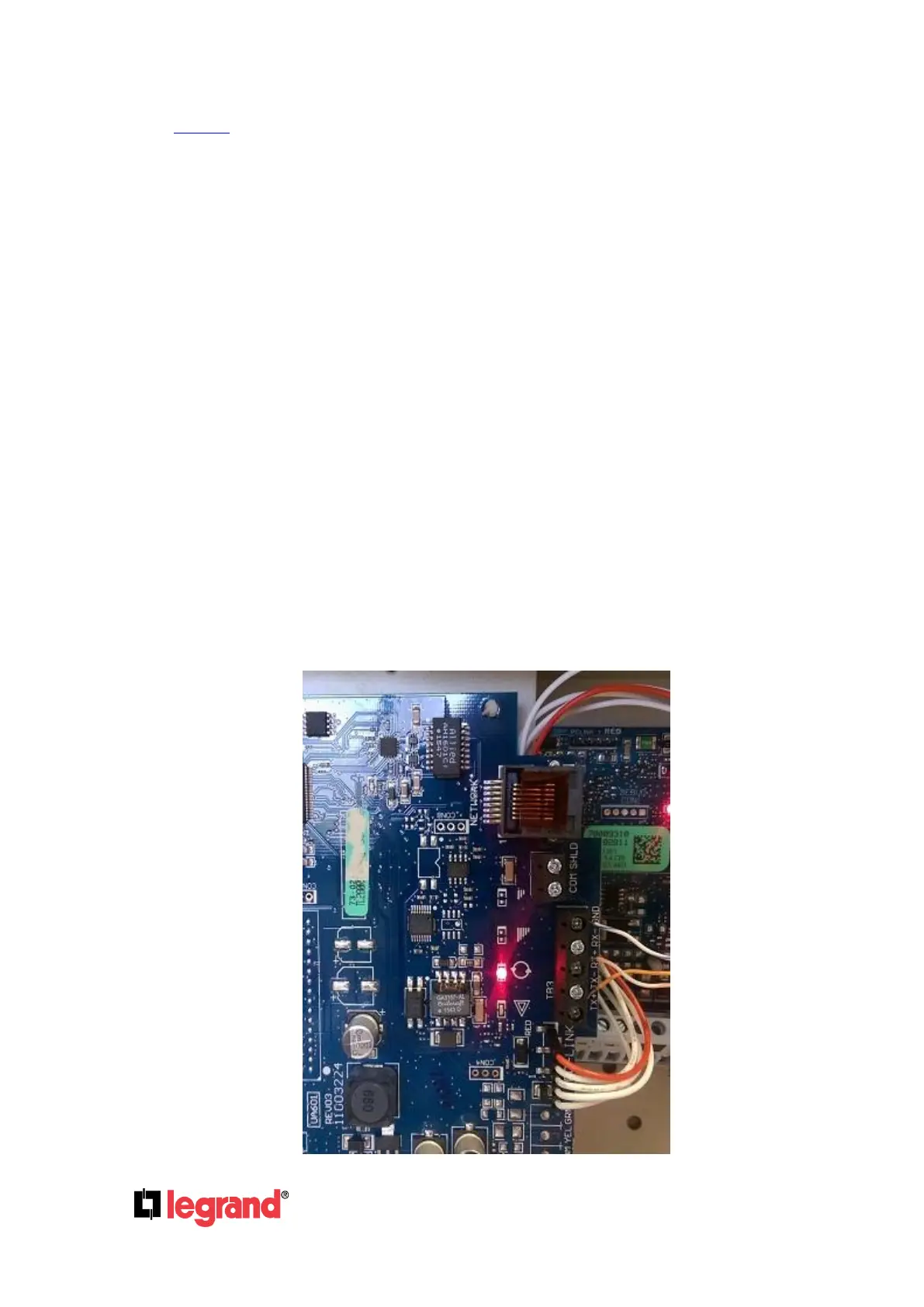

A CAT5 cable MUST be terminated using the 568A standard. The White/Blue will connect to the
GND terminal on the TL280(R). The White/Orange will connect to the RX+ terminal and the
Orange will connect to the TX+ terminal.
