Leica DM2000, Software
24
4.3 Acquisition of Scan Data

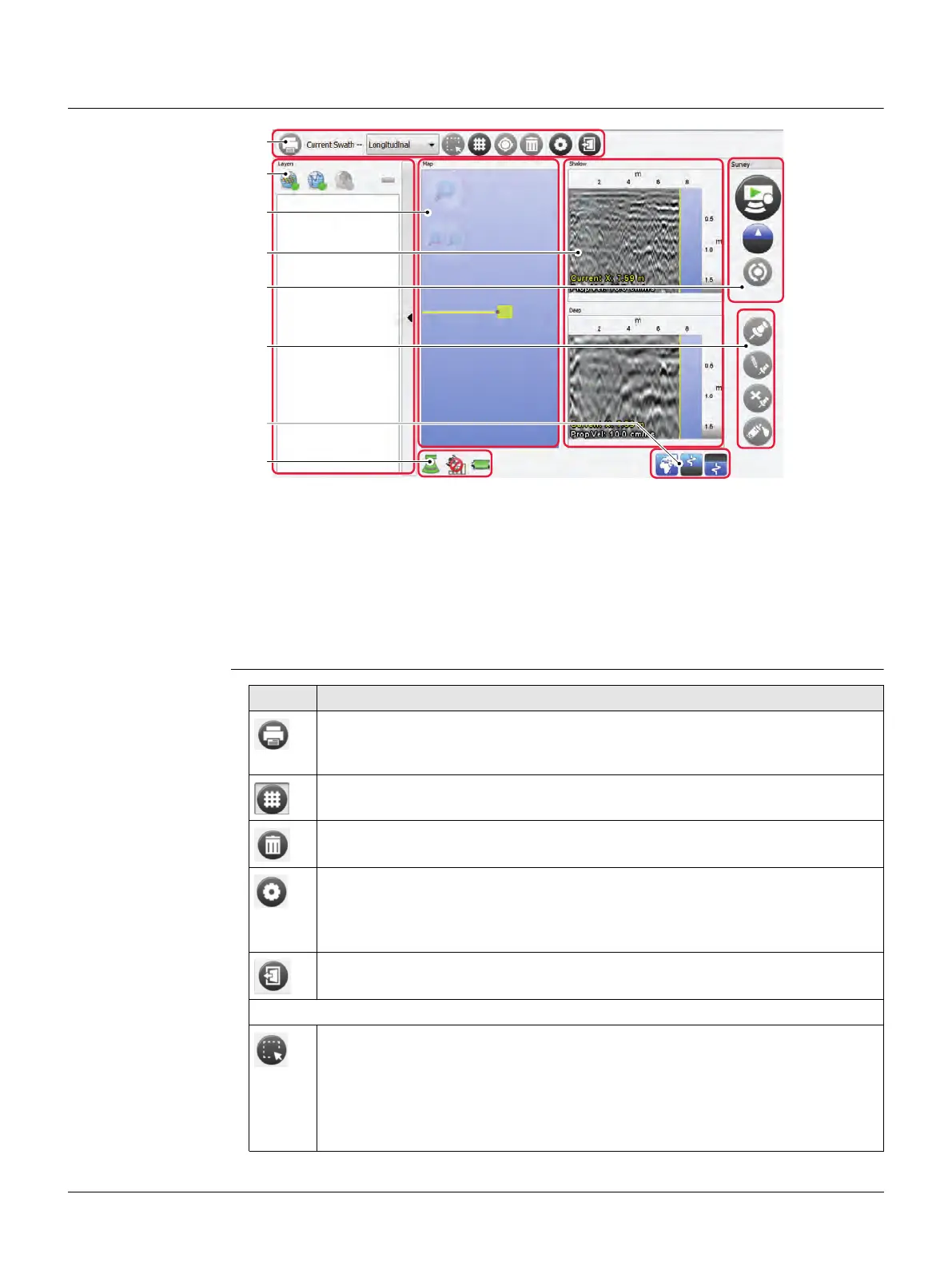

4.3.1 The Acquisition Screen
Elements of the
Acquisition screen
Acquisition Menu
a) Acquisition Menu
b) Layers Section
c) Map Section
d) Radargrams (Shallow and Deep)
e) Acquisition Commands
f) Target Commands
g) Menu for Visualisation of Maps and Radargrams
h) System Status
012336_001
a
b
d
e
c
h
f
g
Button Description
Click this button to open the Survey Report dialogue for generating a report
of the scan data. For a detailed description, refer to "4.3.6 Generating a
Survey Report".
Click this button to display or hide the grid on the radargrams.
Click this button to delete the last acquired scan data.
Click this button to view the current settings.
The Survey Settings and Hardware Settings cannot be changed
from within a project. To change these settings, return to the main
menu and click the Settings button.
Click this button to close the current project and return to the main menu.
The following buttons are only available for the New Assisted Project function.
Click this button to activate the “Scan Line Selection” mode.
To select a single scan line on the defined grid, click a line while this mode
is active.
To select several lines, click and drag to create a selection frame over the
lines.
This function is available before starting an acquisition.
