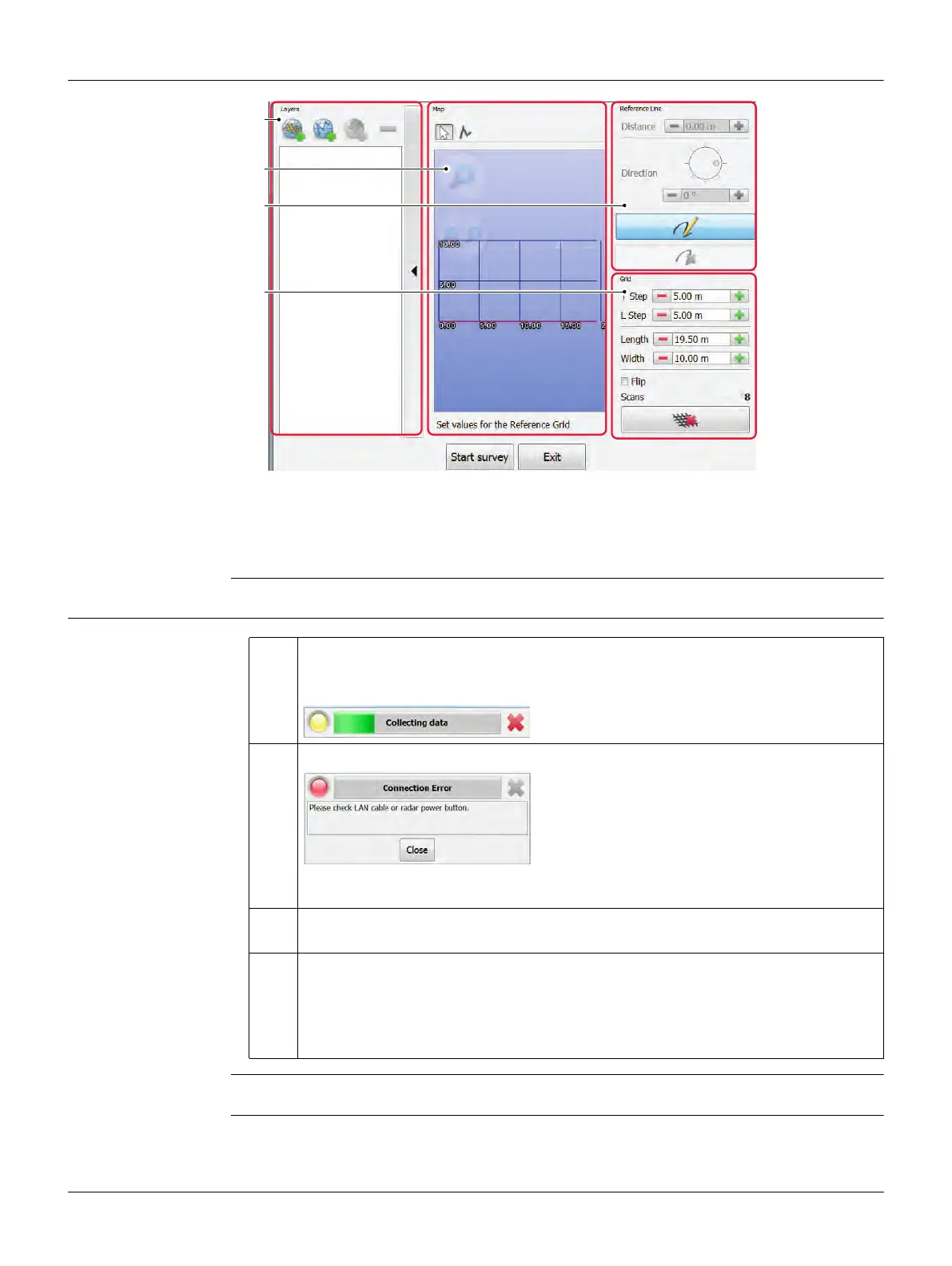

4.3.2 The Assisted Project Setup Screen
Elements of the
Assisted Project
Setup screen
4.3.3 Data Acquisition with the New Project Function
Starting an acquisi-
tion
The length of a single scan must not exceed 800 m.
a) Layers section
b) Map section
c) Reference Line section
d) Grid section
012390_001
a
b
d
c
1. Click the New Project button in the main menu.
The software starts calibrating the radar. A dialogue box shows the progress
of the calibration.
If the radar calibration fails, the following dialogue box is displayed.
Ensure that the Ethernet cable is connected properly to the laptop/tablet and
that the control unit is turned on.
If one of the radar channels does not work, an error screen indicates the faulty
channel.
2. As soon as the radar calibration is complete, the Acquisition screen is
displayed.
Use the acquisition commands to start and stop the acquisition of scan data.
For a detailed description of these and other available functions, refer to
"4.3.1 The Acquisition Screen".
