4.4 Review of Scan Data
4.4.1 The Review Acquisition Screen
Elements of the
Review Acquisition
screen
Functions within
the Review Acquisi-
tion screen
Radargrams
The general functions of the radargrams are the same as for the Acquisition screen.
(Refer to " Map section and radargrams" within "4.3.1 The Acquisition Screen").
Target Commands
These commands are the same as for the Acquisition screen, except that the button
for marking a target on the ground is not available. (Refer to " Target Commands"
within "4.3.1 The Acquisition Screen").
Review Acquisition
Menu

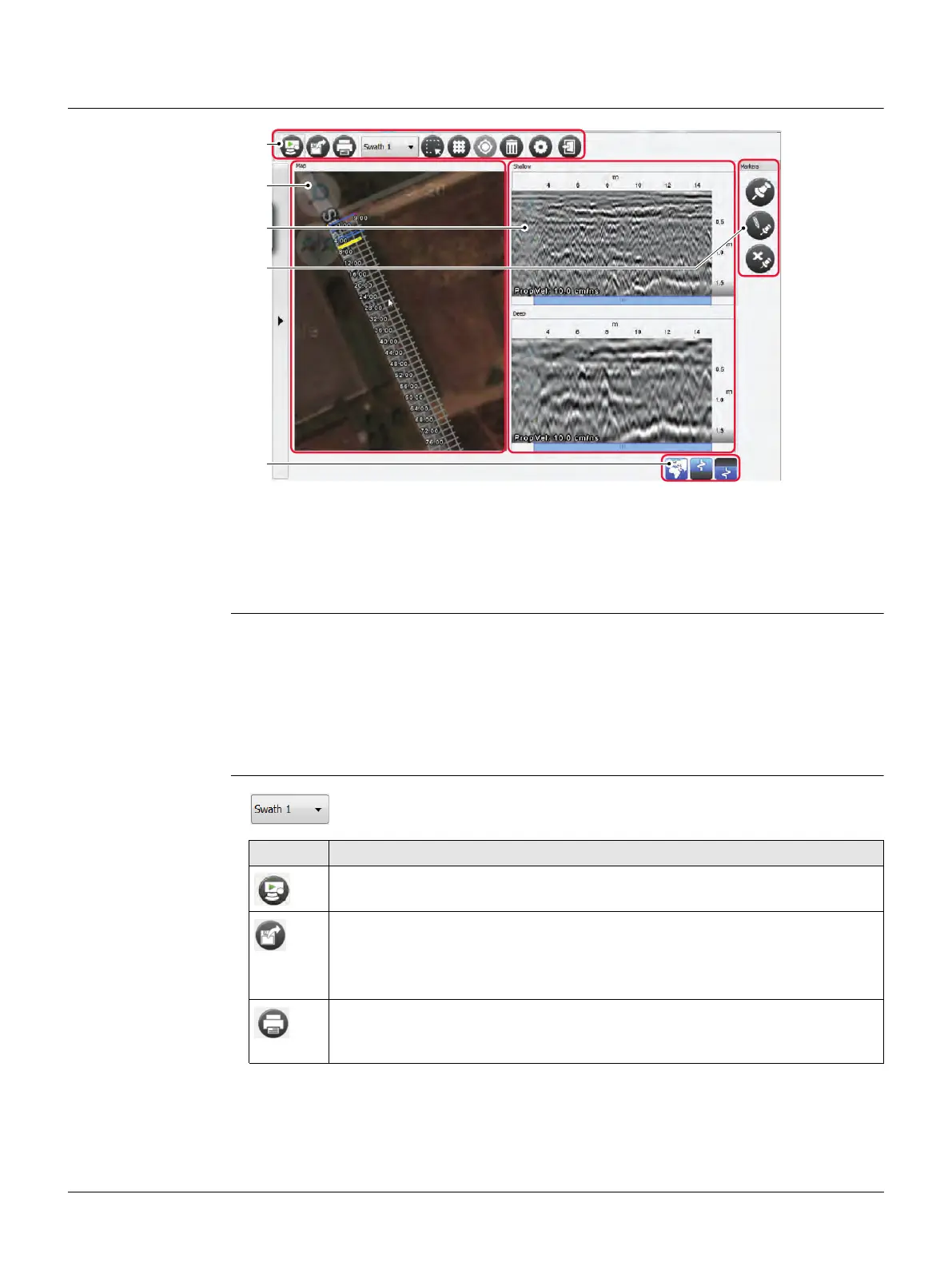

a) Review Acquisition Menu
b) Map Section
c) Radargrams (Shallow and Deep)
d) Target Commands
e) Menu for Visualisation of Maps and Radargrams
012401_001
a
b
d
c
e
Use the drop-down menu to switch between the single scans of
the survey.
Button Description
Click this button to start data acquisition in order to resume the saved
survey, for example when lines are missing.
Click this button to export targets to one of the following file formats:
• dat
• shp
• dxf
Click this button to open the Survey Report dialogue for generating a
report of the scan data. For a detailed description, refer to "4.3.6 Gener-
ating a Survey Report".

Leica DS2000 Specifications

General

Type	Ground Penetrating Radar (GPR)
Manufacturer	Leica Geosystems
Protection Class	IP65
Data Output	USB
Positioning	GNSS
Data Acquisition	Real-time
Data Storage	Internal SSD
