Leica DM2000, Software
25
List of maps within
the Layers section
To visualise the scan lines and the targets on these lines, you can load one ore more
maps from a saved file or from the internet. The loaded maps are displayed as layers
in the Map section.
Map section and
radargrams
Click this button to open the Starting Point Editor dialogue. This dialogue
allows modifying the starting point of the next acquisition in relation to the
defined grid. For a detailed description, refer to " Starting Point Editor".
This function is available before starting an acquisition.

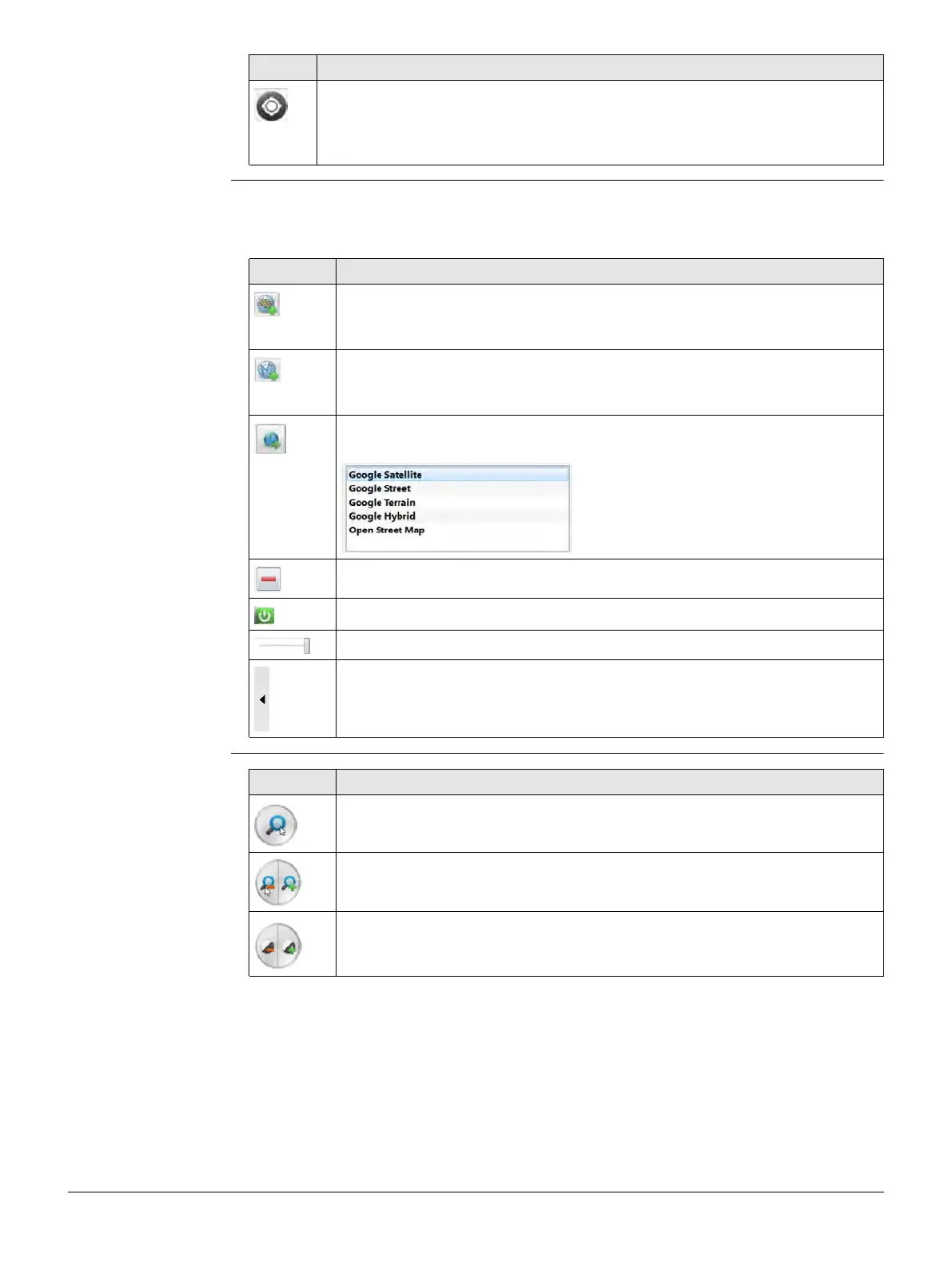

Button Description
Button Description
Click this button to load a saved map in the raster graphics format. The
file format should be TIF or TIFF.
Ensure that you load a map of the area that is currently scanned.
Click this button to load a saved map in the vector graphics format. The
file format should be SHP, KML or DXF.
Ensure that you load a map of the area that is currently scanned.
Click this button to load a map from the internet. The following maps are
available for download:
Click this button to remove a loaded map from the list.
Click this button to hide a layer in the Map section.
Drag the slider to change the transparency of a layer in the Map section.
Click this button to display or hide the Map section.
Button Description
Click this button to display the Map section or a radargramm at its full
extent.
Click this button to zoom in or out.
Only for the radargrams:
Click this button to increase or reduce the contrast of the radargram.
