7-6 Maintenance
7.3.6 Adjust the Ultrasonic Sensor Height
The ultrasonic sensor must be at the same height as the centre of the top
tube of the feed fence.
Preparation
1. Take the machine out of operation.
2. Manually drive the machine to a location parallel to the feeding fence.
Adjust the angle of the ultrasound sensor
1. Support the ultrasonic sensor manually.
2. Loosen nut (1) (see figure 26 on page 7-6).
3. Put the ultrasonic sensor arm in the correct angle (maximum angle of 60°).
4. Tighten the nut (1).

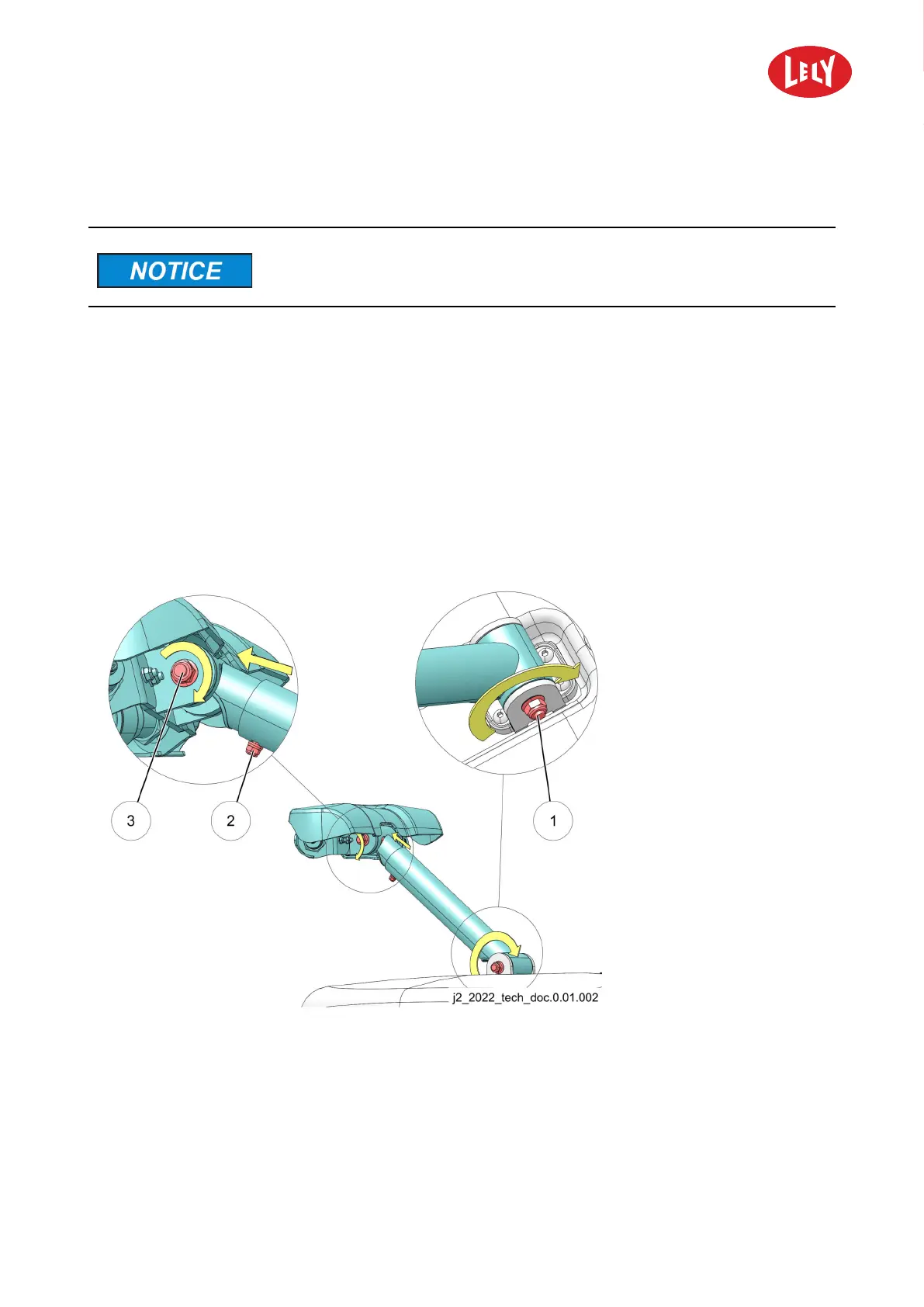

Figure 26. Ultrasound sensor adjustment
