4.3.3.4 Induction Sensors
Display
Description

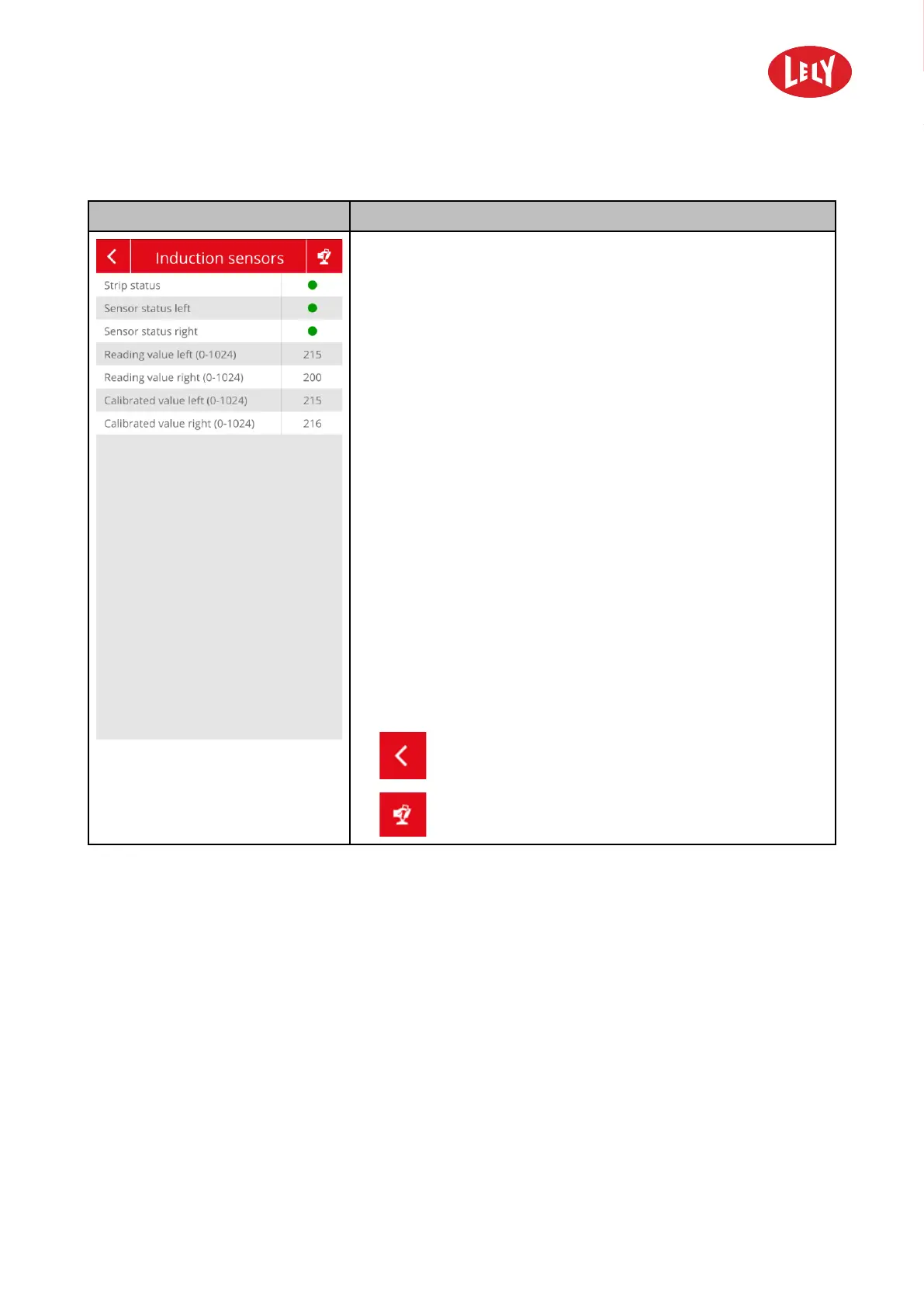

The menu Induction sensors gives actual status information about
the left and right induction sensor.
• Strip status: the status indicator turns to green when the
induction sensors detect a strip on the floor. This happens if
both induction sensors read a value less than 700.
• Sensor status left: the status indicator turns to green when
the left induction sensor detects a strip on the floor. This
happens if the left sensor reads a value less than 700.
• Sensor status right: the status indicator turns to green when
the right induction sensor detects a strip on the floor. This
happens if the right sensor reads a value less than 700.
• Reading value left (0 - 1023):
• 1023: no strip detection.
• 0: maximum strip detection.
• Reading value right (0 - 1023):
• 1023: no strip detection.
• 0: maximum strip detection.
• Calibrated value left.
• Calibrated value right.
Buttons
•
to return to the menu Testing.
•
to enter the menu Manual control.
