Connector and cable guide
This topic provides information to help Lenovo authorized service technicians identify connectors and cables
for replacement purpose. To view each FRU and the exploded illustration of the computer, see “Major FRUs
and CRUs” on page 54 and “LCD FRUs and CRUs” on page 56.
Note: Depending on your computer model, some connectors or cables might not be available.

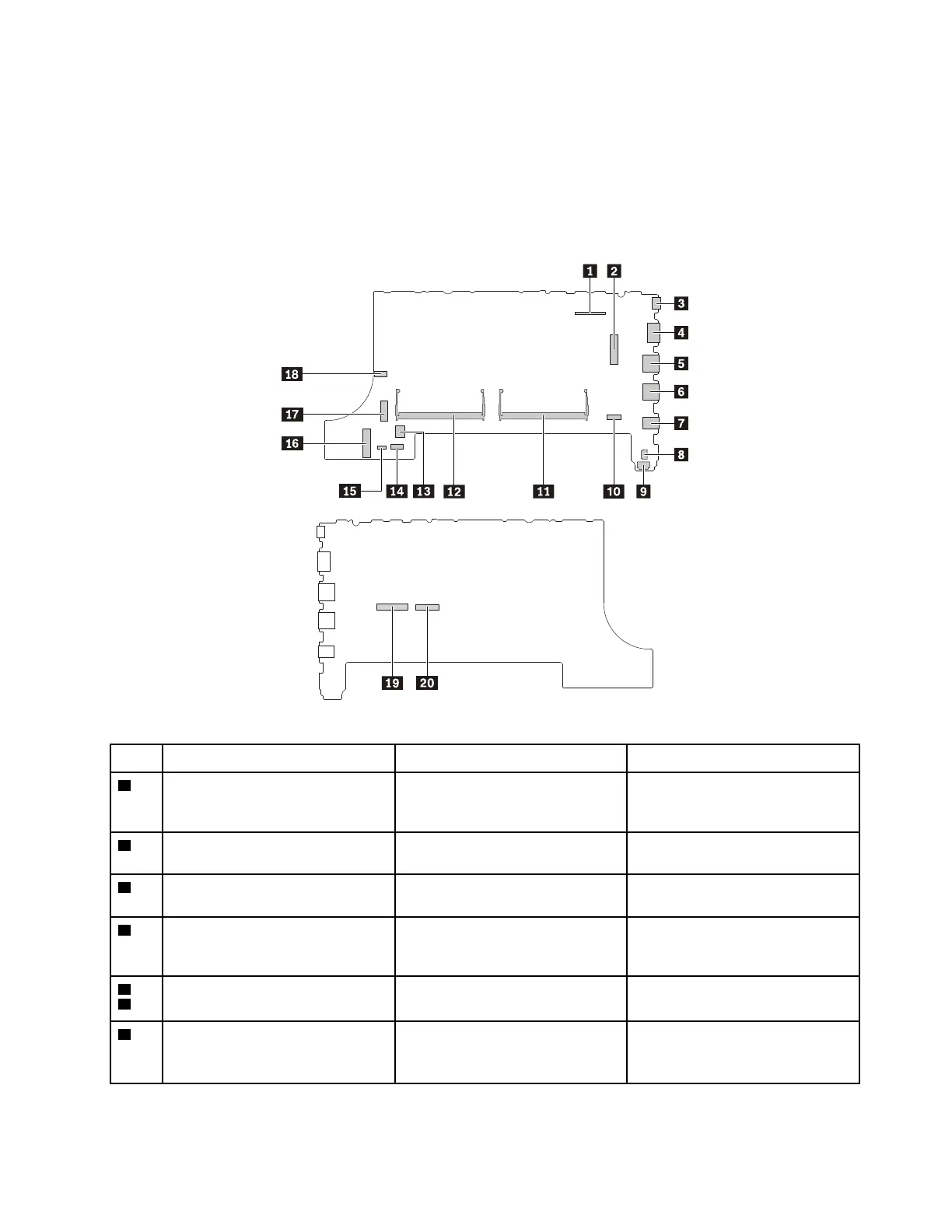

System board connectors and cables
Table 10. System board connector and cable guide
Item
Connector (location)
Internal cable required
Cable connection
1
LCD connector (internal) LCD cable Connect one end to the LCD panel
and the other end to this
connector.
2
Wireless-LAN card slot (internal)
No Insert the wireless-LAN card into
this slot.
3
USB-C connector (external) No Connect a USB-C compatible
device to this connector.
4
HDMI connector (external) No Connect a compatible digital audio
device or video monitor to this
connector.
5
6
USB 3.1 Gen 1 connector
(external)
No
Connect USB-compatible devices
to this connector.
7
Audio connector (external) No Connect headphones or a headset
with 3.5-mm (0.14-inch) 4-pole
plug to this connector.
Chapter 7. Locations 57
