2040 Camera/microphone module and the LCD cable
For access, remove these FRUs in order:
• “1150 LCD unit” on page 88
• “2010 LCD bezel” on page 89
• “2020 LCD panel” on page 90
• “2030 LCD hinges” on page 91

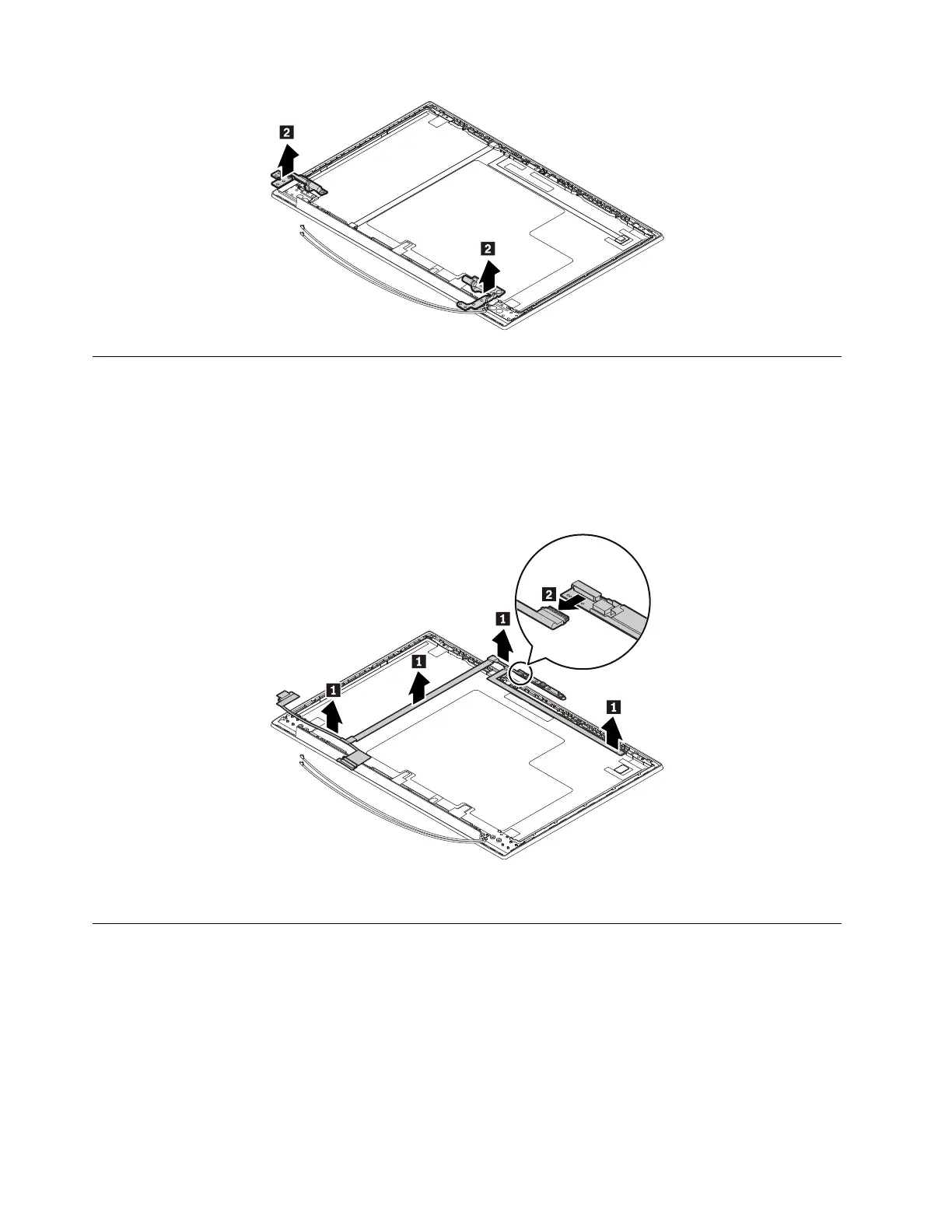

Removal steps of the camera/microphone module and the LCD cable
When installing: Ensure that the connector is attached firmly.
2050 Wireless LAN assembly and LCD cover assembly
For access, remove these FRUs in order:
• “1150 LCD unit” on page 88
• “2010 LCD bezel” on page 89
• “2020 LCD panel” on page 90
• “2030 LCD hinges” on page 91
• “2040 Camera/microphone module and the LCD cable” on page 92
92
ThinkPad E580 and E585 Hardware Maintenance Manual
