• Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper
handling can cause damage and permanent loss of data.
• Before removing the drive, have the user make a backup copy of all the information on it if possible.
• Never remove the drive while the computer is operating or is in suspend mode.

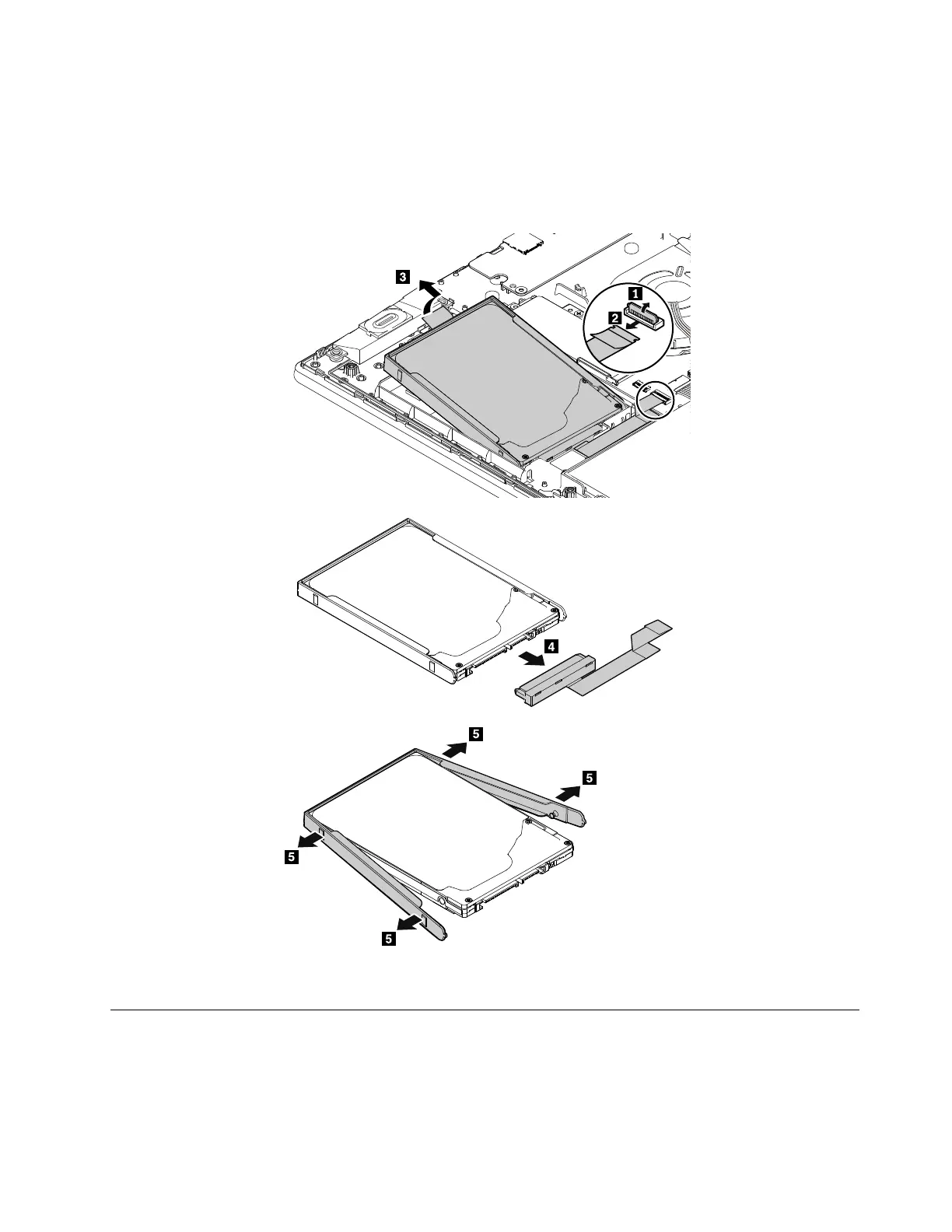

Removal steps of the internal storage drive
When installing: Ensure that the hard disk drive assembly or solid-state drive assembly is attached firmly.
1070 Wireless LAN card
For access, remove these FRUs in order:
• “1010 Base cover assembly” on page 69
Chapter 9. Removing or replacing a FRU 75
