When installing: Ensure that the LCD connector is attached firmly.
2030 LCD hinges
For access, remove these FRUs in order:
• “1150 LCD unit” on page 88
• “2010 LCD bezel” on page 89
• “2020 LCD panel” on page 90

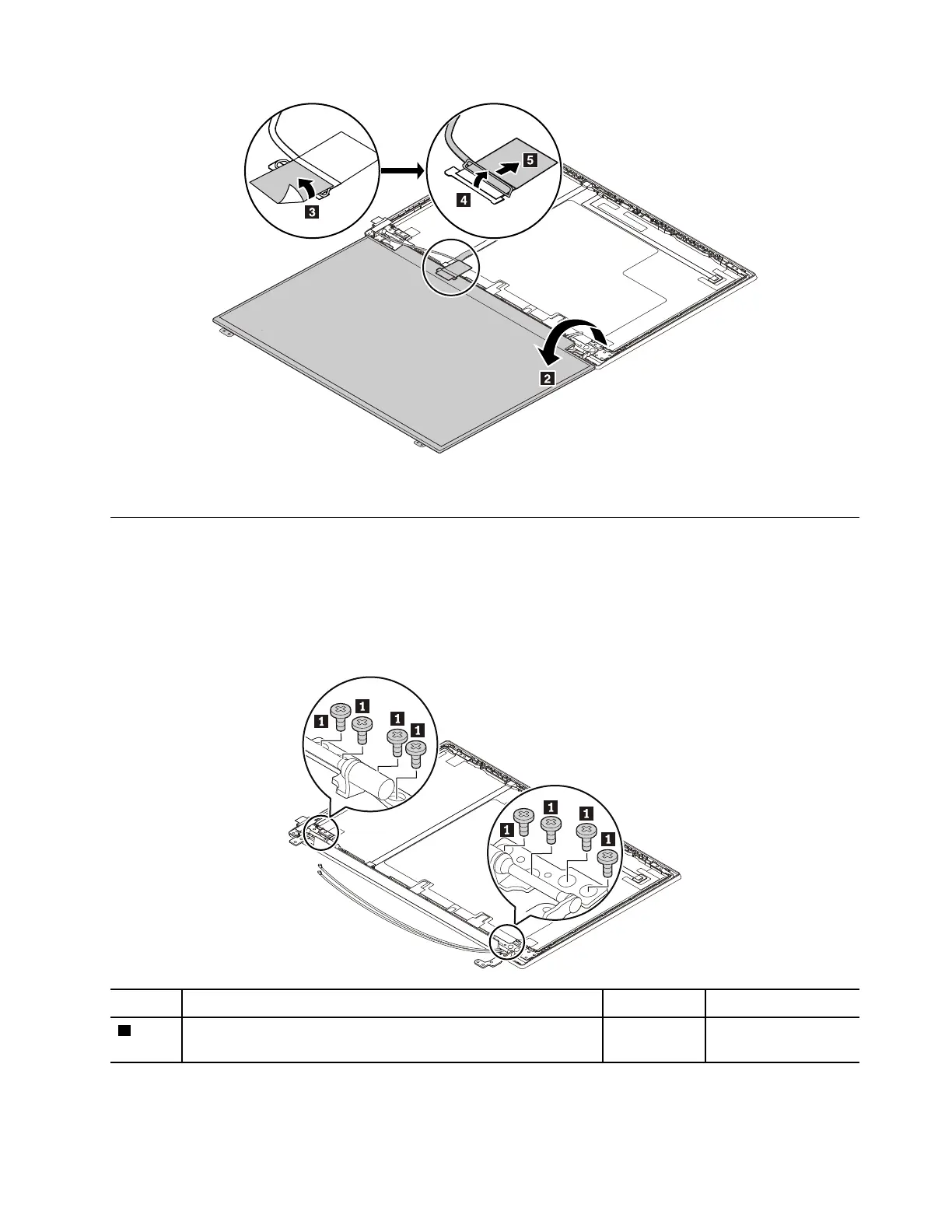

Removal steps of the LCD hinges
Step Screw (quantity) Color
Torque
1
M2 × 3 mm, wafer-head, nylon-coated (8)
Black 0.392 Nm
(4 kgf-cm)
Chapter 9. Removing or replacing a FRU 91
